3.2.5 L2TP
Select L2TP (Layer 2 Tunneling Protocol) if your ISP uses an L2TP
connection. The L2TP connects your router to a L2TP server.
For Example：
A corporate branch and headquarter can use this connection type to
implement mutual and secure access to each other’s resources.

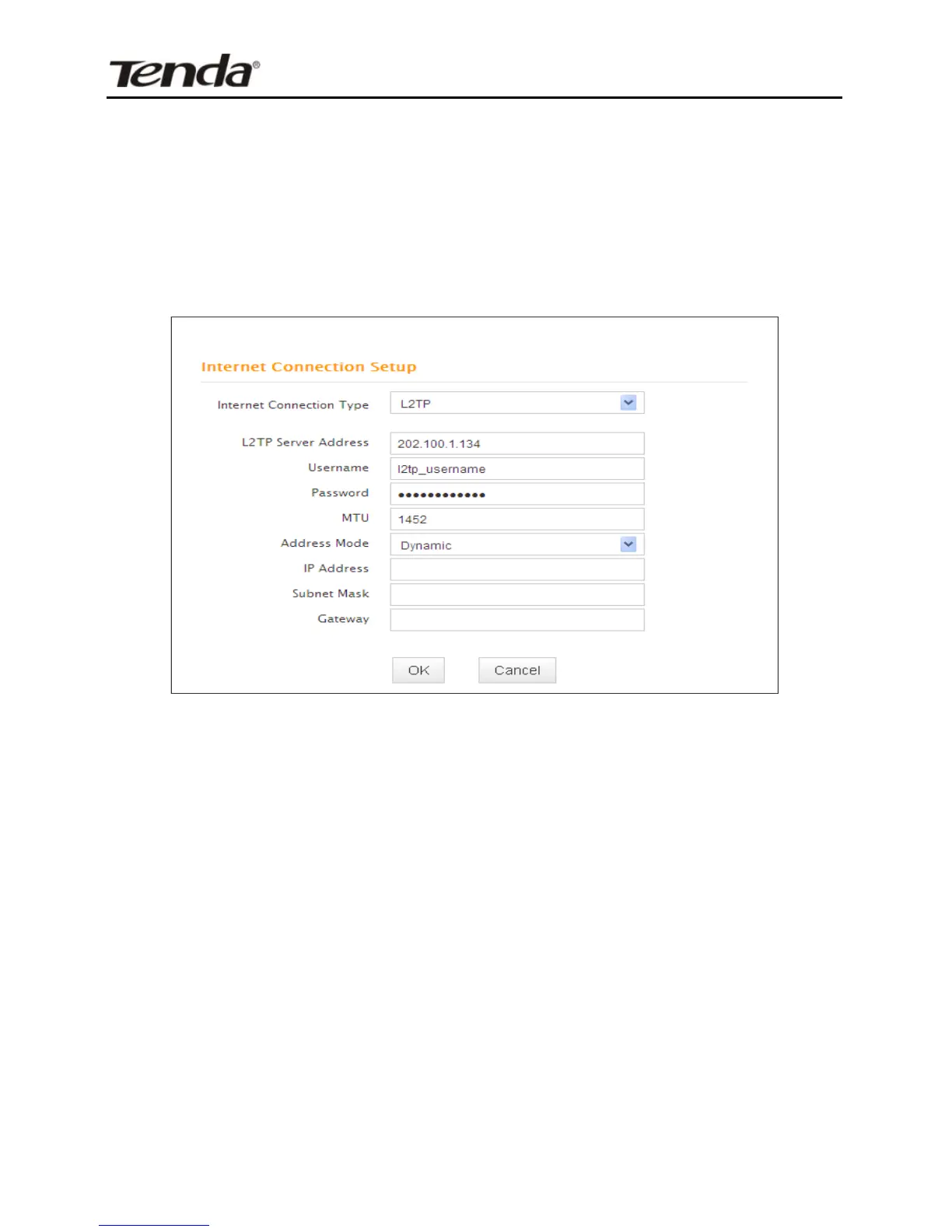

1. Internet connection Type: Displays the current Internet
connection type.
2. L2TP Server Address: Enter the IP address of a L2TP server.
3. User Name: Enter your L2TP username.
4. Password: Enter the password.
5. MTU: Maximum Transmission Unit. DO NOT change it from the
factory default of 1492 unless instructed by your ISP. You may
need to change it for optimal performance with some specific
websites or application software that cannot be opened or
enabled; in this case, try 1450, 1400, etc.
6. Address Mode: Select "Dynamic" if you don’t get any IP info
from your ISP, otherwise select "Static". Consult your ISP if you
are not clear.
