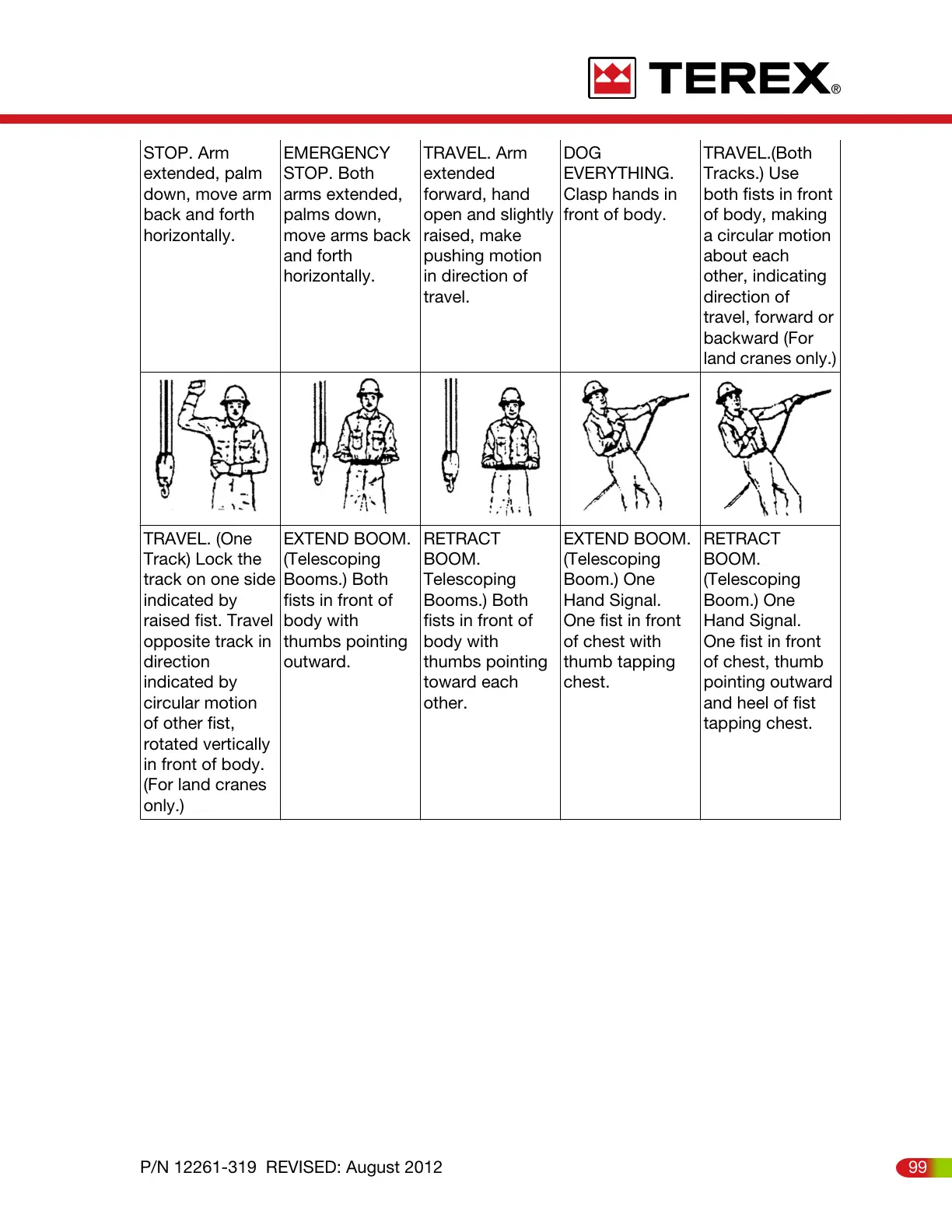

STOP. Arm
extended, palm
down, move arm
back and forth
horizontally.
EMERGENCY
STOP. Both
arms extended,
palms down,
move arms back
and forth
horizontally.
TRAVEL. Arm
extended
forward, hand
open and slightly
raised, make
pushing motion
in direction of
travel.
DOG
EVERYTHING.
Clasp hands in
front of body.
TRAVEL.(Both
Tracks.) Use
both fists in front
of body, making
a circular motion
about each
other, indicating
direction of
travel, forward or
backward (For
land cranes only.)
TRAVEL. (One
Track) Lock the
track on one side
indicated by
raised fist. Travel
opposite track in
direction
indicated by
circular motion
of other fist,
rotated vertically
in front of body.
(For land cranes
only.)
EXTEND BOOM.
(Telescoping
Booms.) Both
fists in front of
body with
thumbs pointing
outward.
RETRACT
BOOM.
Telescoping
Booms.) Both
fists in front of
body with
thumbs pointing
toward each
other.
EXTEND BOOM.
(Telescoping
Boom.) One
Hand Signal.
One fist in front
of chest with
thumb tapping
chest.
RETRACT
BOOM.
(Telescoping
Boom.) One
Hand Signal.
One fist in front
of chest, thumb
pointing outward
and heel of fist
tapping chest.
