Terex RT200-1 User Manual

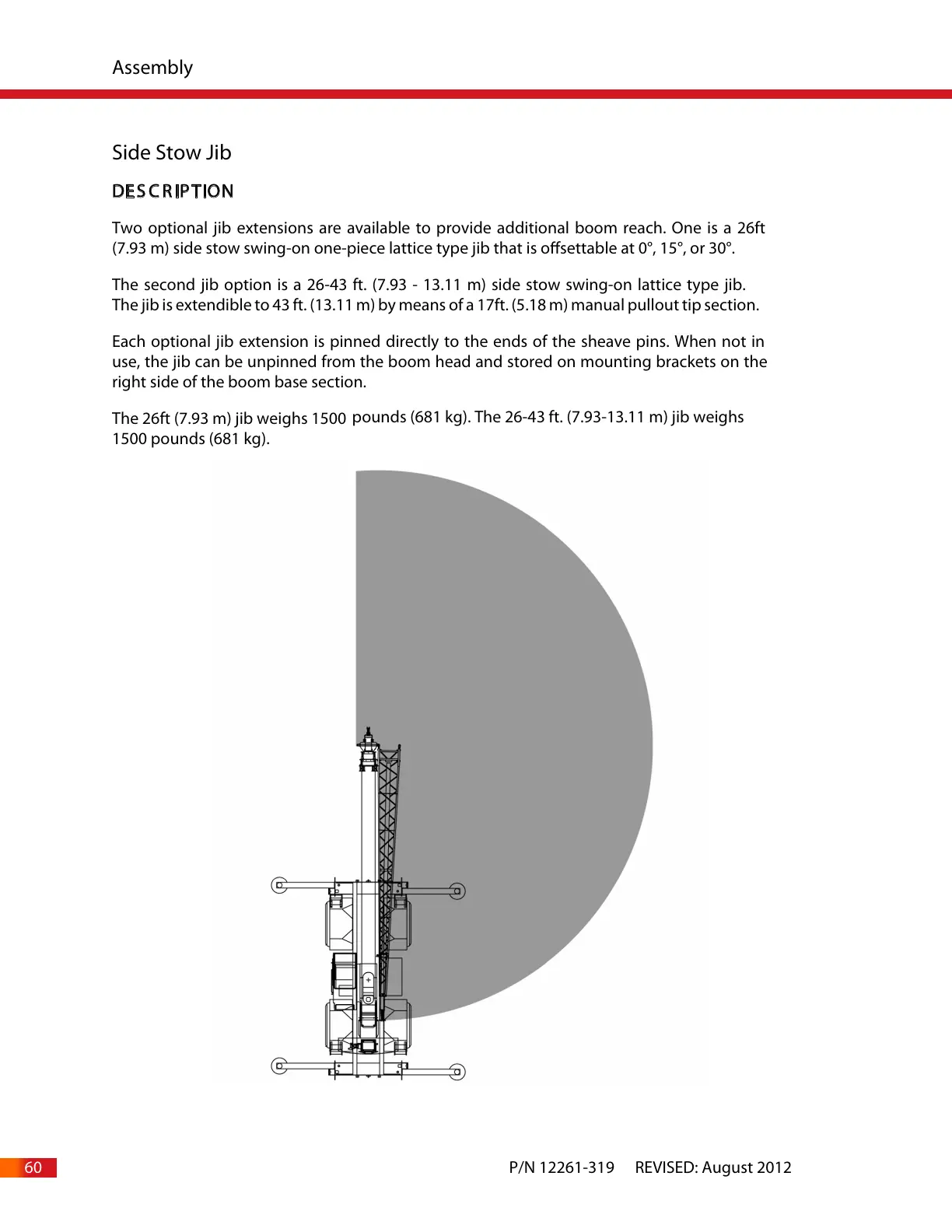

Side Stow Jib
D
E S C R IP TION
Two optional jib extensions are available to provide additional boom reach. One is a 26ft
(7.93 m) side stow swing-on one-piece lattice type jib that is offsettable at 0°, 15°, or 30°.
The second jib option is a 26-43 ft. (7.93 - 13.11 m) side stow swing-on lattice type jib.
The jib is extendible to 43 ft. (13.11 m) by means of a 17ft. (5.18 m) manual pullout tip section.
Each optional jib extension is pinned directly to the ends of the sheave pins. When not in
use, the jib can be unpinned from the boom head and stored on mounting brackets on the
right side of the boom base section.
The 26ft (7.93 m) jib weighs 1500
pounds (681 kg). The 26-43 ft. (7.93-13.11 m) jib weighs
1500 pounds (681 kg).
Assembly
60 P/N 12261-319 REVISED: August 2012
