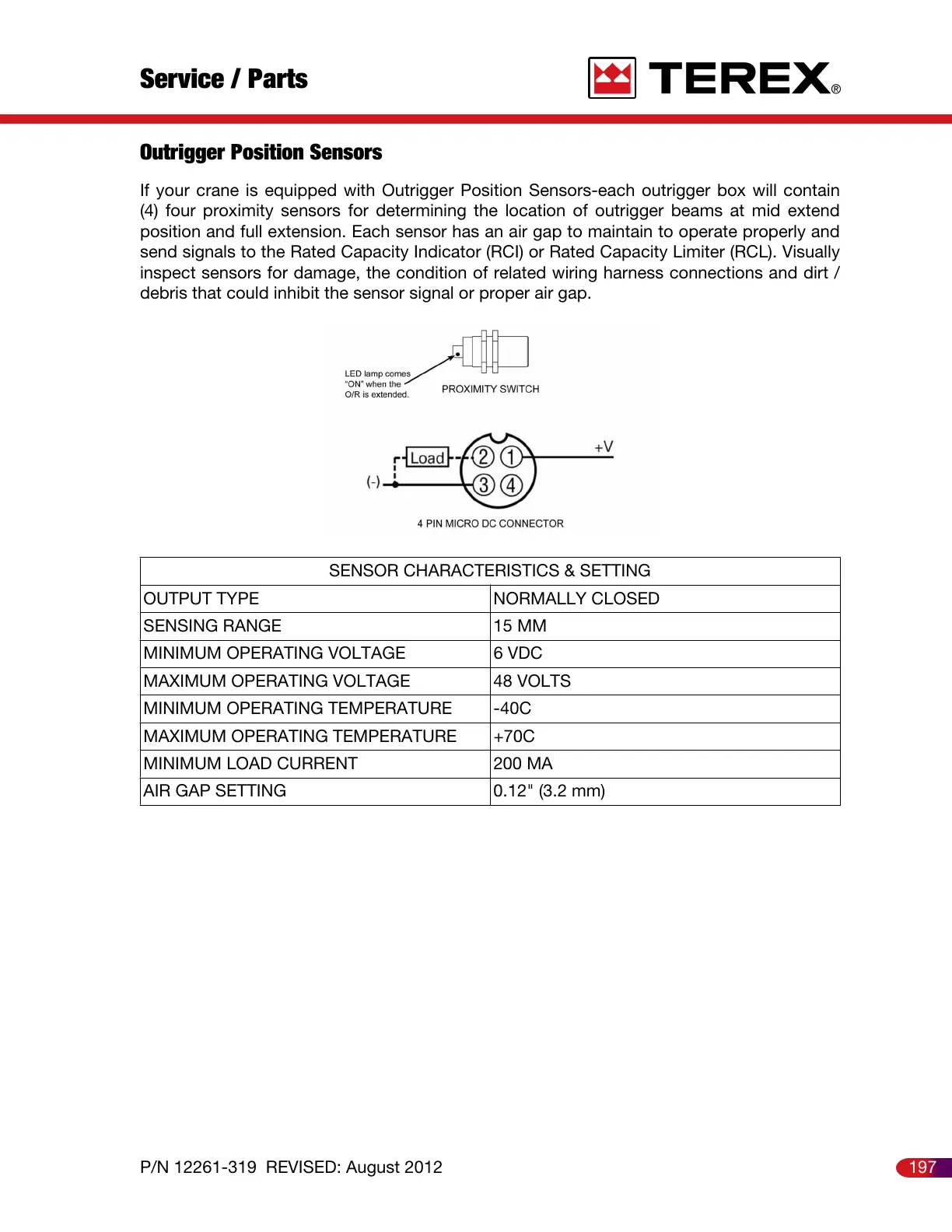

Outrigger Position Sensors
If your crane is equipped with Outrigger Position Sensors-each outrigger box will contain
(4) four proximity sensors for determining the location of outrigger beams at mid extend
position and full extension. Each sensor has an air gap to maintain to operate properly and
send signals to the Rated Capacity Indicator (RCI) or Rated Capacity Limiter (RCL). Visually
inspect sensors for damage, the condition of related wiring harness connections and dirt /
debris that could inhibit the sensor signal or proper air gap.
SENSOR CHARACTERISTICS & SETTING
OUTPUT TYPE NORMALLY CLOSED
SENSING RANGE 15 MM
MINIMUM OPERATING VOLTAGE 6 VDC
MAXIMUM OPERATING VOLTAGE 48 VOLTS
MINIMUM OPERATING TEMPERATURE -40C
MAXIMUM OPERATING TEMPERATURE +70C
MINIMUM LOAD CURRENT 200 MA
AIR GAP SETTING 0.12" (3.2 mm)
Service / Parts
197P/N 12261-319 REVISED: August 2012
