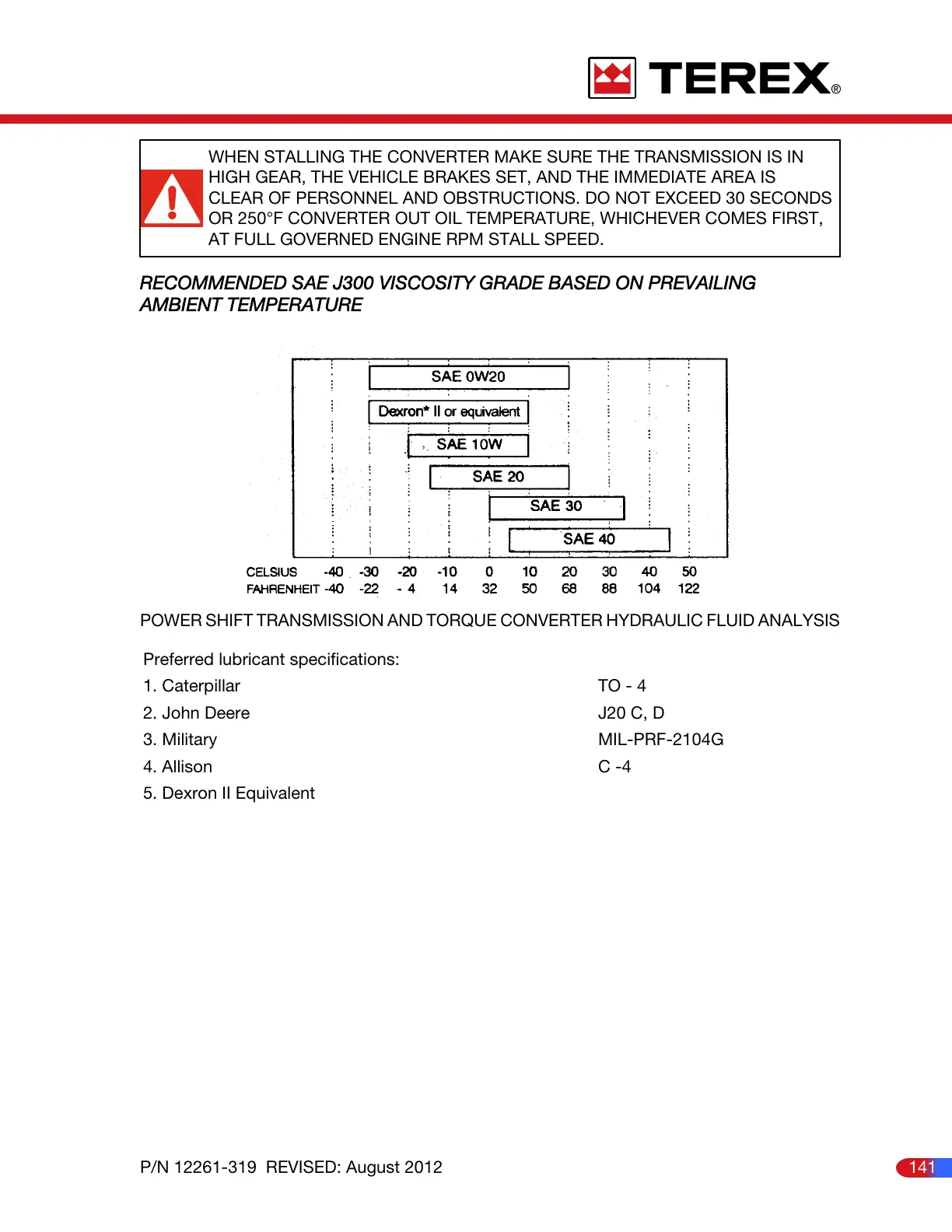

WHEN STALLING THE CONVERTER MAKE SURE THE TRANSMISSION IS IN
HIGH GEAR, THE VEHICLE BRAKES SET, AND THE IMMEDIATE AREA IS
CLEAR OF PERSONNEL AND OBSTRUCTIONS. DO NOT EXCEED 30 SECONDS
OR 250°F CONVERTER OUT OIL TEMPERATURE, WHICHEVER COMES FIRST,
AT FULL GOVERNED ENGINE RPM STALL SPEED.
RECOMMENDED SAE J300 VISCOSITY GRADE BASED ON PREVAILING
AMBIENT TEMPERATURE
POWER SHIFT TRANSMISSION AND TORQUE CONVERTER HYDRAULIC FLUID ANALYSIS
Preferred lubricant specifications:
1. Caterpillar TO - 4
2. John Deere J20 C, D
3. Military MIL-PRF-2104G
4. Allison C -4
5. Dexron II Equivalent
141P/N 12261-319 REVISED: August 2012
