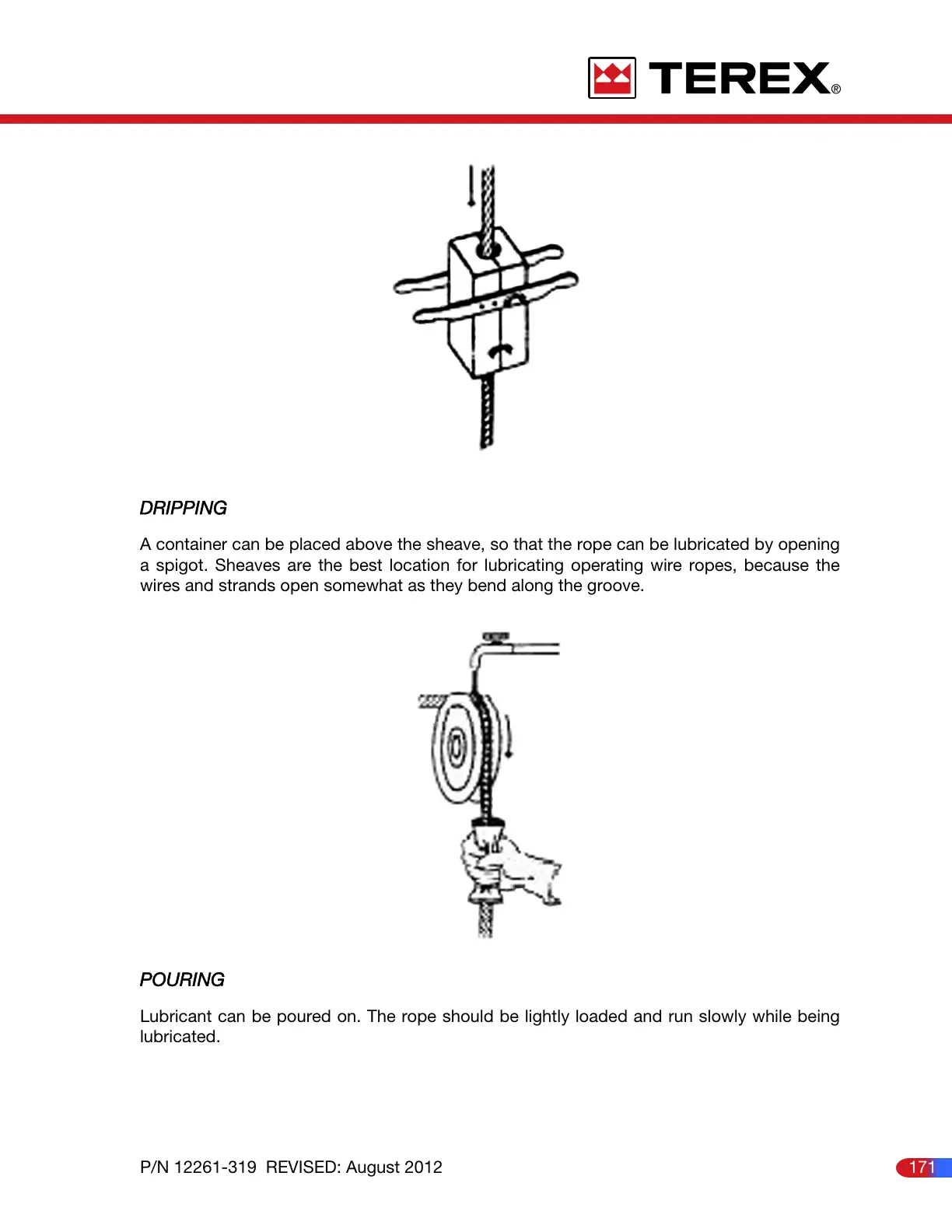

DRIPPING
A container can be placed above the sheave, so that the rope can be lubricated by opening
a spigot. Sheaves are the best location for lubricating operating wire ropes, because the
wires and strands open somewhat as they bend along the groove.
POURING
Lubricant can be poured on. The rope should be lightly loaded and run slowly while being
lubricated.
171
P/N 12261-319
REVISED: August 2012
Courtesy of Crane.Market
171
