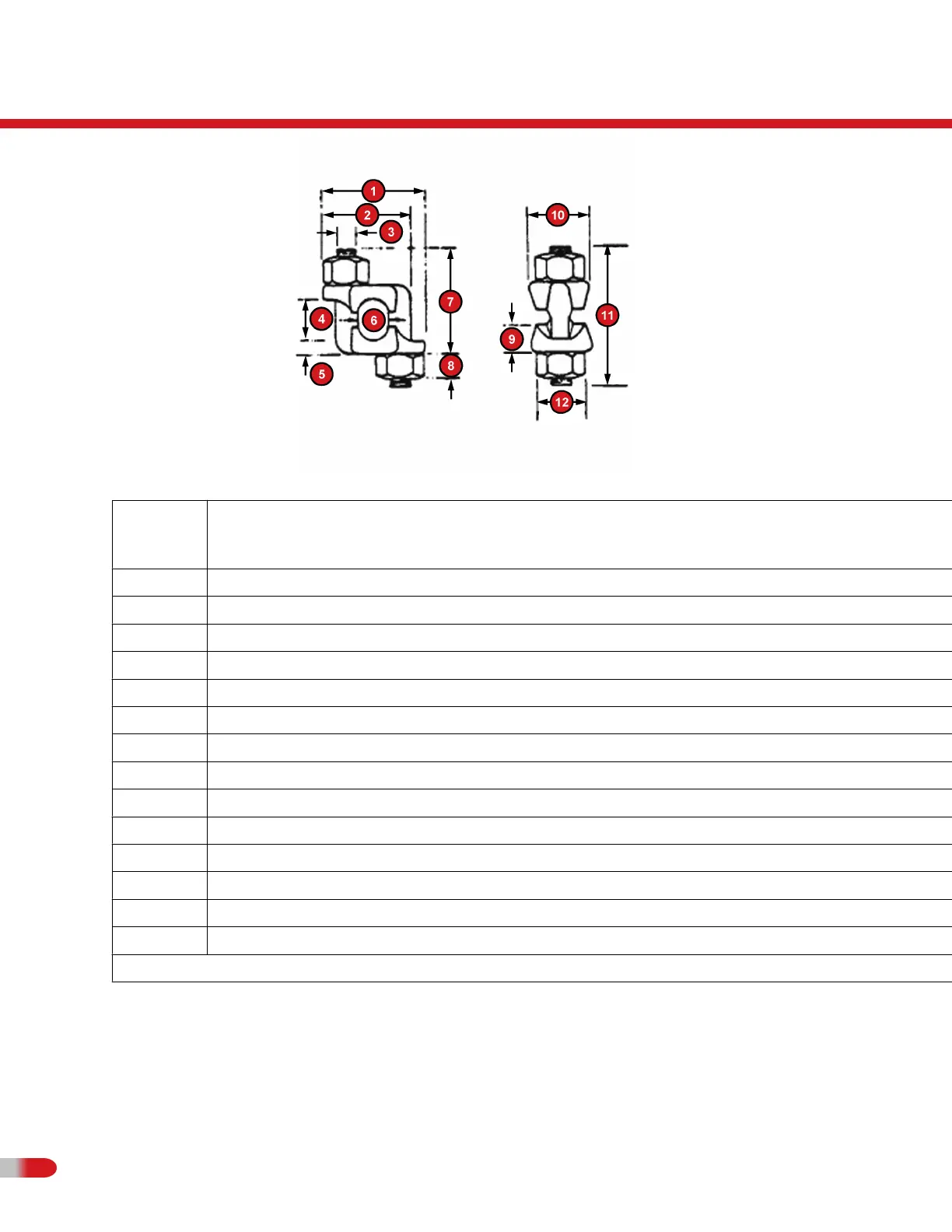

Clip Size 1 2 3 and 8 4 5 6 7 9 10 11 Approx. 12
Min. no. of
clips
Amount of
rope to
turn back
Torque in l/
ft
Weight lb/
100
3/16-1/4 1.47 1.25 .38 .50 .22 .25 1.28 .34 .94 1.63 .69 2 4 30 21
5/16 1.56 1.34 .38 .63 .19 .31 1.47 .44 1.06 1.94 .69 2 5 30 26
3/8 1.88 1.59 .44 .75 .25 .38 1.81 .50 1.06 2.38 .75 2 5-1/2 45 37
7/16 2.19 1.88 .50 1.00 .28 .50 2.19 .56 1.25 2.75 .88 2 6-1/2 65 60
1/2 2.19 1.88 .50 1.00 .28 .50 2.19 .56 1.25 2.75 .88 3 11 65 60
9/16 2.63 2.28 .63 1.25 .28 .63 2.69 .69 1.50 3.50 1.06 3 12-3/4 130 110
5/8 2.63 2.28 .63 1.25 .28 .63 2.69 .69 1.50 3.50 1.06 3 13-1/2 130 110
3/4 3.06 2.69 .75 1.50 .31 .75 2.94 .88 1.81 3.75 1.25 3 16 225 140
7/8 3.14 2.97 .75 1.75 .38 .88 3.31 .97 2.13 4.13 1.25 4 26 225 220
1 3.53 3.06 .75 2.00 .41 1.00 3.72 1.19 2.25 4.63 1.25 5 37 225 270
1-1/8 3.91 3.44 .88 2.25 .44 1.13 4.19 1.28 2.38 5.25 1.44 5 41 360 300
1-1/4 4.03 3.56 .88 2.50 .50 1.25 4.25 1.34 2.50 5.25 1.44 6 55 360 410
1-3/8 4.66 4.13 1.00 3.00 .56 1.50 5.56 1.56 3.00 7.00 1.63 6 62 500 680
1-1/2 4.66 4.13 1.00 3.00 .56 1.50 5.56 1.56 3.00 7.00 1.63 6 66 500 680
*Table from The Crosby Group
WEDGE SOCKETS
One of the more popular end attachments for wire rope is the wedge socket. For field, or
on the job attachment, it is easily installed and quickly dismantled. The procedure is simple:
1. Inspect the wedge and socket; all rough edges or burrs, that might damage the rope,
should be removed.
