15.TURN SIGNAL/WIPER LEVER- 45. FIRE EXTINQUISHER-Remove from
quick release bracket, pull safety pin, point
toward base of object on fire, depress black
handle.
17. TACHOMETER 46. LOAD MOMENT INDICATOR-Read
Terex RCI 510 Operator's Manual to fully
understand functional operation and safety
of this unit.
22. BUBBLE LEVEL-Indicates crane level
condition. Bubble must be on center before
lifting loads.
47. DEFROSTER FAN
34. TRANSMISSION GEAR SELECTOR 48. ACCESSORY (10 AMP) PLUG

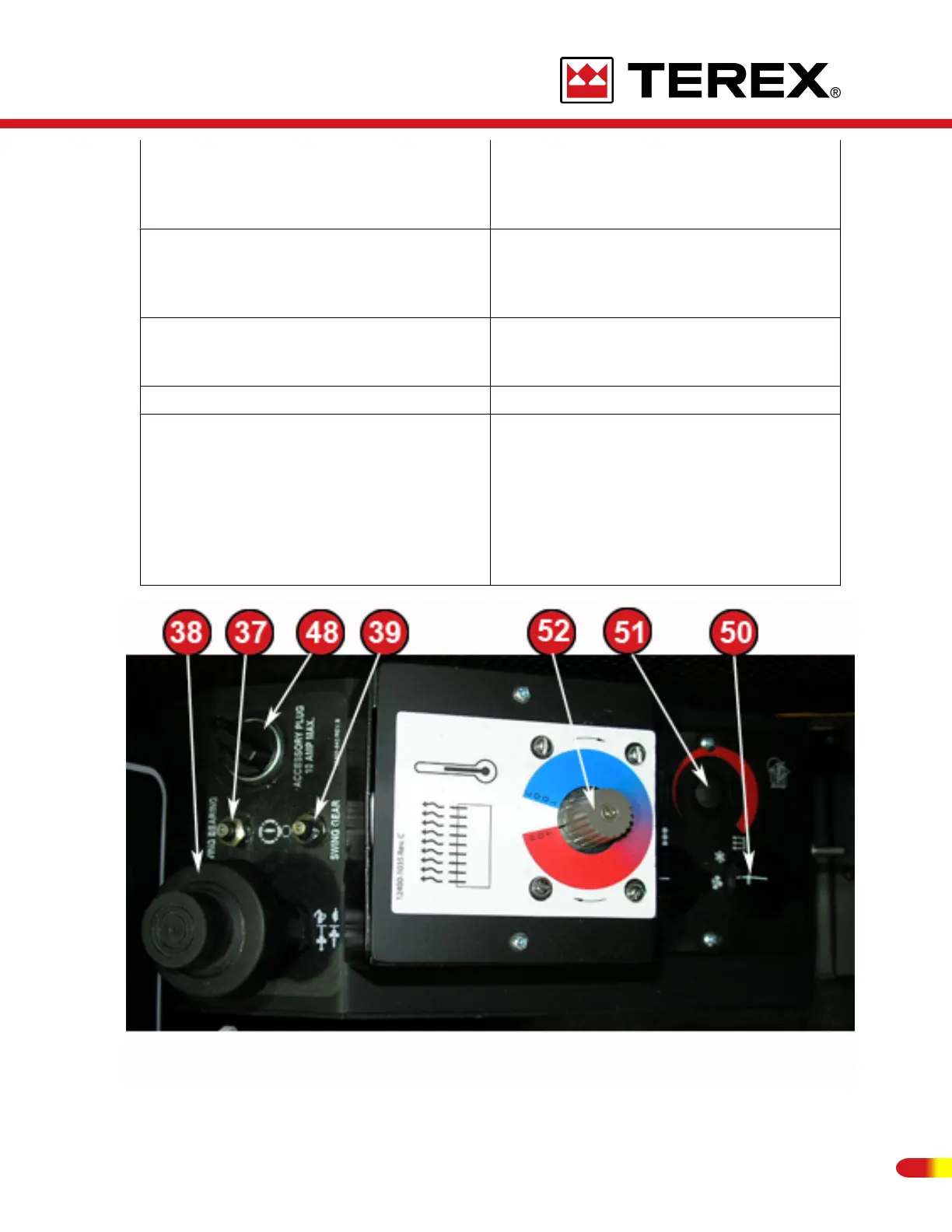

38.HAND THROTTLE - Holds engine throttle
at an operator settable position. Place the
accelerator (42) at approximate RPM. Push
in button on hand throttle. Pull throttle up
and release button to lock. Make fine
adjustments to engine RPM by rotating the
hand throttle clockwise to decrease RPM
and counterclockwise to increase RPM.
54. WAIT TO START INDICATOR LIGHT-
Light is "On" wait to engage starter. When
light goes "off" engage starter.
55REVISED:
