• On cranes that have counterweight options the operator must tell the MicroGuard®
System which counterweight is currently fitted. If there are no options, continue on to
selection of outriggers.

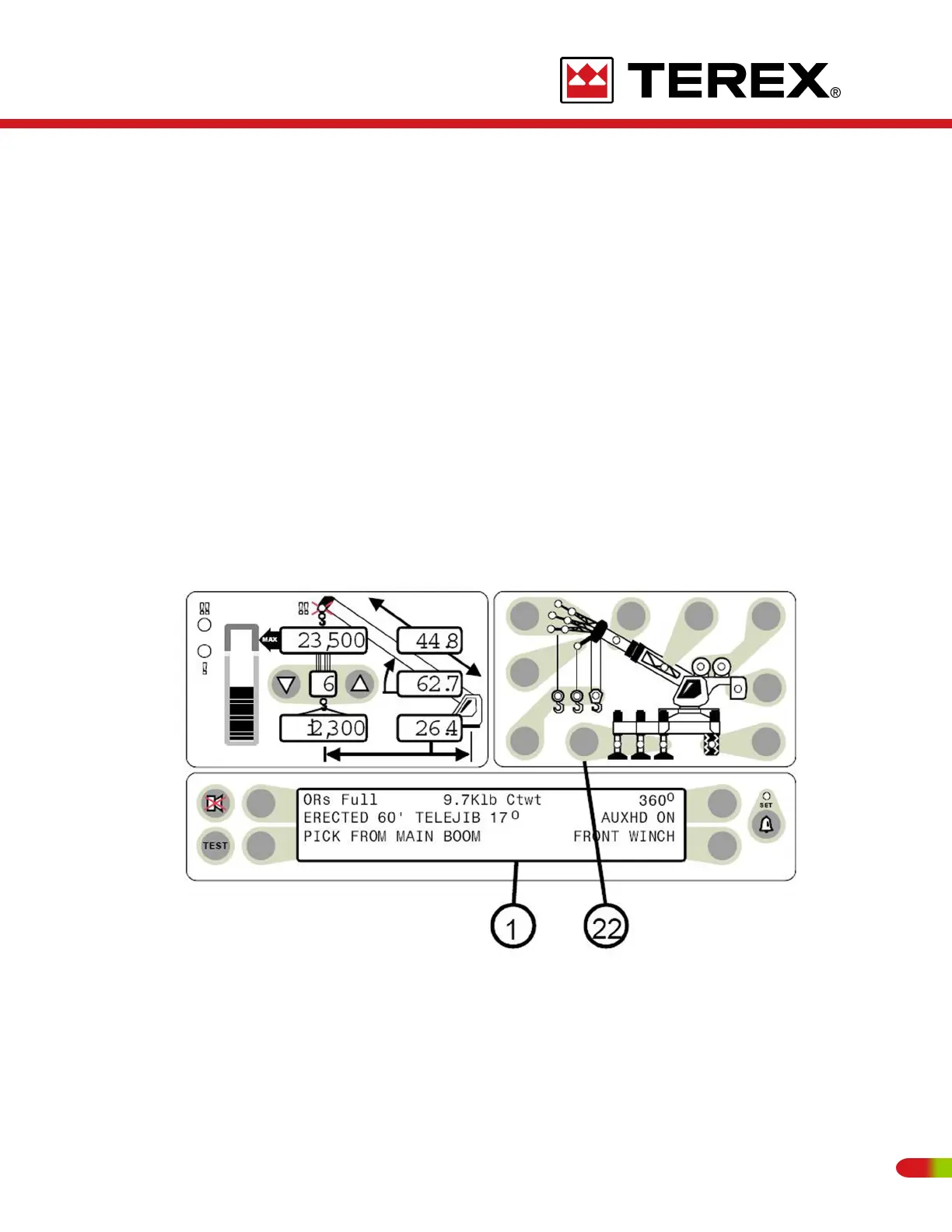

• Start the choice by pressing the counterweight push button (item 20).
• The available counterweight options will be displayed in the information screen (1).
There can be four options displayed at a time, one next to each selection key.
- If the required option is visible, select the option by pressing the button next to it.
- If more than 4 options are available, a second selection screen can be viewed by
pressing the button next to the "next" label.
- If only a single option is available, it will automatically be selected.
79REVISED:
