OUTRIGGERS

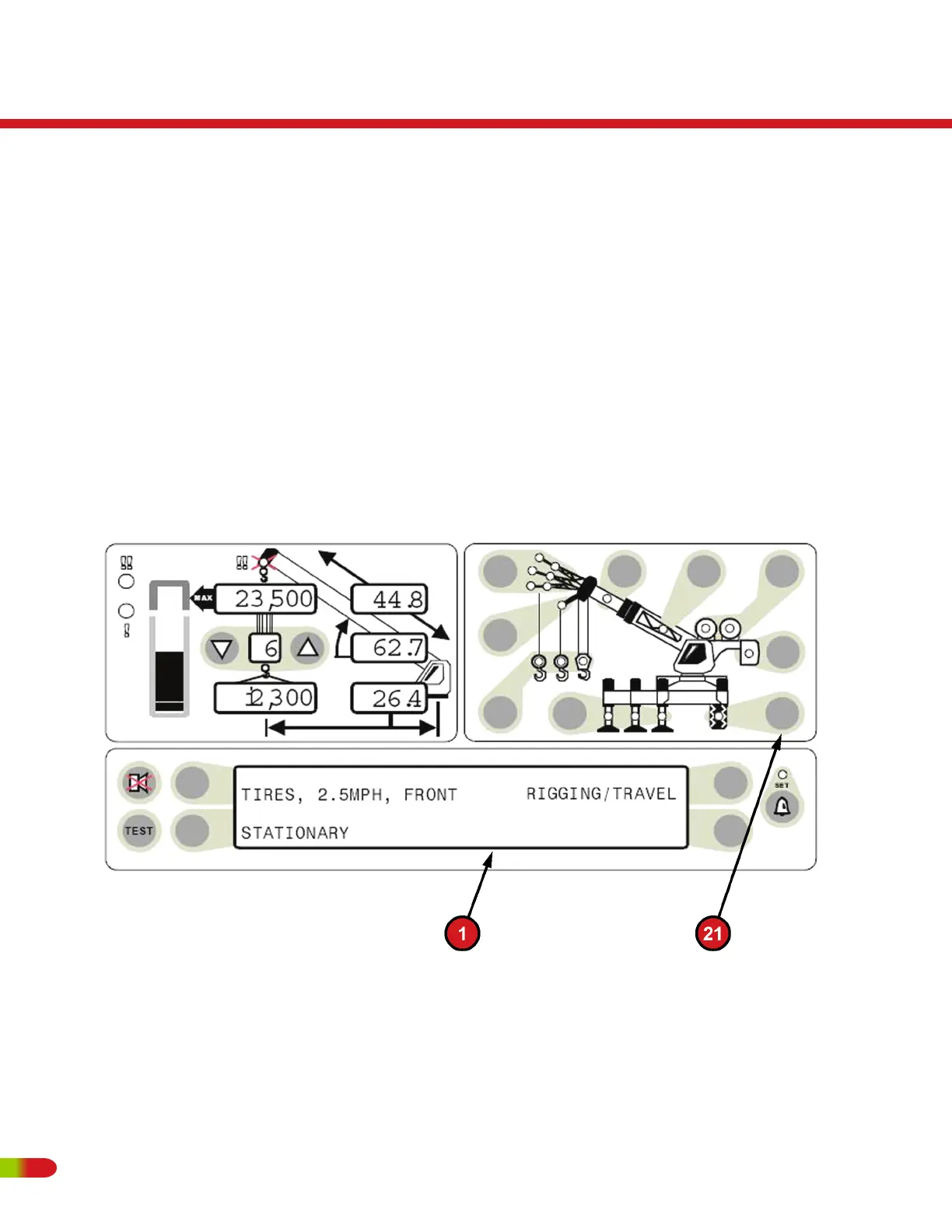

• The operator must tell the system which outrigger position is in use.
• Start the choice by pressing the outrigger push button (item 22).
• The outrigger selection will automatically move on to the next selection.
EXAMPLE: From fully extended to half extended, or from half-extended to fully retracted
and then back to fully extended with each push of the button. If no other selections are
available, the message "No other chassis options" will appear on the information screen
(item 1).
RT500
Operating Instructions
80 REVISED:
