SETTING MAXIMUM BOOM ANGLE ALARM

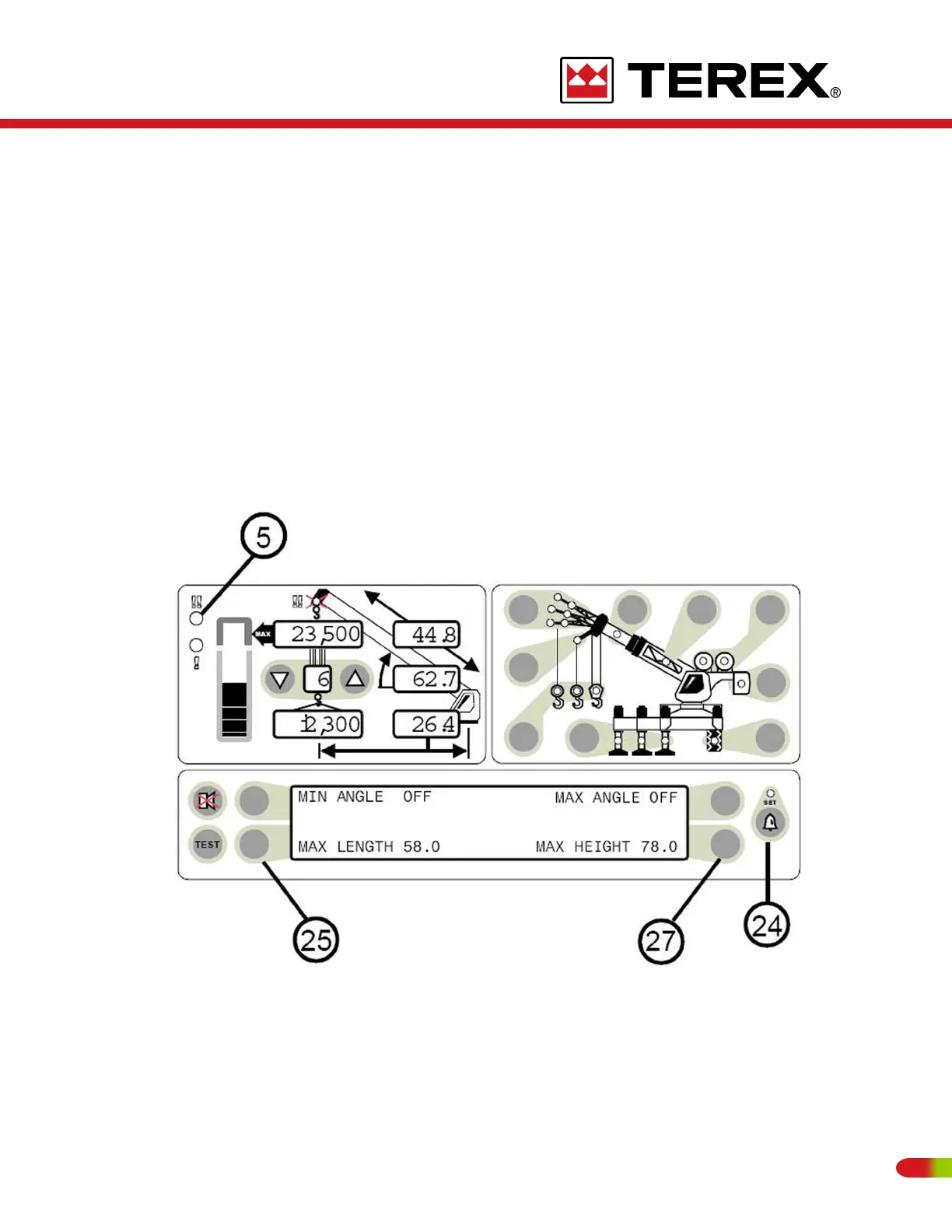

• Move the boom to the desired maximum angle (in this example 67°).
• Press the operator alarm push button (item 24) to access the operator alarm screen.
• Press the push button (item 29) pointing to Max Angle. In this example the display will
read MAX ANGLE 67°.
• The red warning light (item 5) will flash and the audible alarm will sound whenever the
boom angle is above 67°.
Pressing the MAX ANGLE push button again will cancel the alarm and the display will
read MAX ANGLE OFF.
