Terramite TSS46 - Page 10

Copyright © 2007 Terramite Corporation
2.8
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL

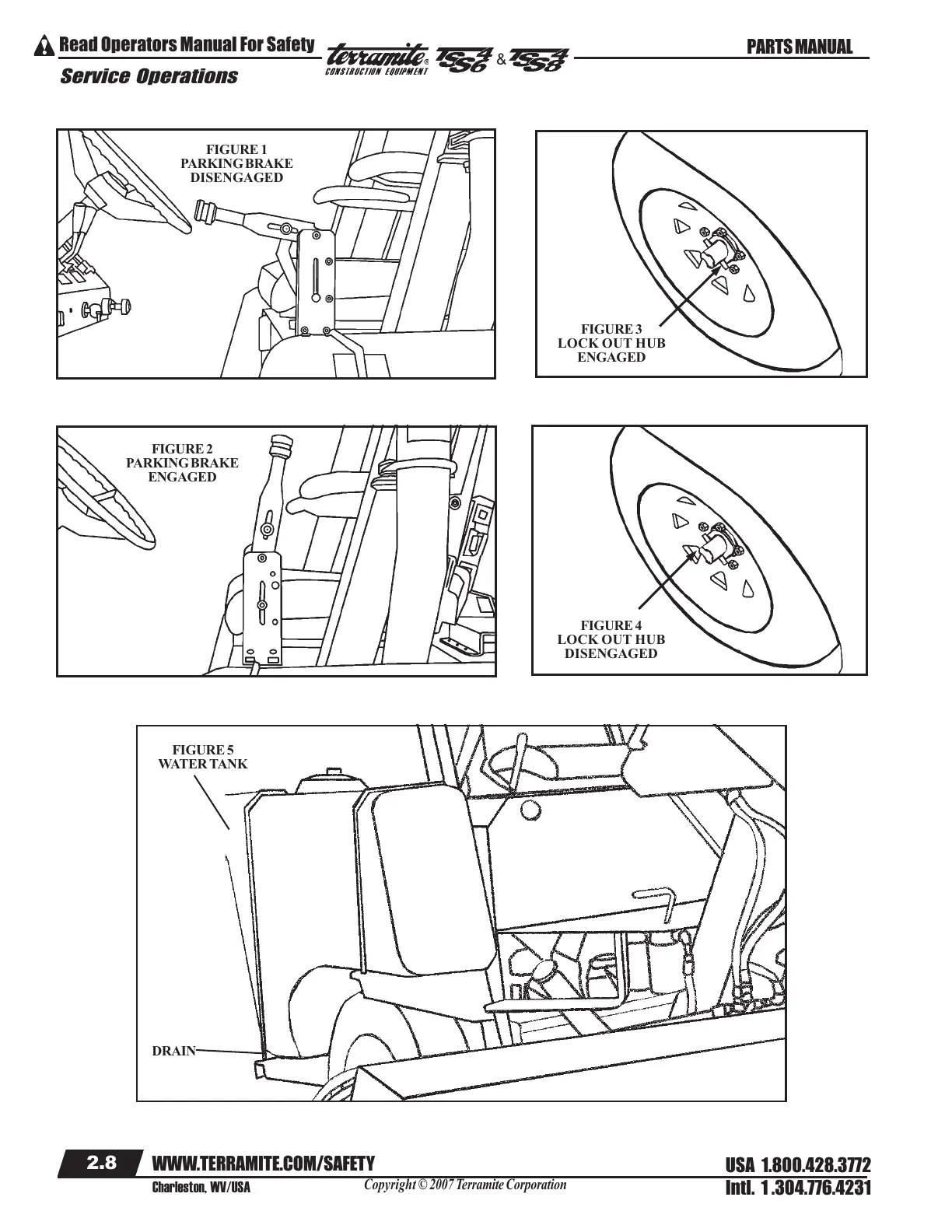

Service Operations
&
FIGURE 5
WATER TANK
DRAIN
FIGURE 3
LOCK OUT HUB
ENGAGED
FIGURE 4
LOCK OUT HUB
DISENGAGED
FIGURE 2
PARKING BRAKE
ENGAGED
FIGURE 1
PARKING BRAKE
DISENGAGED
