PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

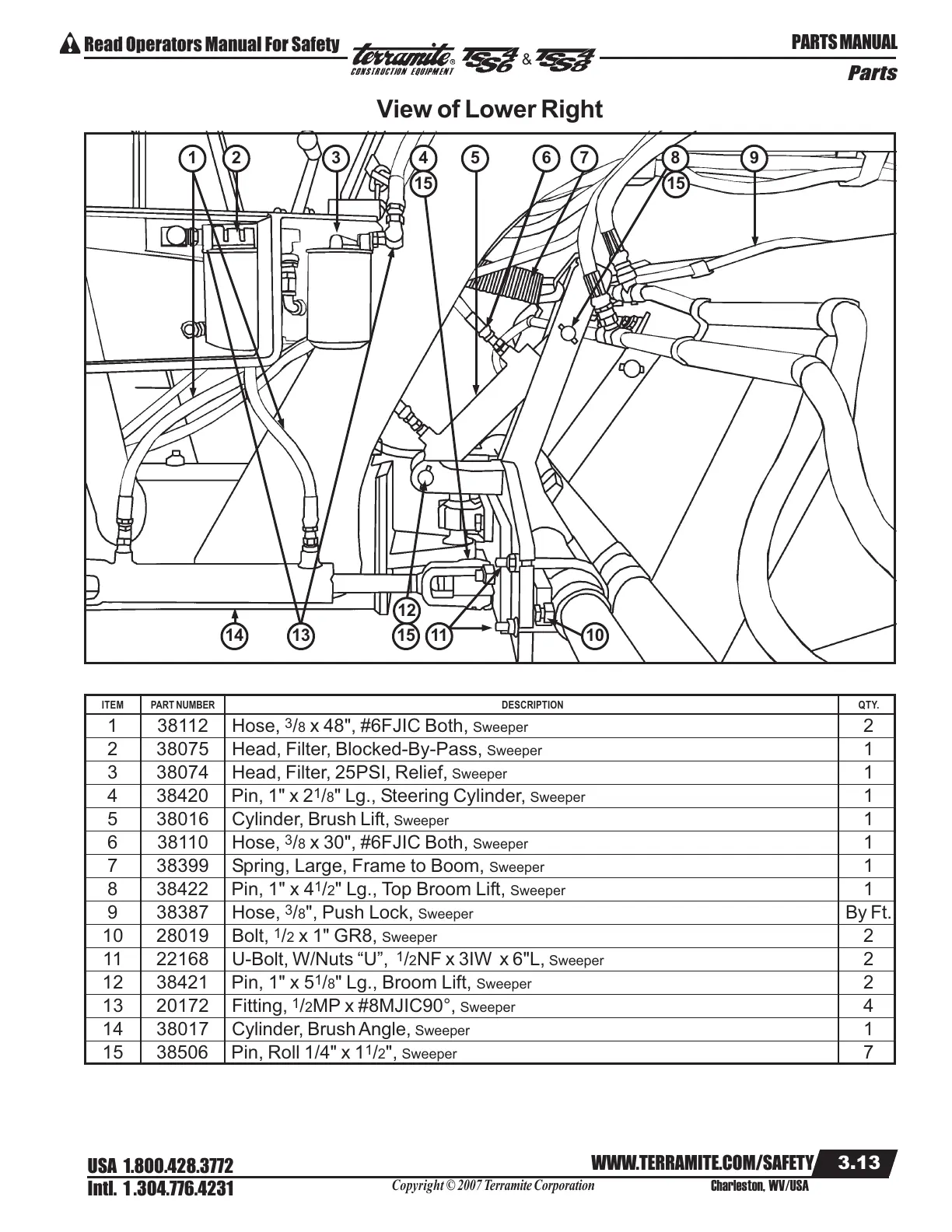

View of Lower Right
1 4 5
ITEM PART NUMBER DESCRIPTION QTY.
1 38112 Hose,
3
/8 x 48", #6FJIC Both, Sweeper 2
2 38075 Head, Filter, Blocked-By-Pass, Sweeper 1
3 38074 Head, Filter, 25PSI, Relief, Sweeper 1
4 38420 Pin, 1" x 2
1
/8" Lg., Steering Cylinder, Sweeper 1
5 38016 Cylinder, Brush Lift, Sweeper 1
6 38110 Hose,
3
/8 x 30", #6FJIC Both, Sweeper 1
7 38399 Spring, Large, Frame to Boom, Sweeper 1
8 38422 Pin, 1" x 4
1
/2" Lg., Top Broom Lift, Sweeper 1
9 38387 Hose,
3
/8", Push Lock, Sweeper By Ft.
10 28019 Bolt,
1
/2 x 1" GR8, Sweeper 2
11 22168 U-Bolt, W/Nuts “U”,
1
/2NF x 3IW x 6"L, Sweeper 2
12 38421 Pin, 1" x 5
1
/8" Lg., Broom Lift, Sweeper 2
13 20172 Fitting,
1
/2MP x #8MJIC90°, Sweeper 4
14 38017 Cylinder, Brush Angle, Sweeper 1
15 38506 Pin, Roll 1/4" x 1
1
/2", Sweeper 7
6
1014 11
2 3 7 9
13
8
15
12
15
15
