Terramite TSS46 - Water System Routing

3.25
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

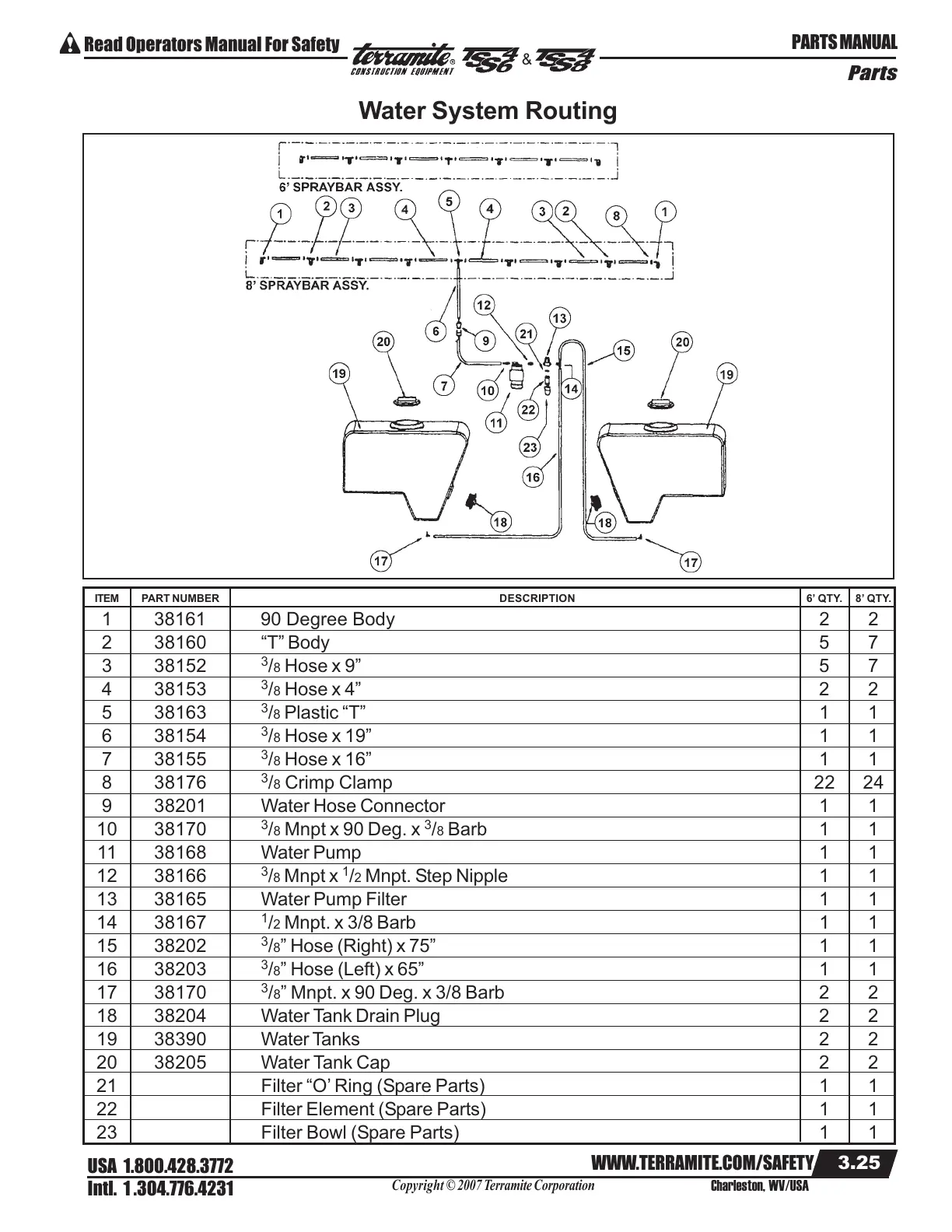

Water System Routing
ITEM PART NUMBER DESCRIPTION 6’ QTY. 8’ QTY.
1 38161 90 Degree Body 2 2
2 38160 “T” Body 5 7
3 38152
3
/8 Hose x 9” 5 7
4 38153
3
/8 Hose x 4” 2 2
5 38163
3
/8 Plastic “T” 1 1
6 38154
3
/8 Hose x 19” 1 1
7 38155
3
/8 Hose x 16” 1 1
8 38176
3
/8 Crimp Clamp 22 24
9 38201 Water Hose Connector 1 1
10 38170
3
/8 Mnpt x 90 Deg. x
3
/8 Barb 1 1
11 38168 Water Pump 1 1
12 38166
3
/8 Mnpt x
1
/2 Mnpt. Step Nipple 1 1
13 38165 Water Pump Filter 1 1
14 38167
1
/2 Mnpt. x 3/8 Barb 1 1
15 38202
3
/8” Hose (Right) x 75” 1 1
16 38203
3
/8” Hose (Left) x 65” 1 1
17 38170
3
/8” Mnpt. x 90 Deg. x 3/8 Barb 2 2
18 38204 Water Tank Drain Plug 2 2
19 38390 Water Tanks 2 2
20 38205 Water Tank Cap 2 2
21 Filter “O’ Ring (Spare Parts) 1 1
22 Filter Element (Spare Parts) 1 1
23 Filter Bowl (Spare Parts) 1 1
