Terramite TSS46 - Spray Bar Assembly

3.35
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&
ITEM PART NUMBER DESCRIPTION QTY.
1 38304 6’ Spray Bar 1
38305 8’ Spray Bar 1
2 22123 3/8” - 16 x 1 1/4” Bolt, Zinc Plated 4
3 22171 3/8” Lock Washer 4
4 28044 3/8” Flat Washer 4
5 38162 Spray Bar Clamp W/Screw 8
6 38161 90
o
Brass Water Fitting 2
7 38160 Tee Brass Water Fitting 6
8 38176 Spray Hose Clamp 16
9 38387 3/8” Spray Hose (6 - 10 1/2”, 2 - 4 1/2”) 6 ft.
10 20135 3/8” Barbed Tee Water Fitting 1
11 38159 Check Valve Strainer 8
12 38164 Brass Seal 8
13 38158 Water Spray Orifice 8
14 38157 Brass Cap 8

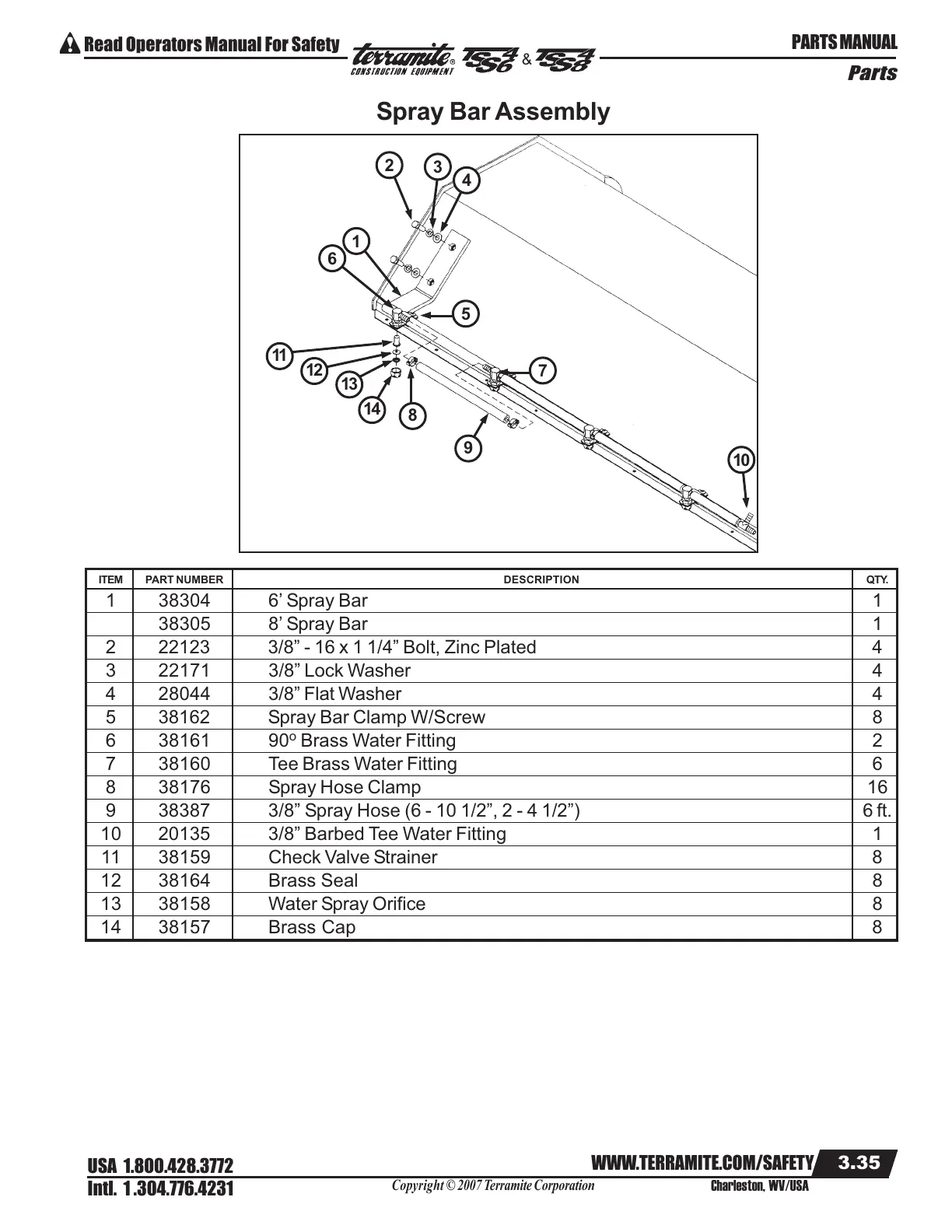

Spray Bar Assembly
9
7
8
14
13
12
11
10
4
3
2
1
6
5
