PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

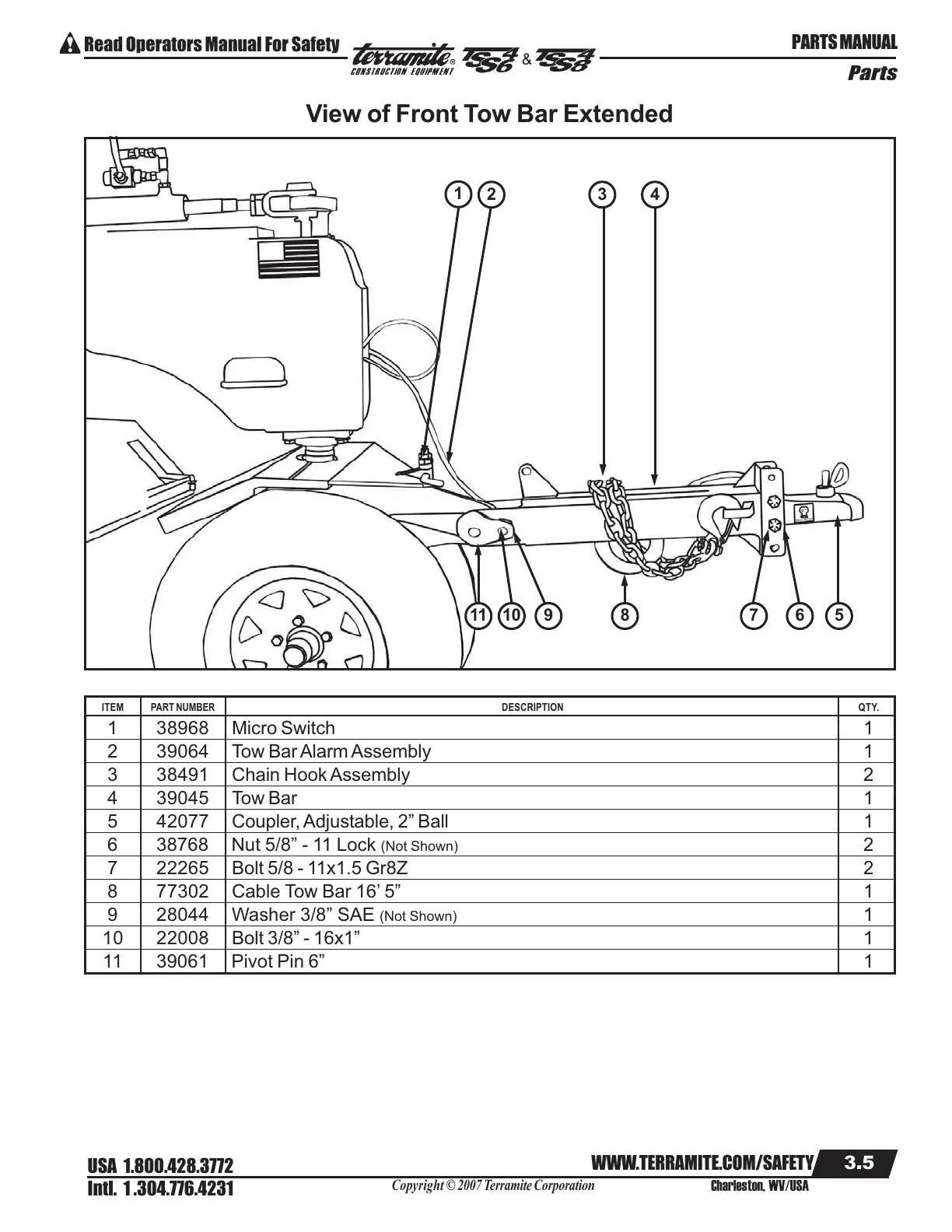

View of Front Tow Bar Extended
ITEM PART NUMBER DESCRIPTION QTY.
1 38968 Micro Switch 1
2 39064 Tow Bar Alarm Assembly 1
3 38491 Chain Hook Assembly 2
4 39045 Tow Bar 1
5 42077 Coupler, Adjustable, 2” Ball 1
6 38768 Nut 5/8” - 11 Lock (Not Shown) 2
7 22265 Bolt 5/8 - 11x1.5 Gr8Z 2
8 77302 Cable Tow Bar 16’ 5” 1
9 28044 Washer 3/8” SAE (Not Shown) 1
10 22008 Bolt 3/8” - 16x1” 1
11 39061 Pivot Pin 6” 1
1
2 3 4
567891011
