Terramite TSS46 - View of Lower Left

3.14
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

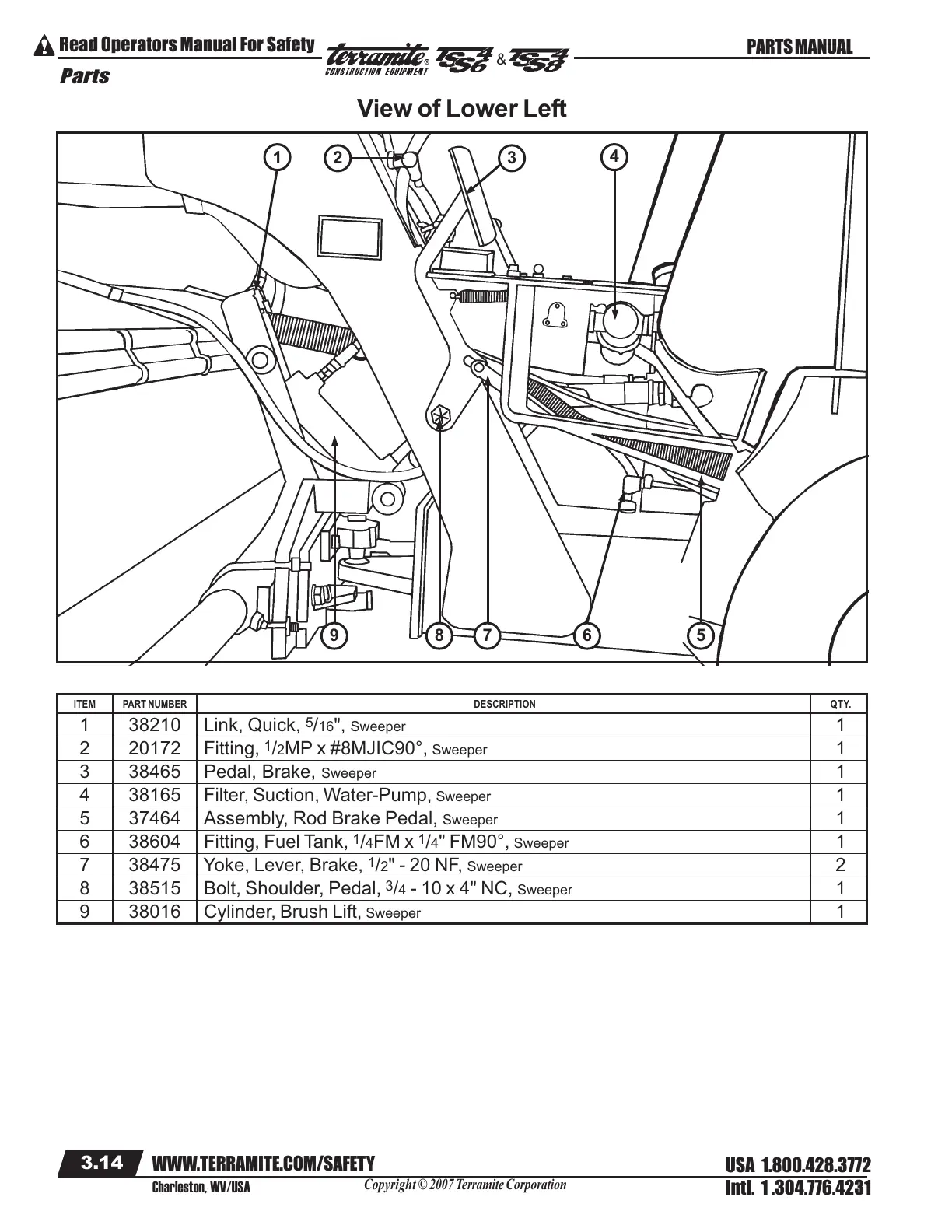

View of Lower Left
ITEM PART NUMBER DESCRIPTION QTY.
1 38210 Link, Quick,
5
/16", Sweeper 1
2 20172 Fitting,
1
/2MP x #8MJIC90°, Sweeper 1
3 38465 Pedal, Brake, Sweeper 1
4 38165 Filter, Suction, Water-Pump, Sweeper 1
5 37464 Assembly, Rod Brake Pedal, Sweeper 1
6 38604 Fitting, Fuel Tank,
1
/4FM x
1
/4" FM90°, Sweeper 1
7 38475 Yoke, Lever, Brake,
1
/2" - 20 NF, Sweeper 2
8 38515 Bolt, Shoulder, Pedal,
3
/4 - 10 x 4" NC, Sweeper 1
9 38016 Cylinder, Brush Lift, Sweeper 1
1 2 3
4
56789
