3.29
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

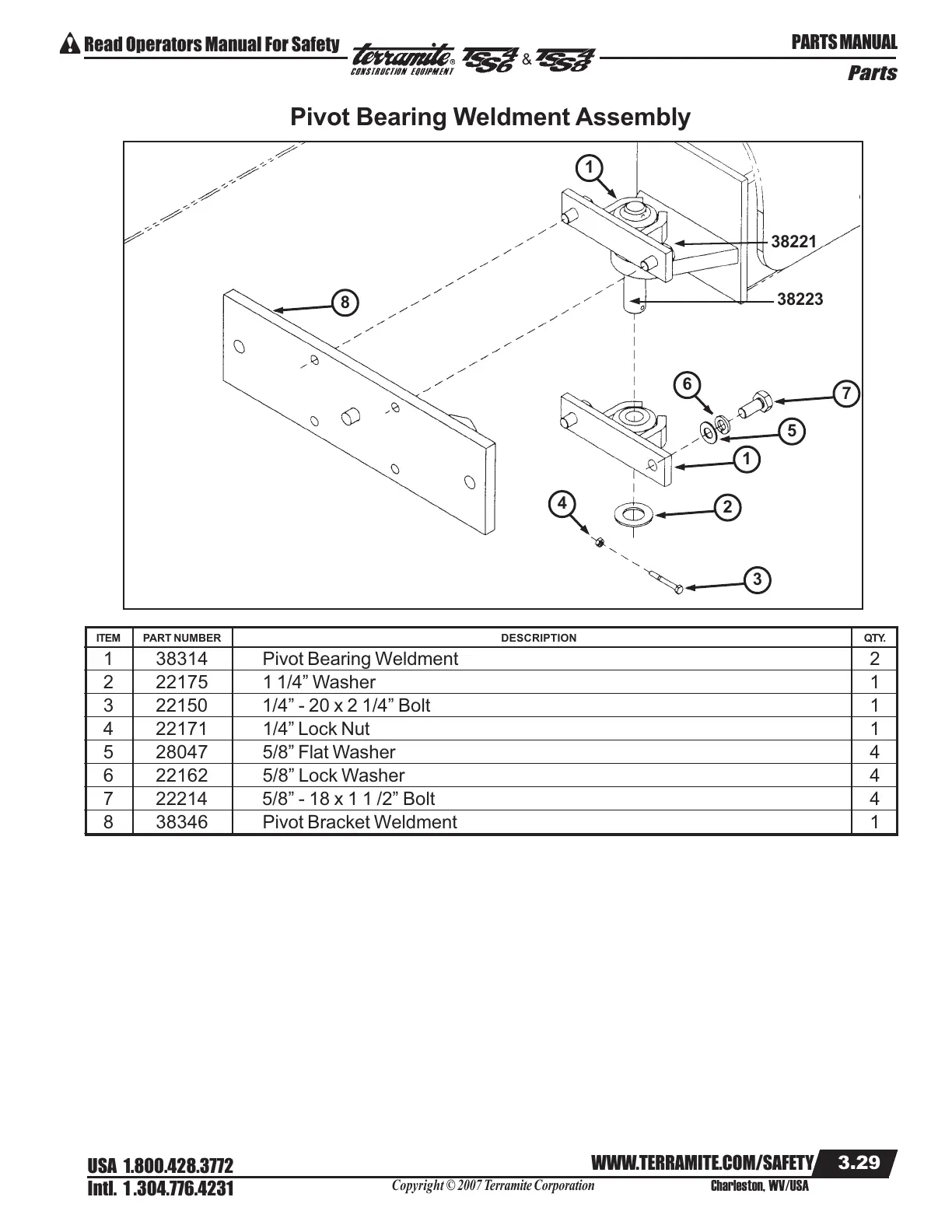

Pivot Bearing Weldment Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 38314 Pivot Bearing Weldment 2
2 22175 1 1/4” Washer 1
3 22150 1/4” - 20 x 2 1/4” Bolt 1
4 22171 1/4” Lock Nut 1
5 28047 5/8” Flat Washer 4
6 22162 5/8” Lock Washer 4
7 22214 5/8” - 18 x 1 1 /2” Bolt 4
8 38346 Pivot Bracket Weldment 1
3
2
1
5
7
8
1
6
38221
38223
4
