Terramite TSS46 - View of Steering

3.7
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

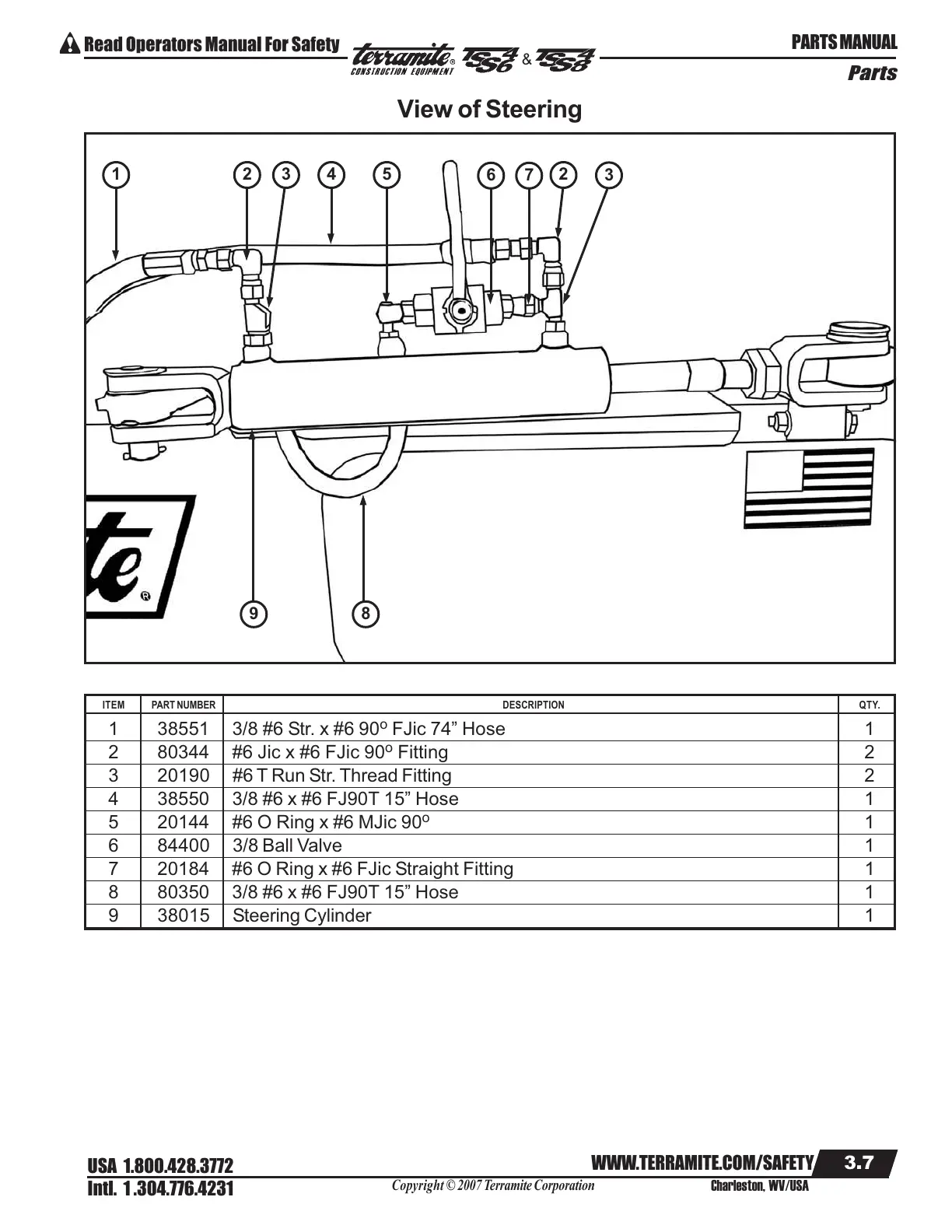

View of Steering
ITEM PART NUMBER DESCRIPTION QTY.
1 38551 3/8 #6 Str. x #6 90
o
FJic 74” Hose 1
2 80344 #6 Jic x #6 FJic 90
o
Fitting 2
3 20190 #6 T Run Str. Thread Fitting 2
4 38550 3/8 #6 x #6 FJ90T 15” Hose 1
5 20144 #6 O Ring x #6 MJic 90
o
1
6 84400 3/8 Ball Valve 1
7 20184 #6 O Ring x #6 FJic Straight Fitting 1
8 80350 3/8 #6 x #6 FJ90T 15” Hose 1
9 38015 Steering Cylinder 1
1 2 3 4 5
6 7
2
3
89
