Terramite TSS46 - Brake Hub Assembly

3.36
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER LAKIN# DESCRIPTION QTY.
1 N/A 4207 Housing w/Brake 1
2 38776 3732 Set, Bearing & Race, Outer #2 & #3 1
3 38776 3731 Set, Bearing & Race, Outer #2 & #3 1
4 38775 3728 Seal, OIl - Bearing 1
5 38828 3718 Spindle, Brake, Disconnect Hub 1
6 N/A 3724 Ret. Ring - Shaft (2) req’ed 1
7 N/A 3719 Shaft 1
8 38424 3735 Spring, Shaft 1
9 38845 3736 Washer, Spring 1
10 N/A 3725 Ret. Ring - Spring 1
11 38843 3727 Seal, Oil, Shaft 1
12 N/A 3721 Handle, Shaft 1
13 N/A 3726 Ret. Ring - Handle 1
14 38777 3730 Set, Bearing & Race, Inner #14 & #15 1
15 38777 3729 Set, Bearing & Race, Inner #14 & #15 1
16 38839 3976W Washer, Tongued 1
17 38827 3734 Lockwasher, Inner 1
18 38826 3733 Locknut (2) req’ed 1
19 N/A 3723 Ret. Ring - Sleeve 1
20 38823 3720 Sleeve, Brake Disconnect Hub 1
21 N/A 3990 Key, 0.312 sq. x 1” Long 1

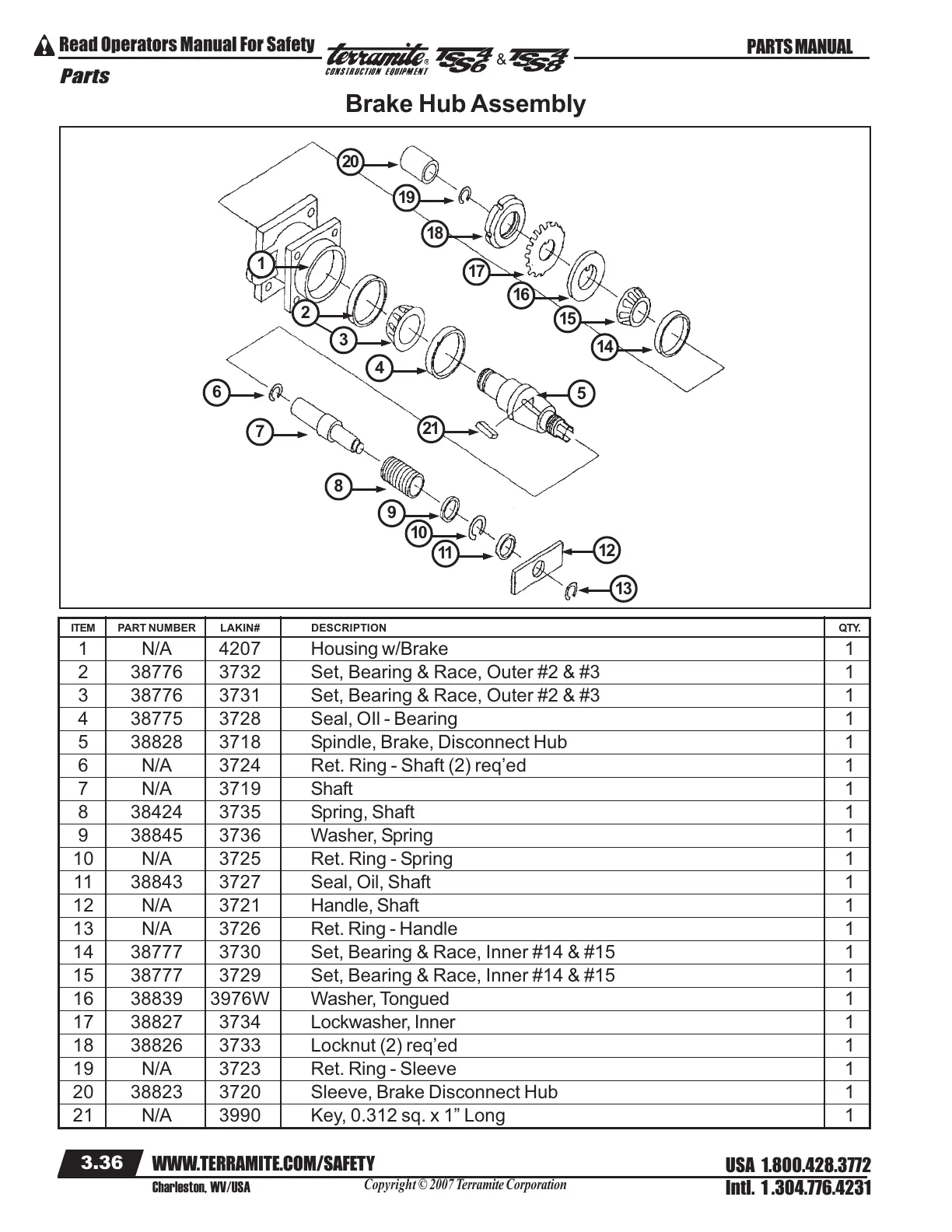

Brake Hub Assembly
6
7
8
9
10
11
1
2
3
4
21
20
19
18
17
16
15
14
5
12
13
