Terramite TSS46 - View of Right Side Front

3.8
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

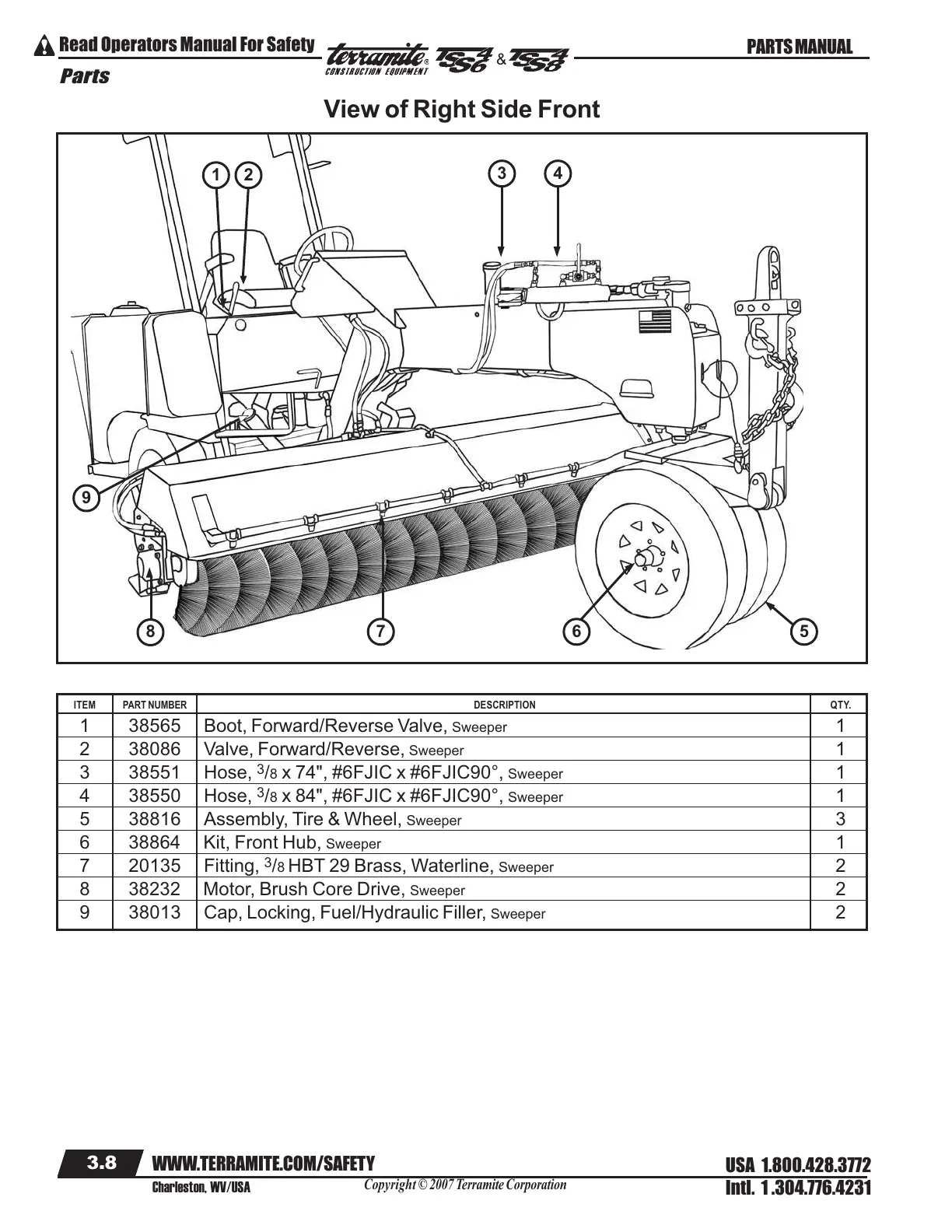

View of Right Side Front
ITEM PART NUMBER DESCRIPTION QTY.
1 38565 Boot, Forward/Reverse Valve, Sweeper 1
2 38086 Valve, Forward/Reverse, Sweeper 1
3 38551 Hose,
3
/8 x 74", #6FJIC x #6FJIC90°, Sweeper 1
4 38550 Hose,
3
/8 x 84", #6FJIC x #6FJIC90°, Sweeper 1
5 38816 Assembly, Tire & Wheel, Sweeper 3
6 38864 Kit, Front Hub, Sweeper 1
7 20135 Fitting,
3
/8 HBT 29 Brass, Waterline, Sweeper 2
8 38232 Motor, Brush Core Drive, Sweeper 2
9 38013 Cap, Locking, Fuel/Hydraulic Filler, Sweeper 2
1 2
3 4
567
8
9
