PARTS MANUAL
Service Operations
&
ITEM DESCRIPTION/LOCATION MAINTENANCE SCHEDULE
1. Grease Fittings a. (2) Bearing on Front Fork Grease all fittings daily
b. (1) Variable-Speed-Pedal under
floorboard
c. (2) Left and Right on Brake Rod
d. (1) Foot Brake
2. Hydraulic Oil With oil hot, oil level should be in Change Hydraulic Oil every 6
center of eye on side of hydraulic tank months or as needed.
and/or 1" below top of tank.
Capacity: 20 Gallons
3. Hydraulic Spin-On a. 10 Micron Part #21002 Change both Spin-On filters every
Filters 2 under floorboard. 3 months.
b. Hydraulic Tank Screen Part #38072 Remove and clean every 6 months.
at rear of Hydraulic Tank.
c. High Pressure Filter Element Change every 6 months.
Part #38019 inside hood and to right
of engine.
ITEM LOCATION FUNCTION
C. Rear position allows unit to travel
in reverse when the variable speed
pedal is depressed (See Item 4).
5. Keyswitch Centrally located below the steering Preheats engine glow plugs when
wheel. turned and held in full left position,
starts engine when turned and held in
full right position. 1st "Notch" positions
from full right is "Run", and 2nd
"Notch" position from full right is
"Off". (On Kubota ONLY)
6. Broom Rotary Located to the right of the steering When pushed forward broom sweeps
wheel. forward, when in center position,
broom stops. Variable speed rotation.
7. Broom Left-To-Right Located to left of and furthest When pushed forward, right end of
from the steering wheel. broom moves towards rear when
pulled back, right end of broom moves
forward.
8. Broom Lift Control Located to left of and closest to When pushed all the way forward and
the steering wheel. locked into detented position, broom
head goes to lowered and operating
float position. When lever is pushed
forward broom head raises off of surface.
9. Engine Throttle To right of and below the steering To set engine operating speed.
wheel.

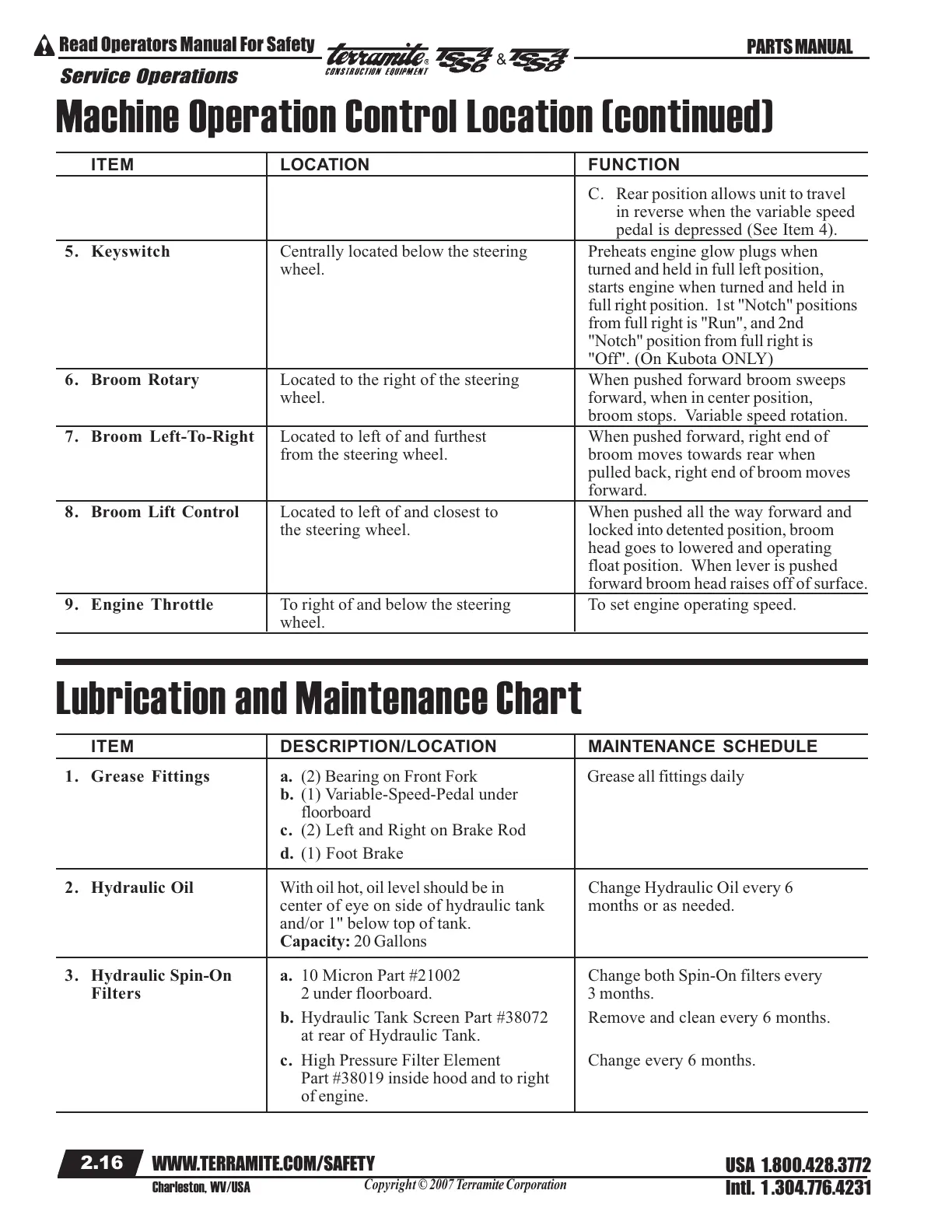

Machine Operation Control Location (continued)
