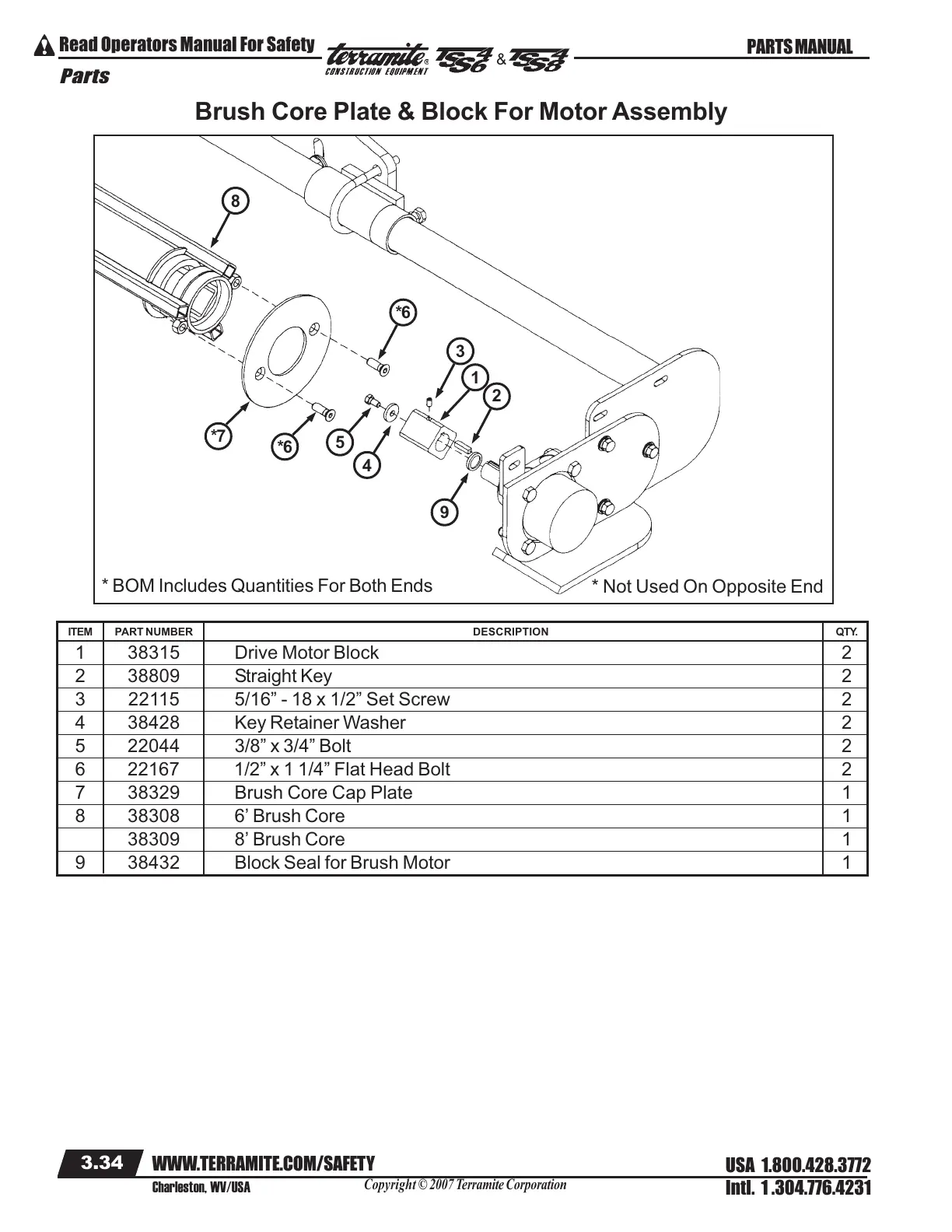

Brush Core Plate & Block For Motor Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 38315 Drive Motor Block 2
2 38809 Straight Key 2
3 22115 5/16” - 18 x 1/2” Set Screw 2
4 38428 Key Retainer Washer 2
5 22044 3/8” x 3/4” Bolt 2
6 22167 1/2” x 1 1/4” Flat Head Bolt 2
7 38329 Brush Core Cap Plate 1
8 38308 6’ Brush Core 1
38309 8’ Brush Core 1
9 38432 Block Seal for Brush Motor 1
* Not Used On Opposite End
* BOM Includes Quantities For Both Ends
