Terramite TSS46 - Ground Drive Assembly

3.42
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

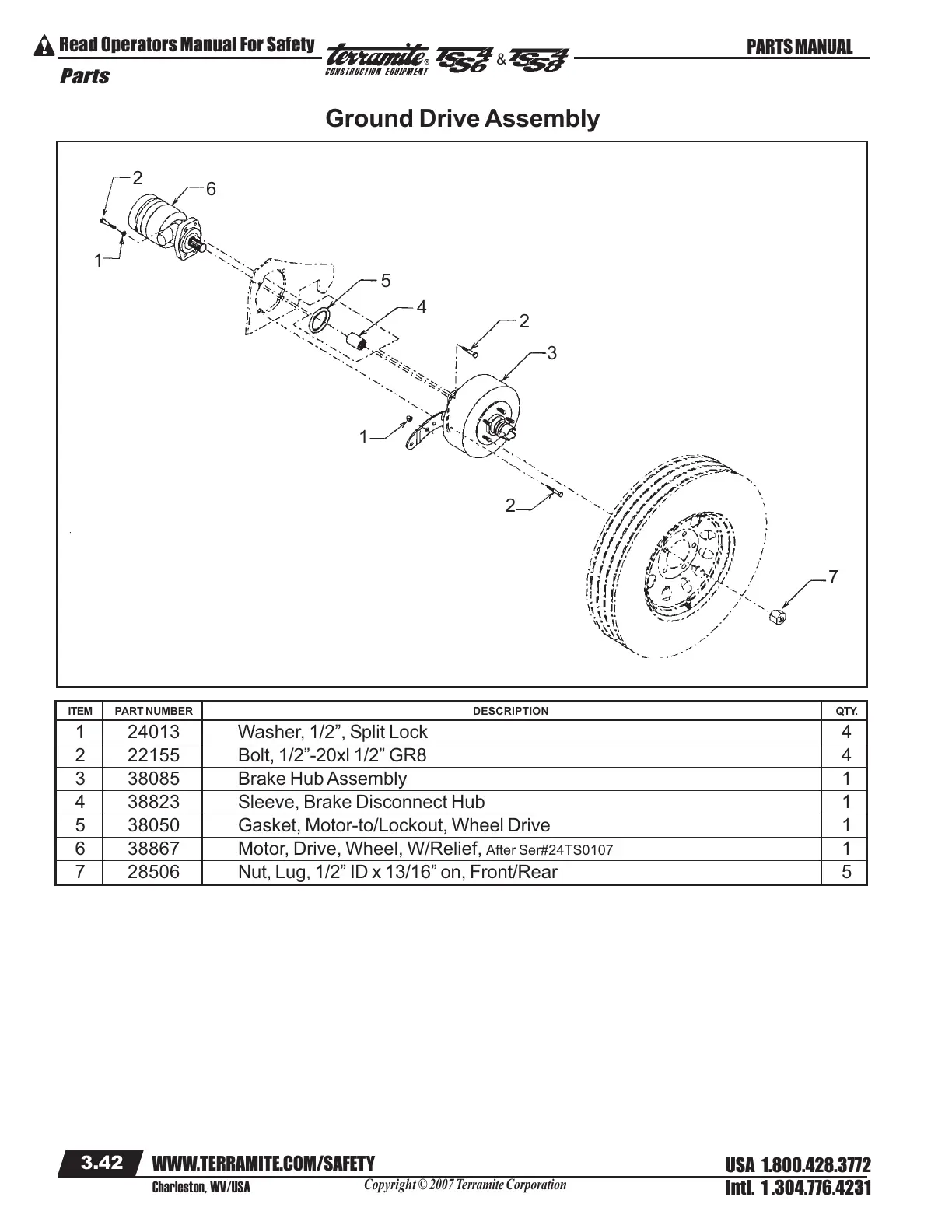

Ground Drive Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 24013 Washer, 1/2”, Split Lock 4
2 22155 Bolt, 1/2”-20xl 1/2” GR8 4
3 38085 Brake Hub Assembly 1
4 38823 Sleeve, Brake Disconnect Hub 1
5 38050 Gasket, Motor-to/Lockout, Wheel Drive 1
6 38867 Motor, Drive, Wheel, W/Relief, After Ser#24TS0107 1
7 28506 Nut, Lug, 1/2” ID x 13/16” on, Front/Rear 5
1
2
6
5
4
2
3
1
2
7
