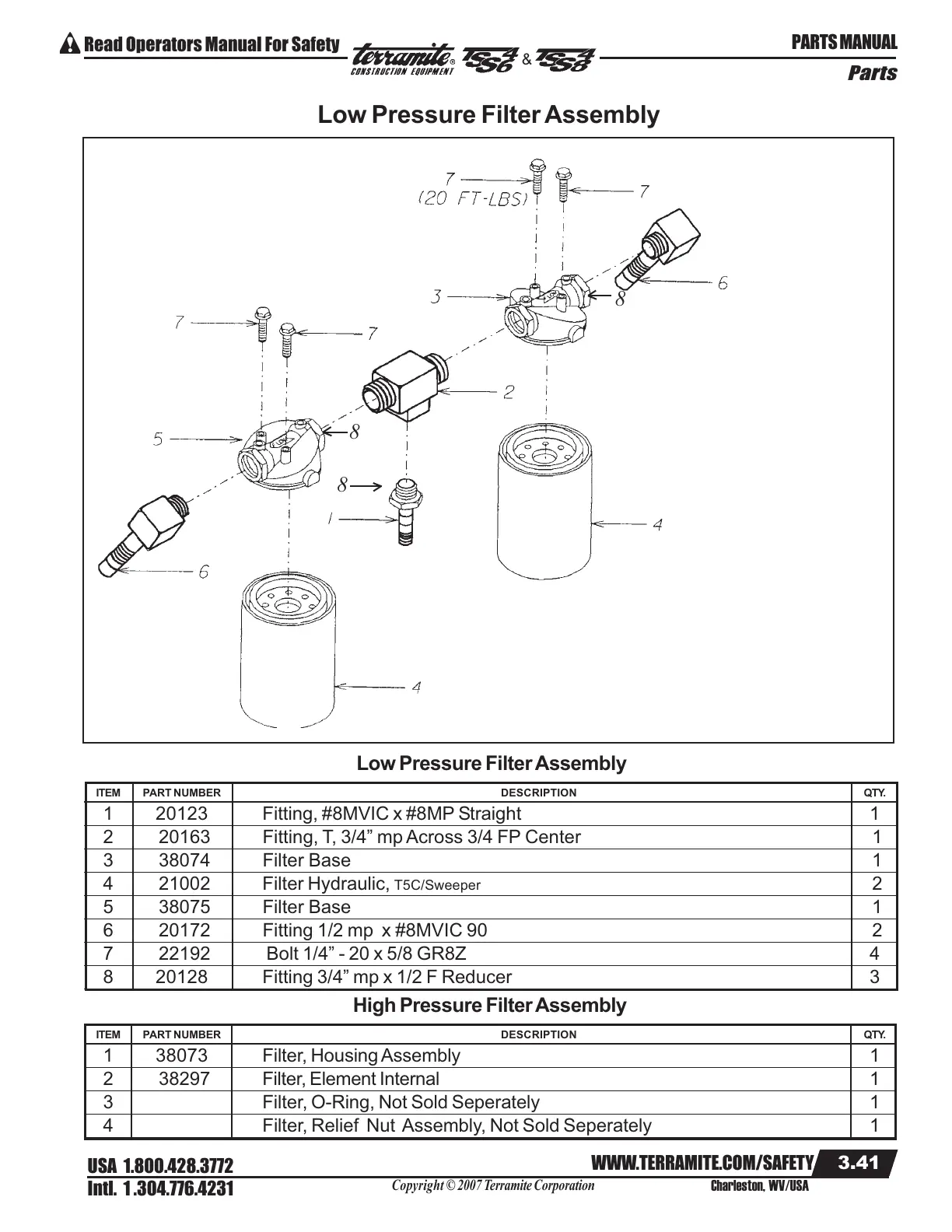

Low Pressure Filter Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 38073 Filter, Housing Assembly 1
2 38297 Filter, Element Internal 1
3 Filter, O-Ring, Not Sold Seperately 1
4 Filter, Relief Nut Assembly, Not Sold Seperately 1
ITEM PART NUMBER DESCRIPTION QTY.
1 20123 Fitting, #8MVIC x #8MP Straight 1
2 20163 Fitting, T, 3/4” mp Across 3/4 FP Center 1
3 38074 Filter Base 1
4 21002 Filter Hydraulic, T5C/Sweeper 2
5 38075 Filter Base 1
6 20172 Fitting 1/2 mp x #8MVIC 90 2
7 22192 Bolt 1/4” - 20 x 5/8 GR8Z 4
8 20128 Fitting 3/4” mp x 1/2 F Reducer 3
Low Pressure Filter Assembly
High Pressure Filter Assembly
8
8
8
