Terramite TSS46 - Sprayer Parts

3.26
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

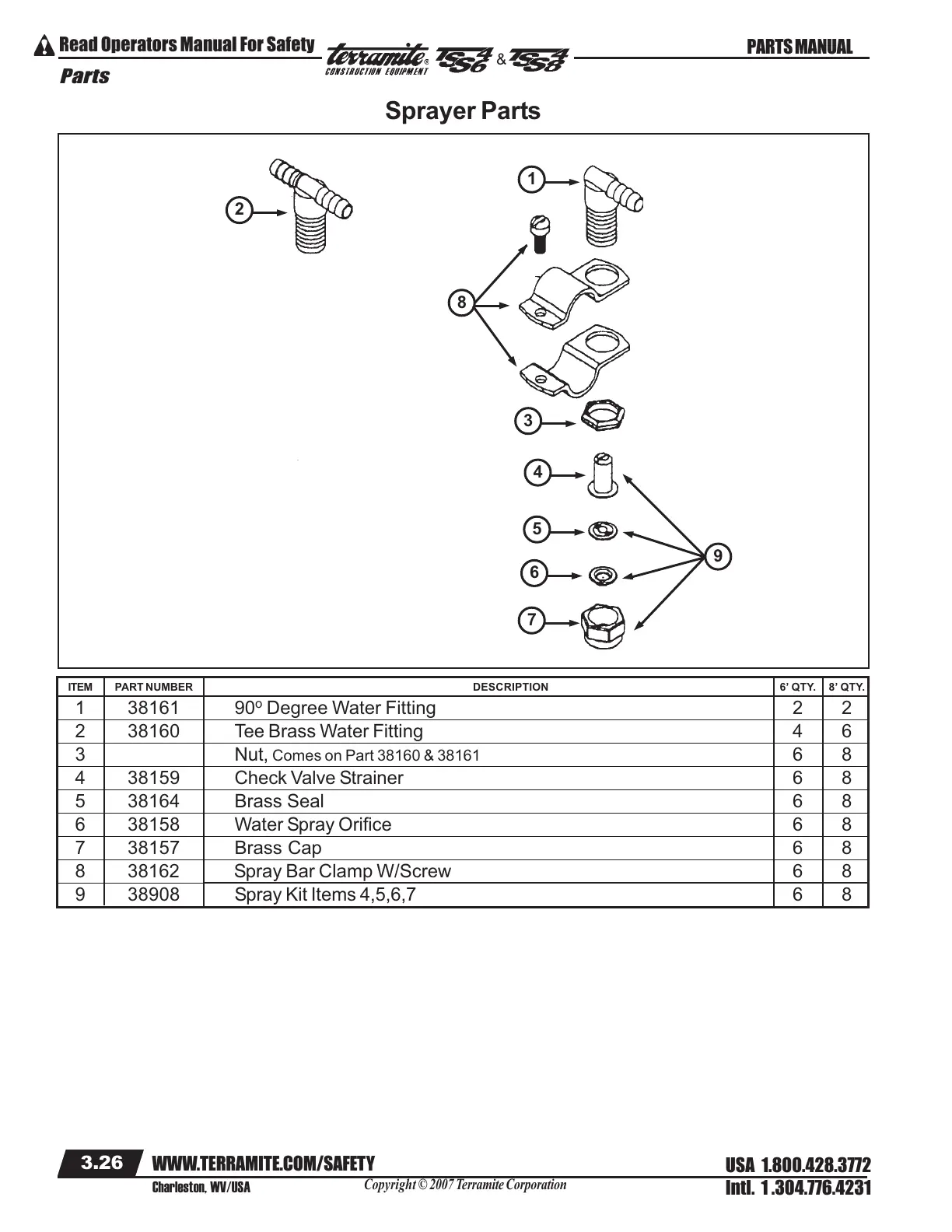

Sprayer Parts
ITEM PART NUMBER DESCRIPTION 6’ QTY. 8’ QTY.
1 38161 90
o
Degree Water Fitting 2 2
2 38160 Tee Brass Water Fitting 4 6
3 Nut, Comes on Part 38160 & 38161 68
4 38159 Check Valve Strainer 6 8
5 38164 Brass Seal 6 8
6 38158 Water Spray Orifice 6 8
7 38157 Brass Cap 6 8
8 38162 Spray Bar Clamp W/Screw 6 8
9 38908 Spray Kit Items 4,5,6,7 6 8
2
1
8
3
4
5
6
7
9
