Terramite TSS46 - View from Left Side of Operators Position

3.2
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

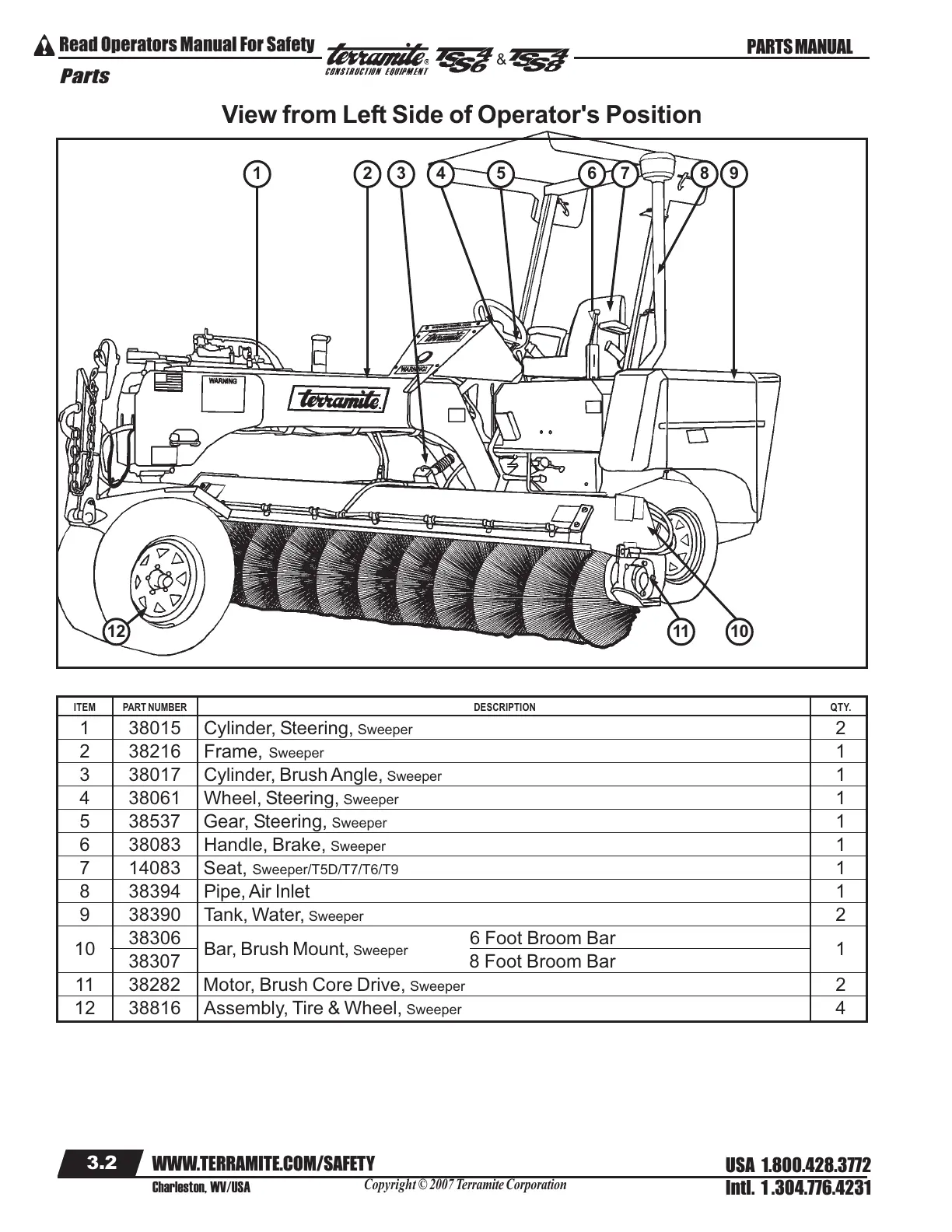

View from Left Side of Operator's Position
1 2 3 5 6 7 8 94
101112
ITEM PART NUMBER DESCRIPTION QTY.
1 38015 Cylinder, Steering, Sweeper 2
2 38216 Frame, Sweeper 1
3 38017 Cylinder, Brush Angle, Sweeper 1
4 38061 Wheel, Steering, Sweeper 1
5 38537 Gear, Steering, Sweeper 1
6 38083 Handle, Brake, Sweeper 1
7 14083 Seat, Sweeper/T5D/T7/T6/T9 1
8 38394 Pipe, Air Inlet 1
9 38390 Tank, Water, Sweeper 2
10
38306
Bar, Brush Mount, Sweeper
6 Foot Broom Bar
1
38307 8 Foot Broom Bar
11 38282 Motor, Brush Core Drive, Sweeper 2
12 38816 Assembly, Tire & Wheel, Sweeper 4
