Terramite TSS46 - View of Front with Tow Bar

3.4
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

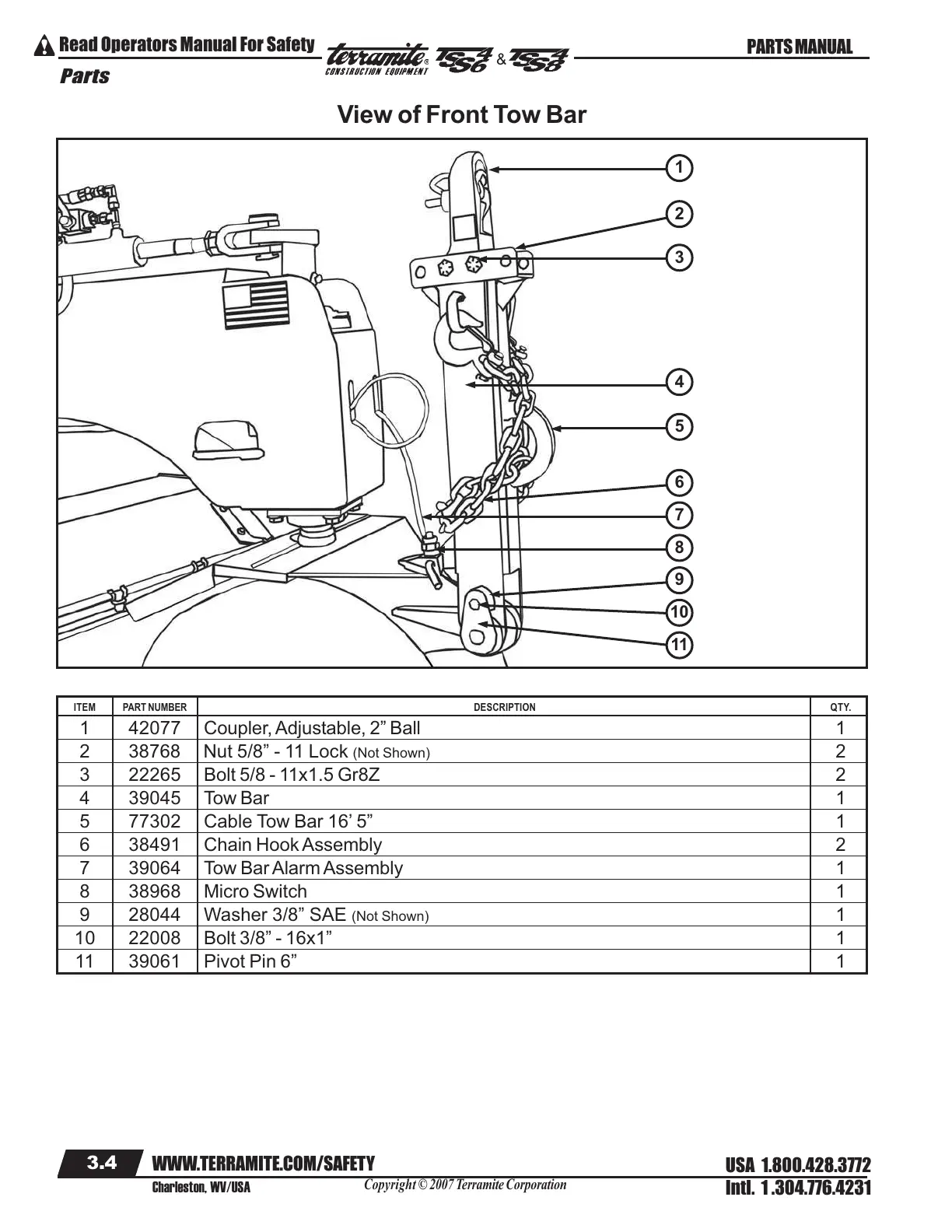

View of Front Tow Bar
ITEM PART NUMBER DESCRIPTION QTY.
1 42077 Coupler, Adjustable, 2” Ball 1
2 38768 Nut 5/8” - 11 Lock (Not Shown) 2
3 22265 Bolt 5/8 - 11x1.5 Gr8Z 2
4 39045 Tow Bar 1
5 77302 Cable Tow Bar 16’ 5” 1
6 38491 Chain Hook Assembly 2
7 39064 Tow Bar Alarm Assembly 1
8 38968 Micro Switch 1
9 28044 Washer 3/8” SAE (Not Shown) 1
10 22008 Bolt 3/8” - 16x1” 1
11 39061 Pivot Pin 6” 1
1
2
3
5
6
7
8
9
10
11
4
