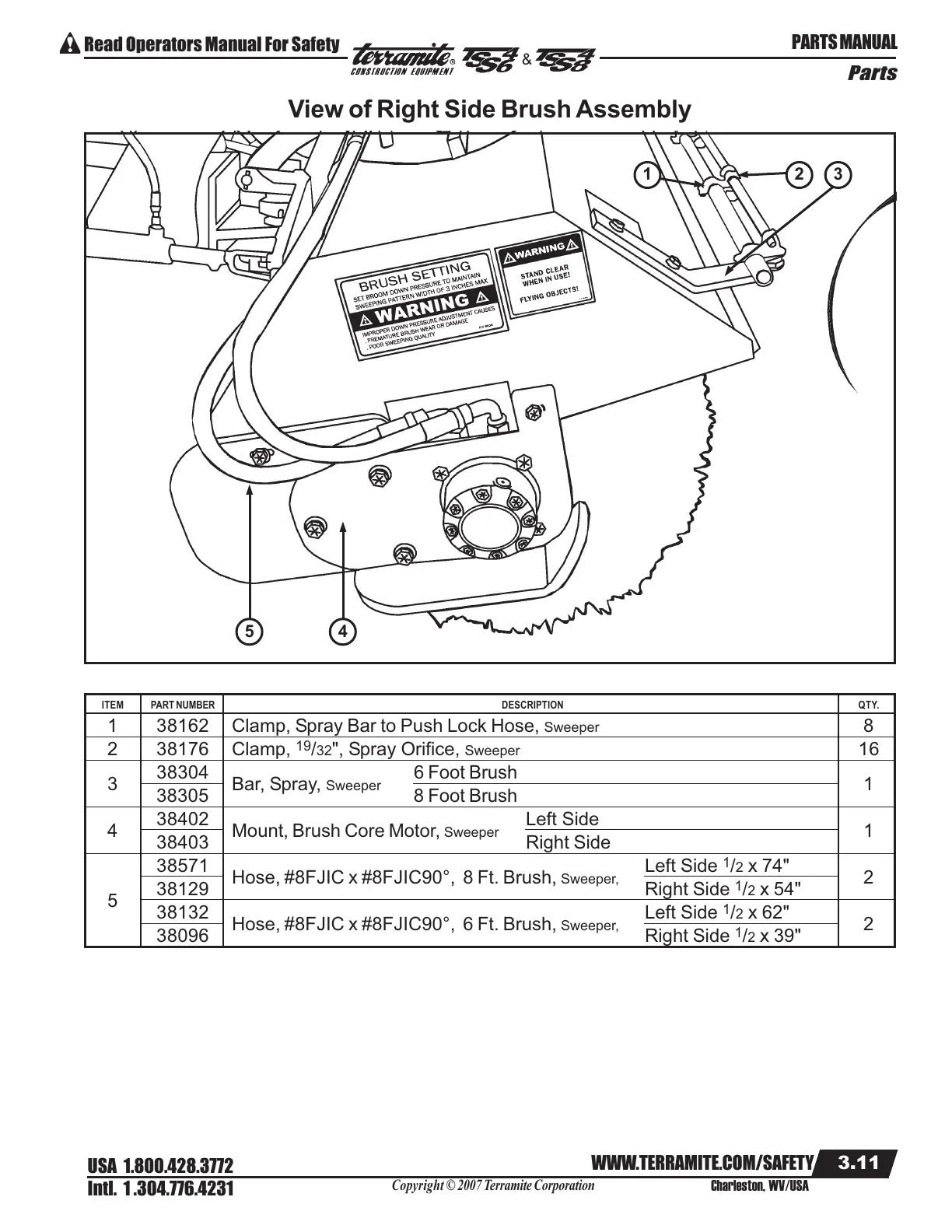

Terramite TSS46 - View of Right Side Brush Assembly

3.11
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&
View of Right Side Brush Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 38162 Clamp, Spray Bar to Push Lock Hose, Sweeper 8
2 38176 Clamp,
19
/32", Spray Orifice, Sweeper 16
3
38304
Bar, Spray, Sweeper
6 Foot Brush
1
38305 8 Foot Brush
4
38402
Mount, Brush Core Motor, Sweeper
Left Side
1
38403 Right Side
38571
Hose, #8FJIC x #8FJIC90°, 8 Ft. Brush, Sweeper,
Left Side
1
/2 x 74"
2
5
38129 Right Side
1
/2 x 54"
38132
Hose, #8FJIC x #8FJIC90°, 6 Ft. Brush, Sweeper,
Left Side
1
/2 x 62"
2
38096 Right Side
1
/2 x 39"
1 2 3
45
