Terramite TSS46 - 110 A Brush Motor Exploded View Parker

3.46
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

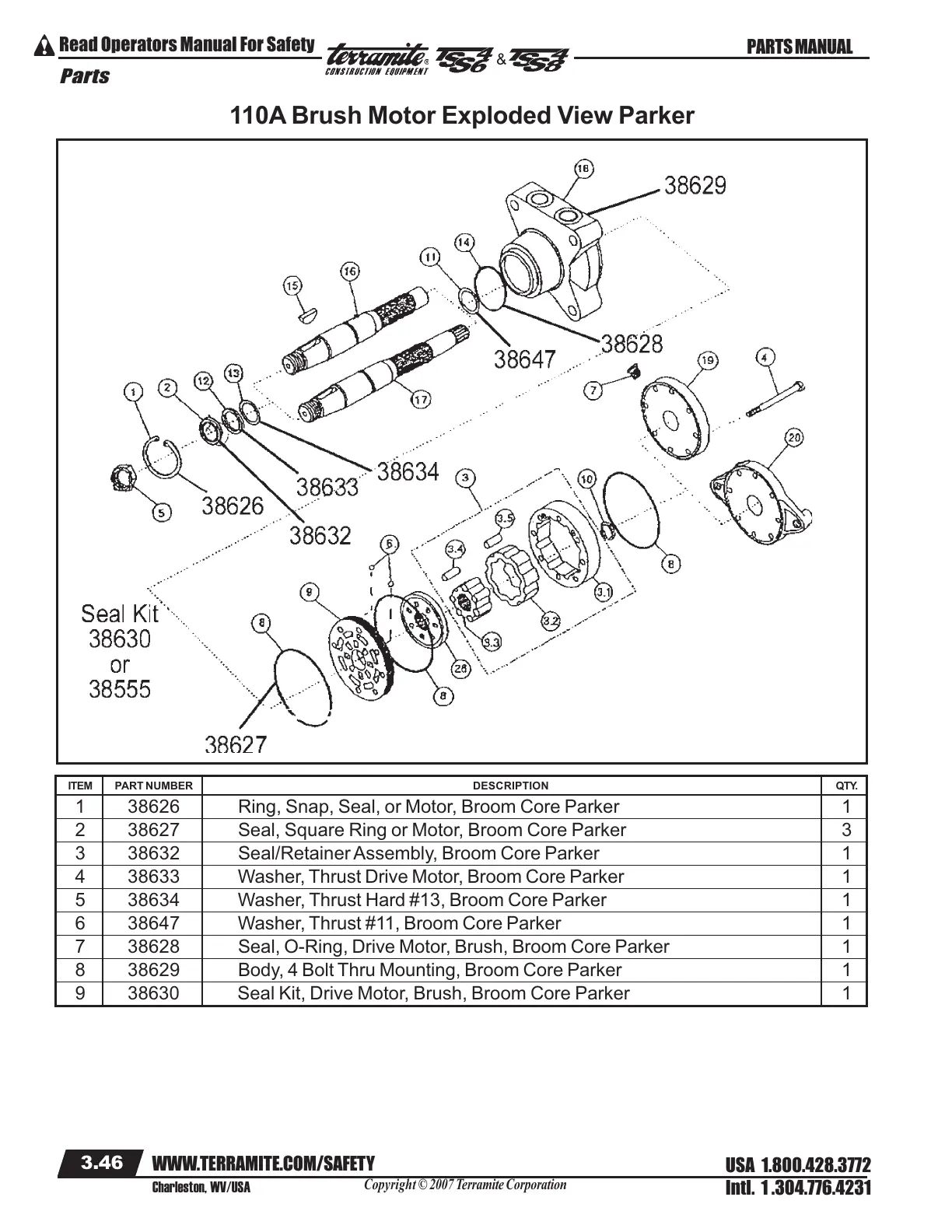

110A Brush Motor Exploded View Parker
ITEM PART NUMBER DESCRIPTION QTY.
1 38626 Ring, Snap, Seal, or Motor, Broom Core Parker 1
2 38627 Seal, Square Ring or Motor, Broom Core Parker 3
3 38632 Seal/Retainer Assembly, Broom Core Parker 1
4 38633 Washer, Thrust Drive Motor, Broom Core Parker 1
5 38634 Washer, Thrust Hard #13, Broom Core Parker 1
6 38647 Washer, Thrust #11, Broom Core Parker 1
7 38628 Seal, O-Ring, Drive Motor, Brush, Broom Core Parker 1
8 38629 Body, 4 Bolt Thru Mounting, Broom Core Parker 1
9 38630 Seal Kit, Drive Motor, Brush, Broom Core Parker 1
