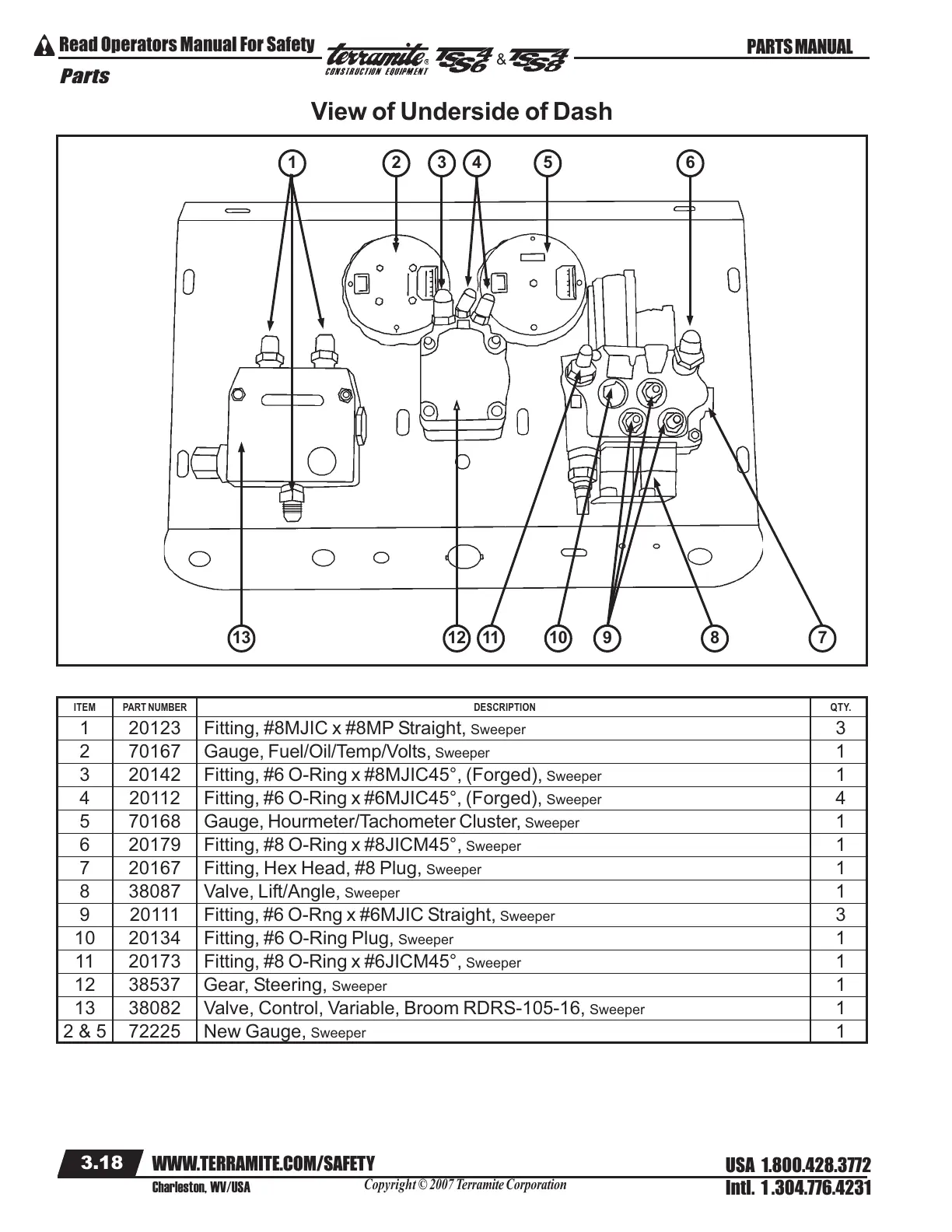

View of Underside of Dash
ITEM PART NUMBER DESCRIPTION QTY.
1 20123 Fitting, #8MJIC x #8MP Straight, Sweeper 3
2 70167 Gauge, Fuel/Oil/Temp/Volts, Sweeper 1
3 20142 Fitting, #6 O-Ring x #8MJIC45°, (Forged), Sweeper 1
4 20112 Fitting, #6 O-Ring x #6MJIC45°, (Forged), Sweeper 4
5 70168 Gauge, Hourmeter/Tachometer Cluster, Sweeper 1
6 20179 Fitting, #8 O-Ring x #8JICM45°, Sweeper 1
7 20167 Fitting, Hex Head, #8 Plug, Sweeper 1
8 38087 Valve, Lift/Angle, Sweeper 1
9 20111 Fitting, #6 O-Rng x #6MJIC Straight, Sweeper 3
10 20134 Fitting, #6 O-Ring Plug, Sweeper 1
11 20173 Fitting, #8 O-Ring x #6JICM45°, Sweeper 1
12 38537 Gear, Steering, Sweeper 1
13 38082 Valve, Control, Variable, Broom RDRS-105-16, Sweeper 1
2 & 5 72225 New Gauge, Sweeper 1
2 3 54 6
