Terramite TSS46 - Left Side View of Transmission;Pump Assembly

3.21
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

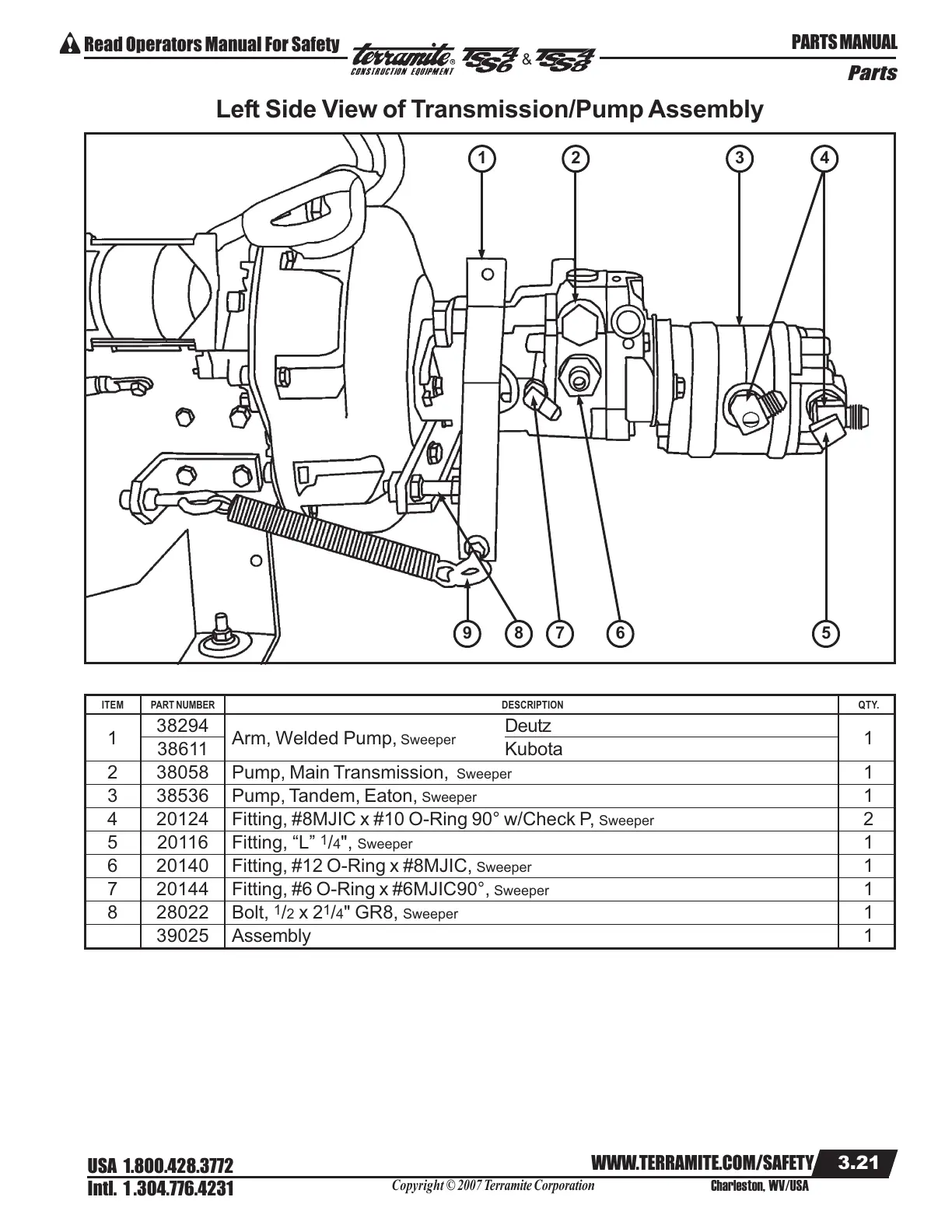

Left Side View of Transmission/Pump Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1
38294
Arm, Welded Pump, Sweeper
Deutz
1
38611 Kubota
2 38058 Pump, Main Transmission, Sweeper 1
3 38536 Pump, Tandem, Eaton, Sweeper 1
4 20124 Fitting, #8MJIC x #10 O-Ring 90° w/Check P, Sweeper 2
5 20116 Fitting, “L”
1
/4", Sweeper 1
6 20140 Fitting, #12 O-Ring x #8MJIC, Sweeper 1
7 20144 Fitting, #6 O-Ring x #6MJIC90°, Sweeper 1
8 28022 Bolt,
1
/2 x 2
1
/4" GR8, Sweeper 1
39025 Assembly 1
5
1 2 3 4
6789
