Terramite TSS46 - Page 46

3.24
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 38282 Steering Arm 1
2 28042
1
/
2
Washer 1
3 23034
1
/2 Lock Nut 1
4 22158
1
/2 Bolt 1
5 28047
5
/8 Washer 16
6 22166
5
/8 Lock Nut 8
7 38169 4 Bolt Flange Bearing 2
8 22160
5
/8 Bolt 8
9 38275 Sweeper Front Fork 1

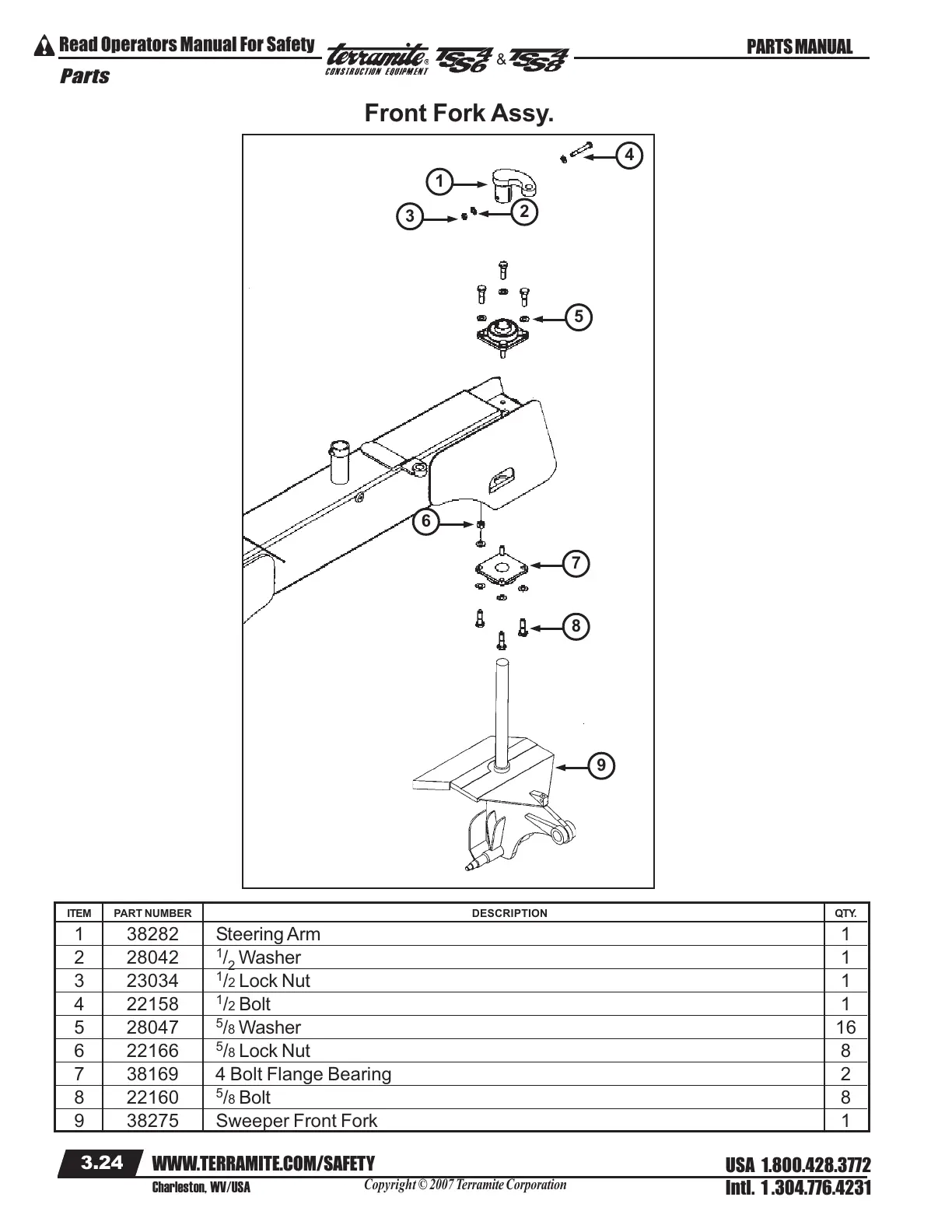

Front Fork Assy.
1
3
4
2
5
7
8
6
9
