PARTS MANUAL
Read Operators Manual For Safety
Parts
Copyright © 2007 Terramite Corporation
&

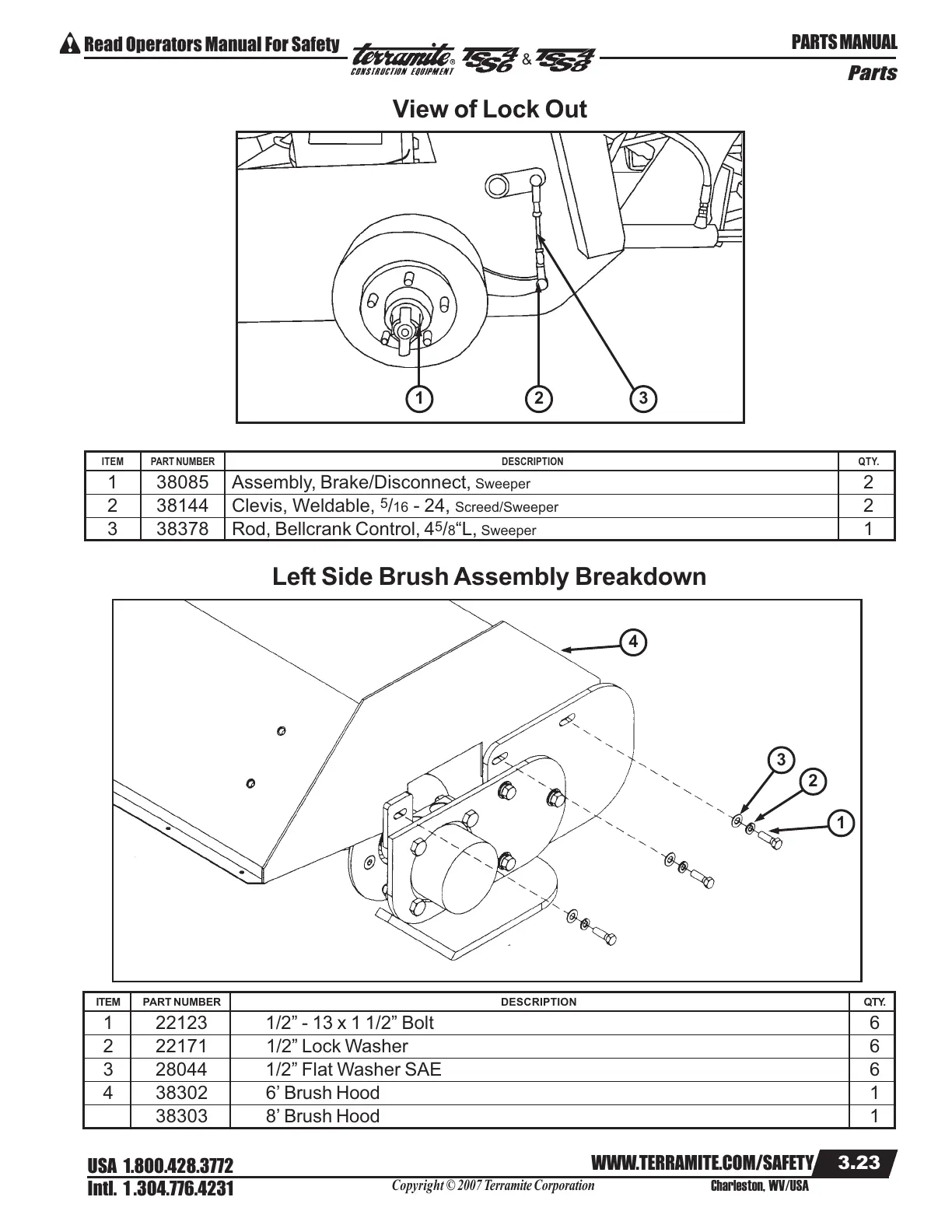

View of Lock Out
ITEM PART NUMBER DESCRIPTION QTY.
1 38085 Assembly, Brake/Disconnect, Sweeper 2
2 38144 Clevis, Weldable,
5
/16 - 24, Screed/Sweeper 2
3 38378 Rod, Bellcrank Control, 4
5
/8“L, Sweeper 1
1 2 3
Left Side Brush Assembly Breakdown
ITEM PART NUMBER DESCRIPTION QTY.
1 22123 1/2” - 13 x 1 1/2” Bolt 6
2 22171 1/2” Lock Washer 6
3 28044 1/2” Flat Washer SAE 6
4 38302 6’ Brush Hood 1
38303 8’ Brush Hood 1
1
2
3
4
