SoundSystem DMX 41
!
The AUX Input.
The SoundSystem DMX comes equipped with an internal audio input
for video cards, for example. You could also connect a CD drive here.
It has a separate volume control on the DMX ControlPanel.
The Basics.
The SoundSystem DMX is equipped with an extra input for additional PC peripheral devices.
At the internal AUX input labeled CN4, a video card / grabber card or the analog output of a
DVD card can be connected, for example. You could also connect another CD drive, although,
the input sensitivity at the AUX connection is slightly lower than at the CD inputs (approx.
1Vrms for AUX input, approx. 1.5Vrms for the CD inputs).
The volume control is found on the DMX ControlPanel under the controller labeled "AUX".
When recording select the setting "MIDI2/AUX" under "Record".
Important: What you need to recognize about the combined setting for MIDI and the AUX
connection is that the signal of the daughter board docked to the wavetable connector runs
concurrently with AUX signal. Contrary to both CD inputs, these are not electronically
separated from one another. Therefore, simultaneous operation should be avoided when
possible. If you stick two devices into "one line", you will experience considerable signal loss
of both devices. In addition, we cannot guarantee that this will not have long-term negative
effect on both devices.
The connector jack is compatible with the widely available MPC3 standard.

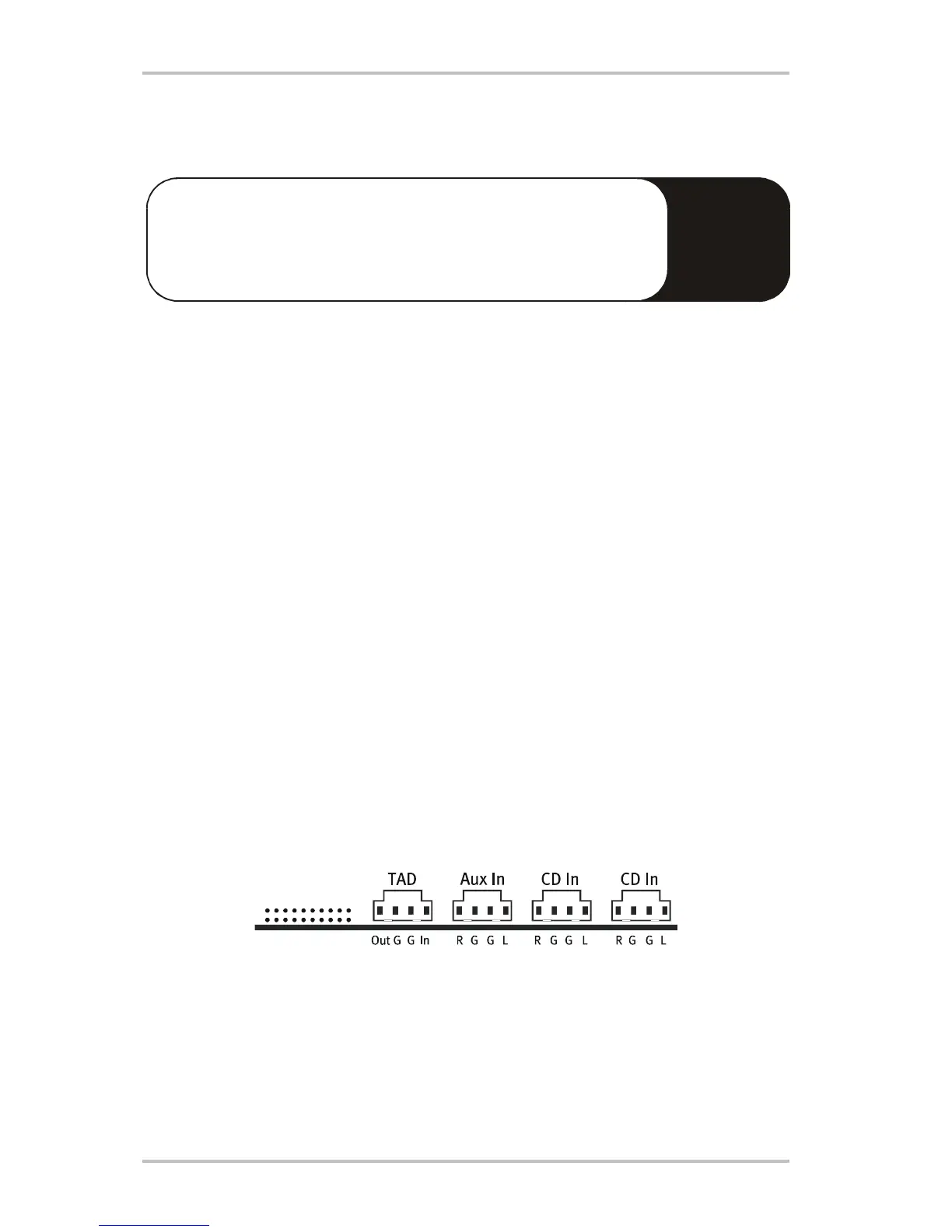

The pin configuration of the signal and ground circuit is shown in the following:
CN3
CN5
CN4 CD2 CD1
A suitable cable usually comes with the product or can be purchased at specialty stores.
