44 SoundSystem DMX
!
The TAD (Telephone Answering Device) Input
The SoundSystem DMX comes equipped with an internal audio input
for modem cards with voice functions. It has a separate volume
control on the ControlPanel.
The Basics.
The SoundSystem DMX is equipped with a special input for an integrated voice modem or
telephone system. The volume control is found on the DMX ControlPanel under the controller
labeled "TAD". When recording, select the "TAD" setting under "Record" – who would have
thought?
The connector jack is compatible with the widely available MPC3 standard.

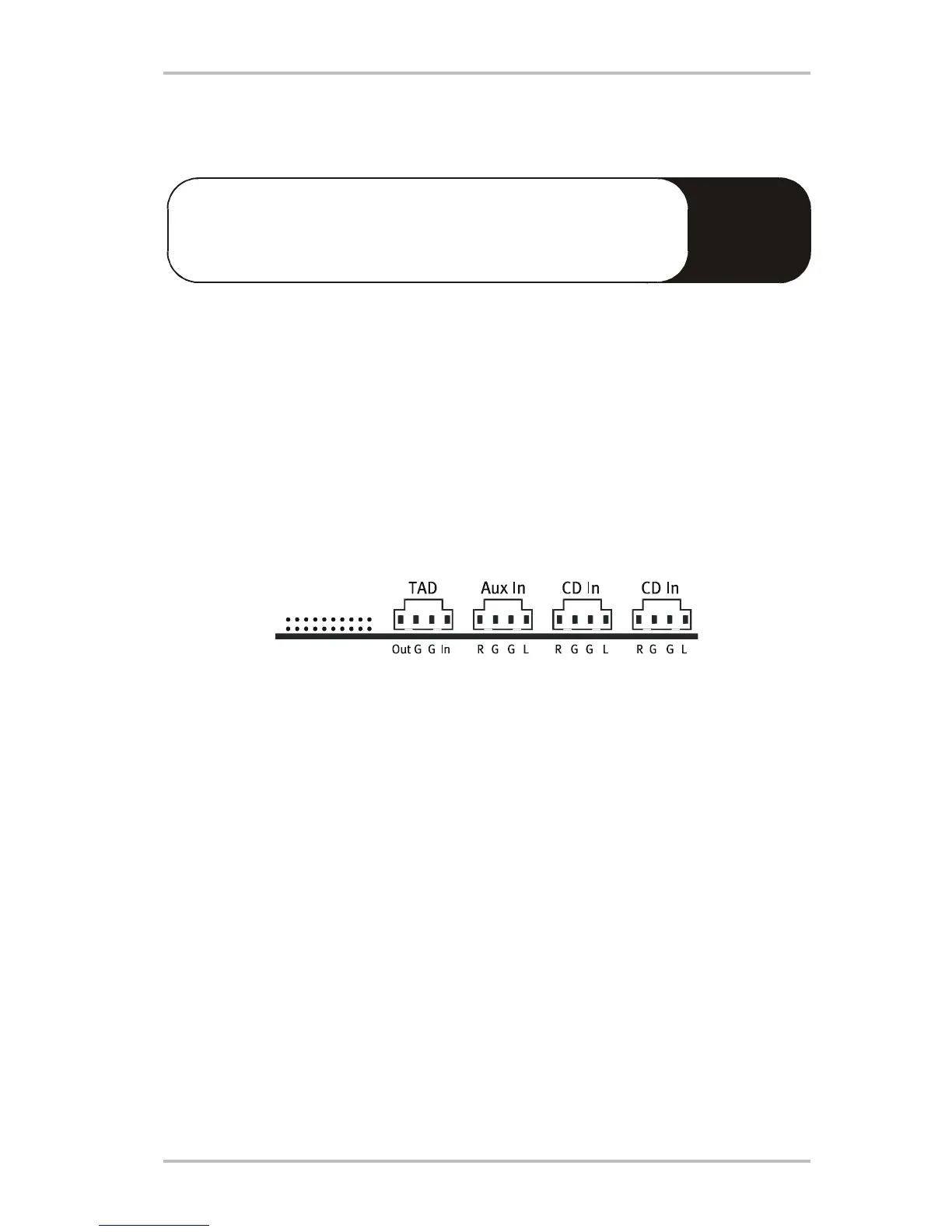

The pin configuration of the signal and ground circuit is shown in the following:
CN3
CN5
CN4 CD2 CD1
A suitable cable usually comes with the product or can be purchased at specialty stores.
