Chapter 3
SNOU137–May 2015
LDC1101EVM PC Software (GUI)
The LDC1101EVM uses PC-based application software for device configuration and to retrieve conversion
results. The LDC1101 EVM software can be used to evaluate the performance and functionality of the
LDC1101 in a simple and flexible GUI configuration. The controls provided correspond to various register
fields of the LDC1101 or EVM features (e.g. the RPMIN field setting for the LDC1101).

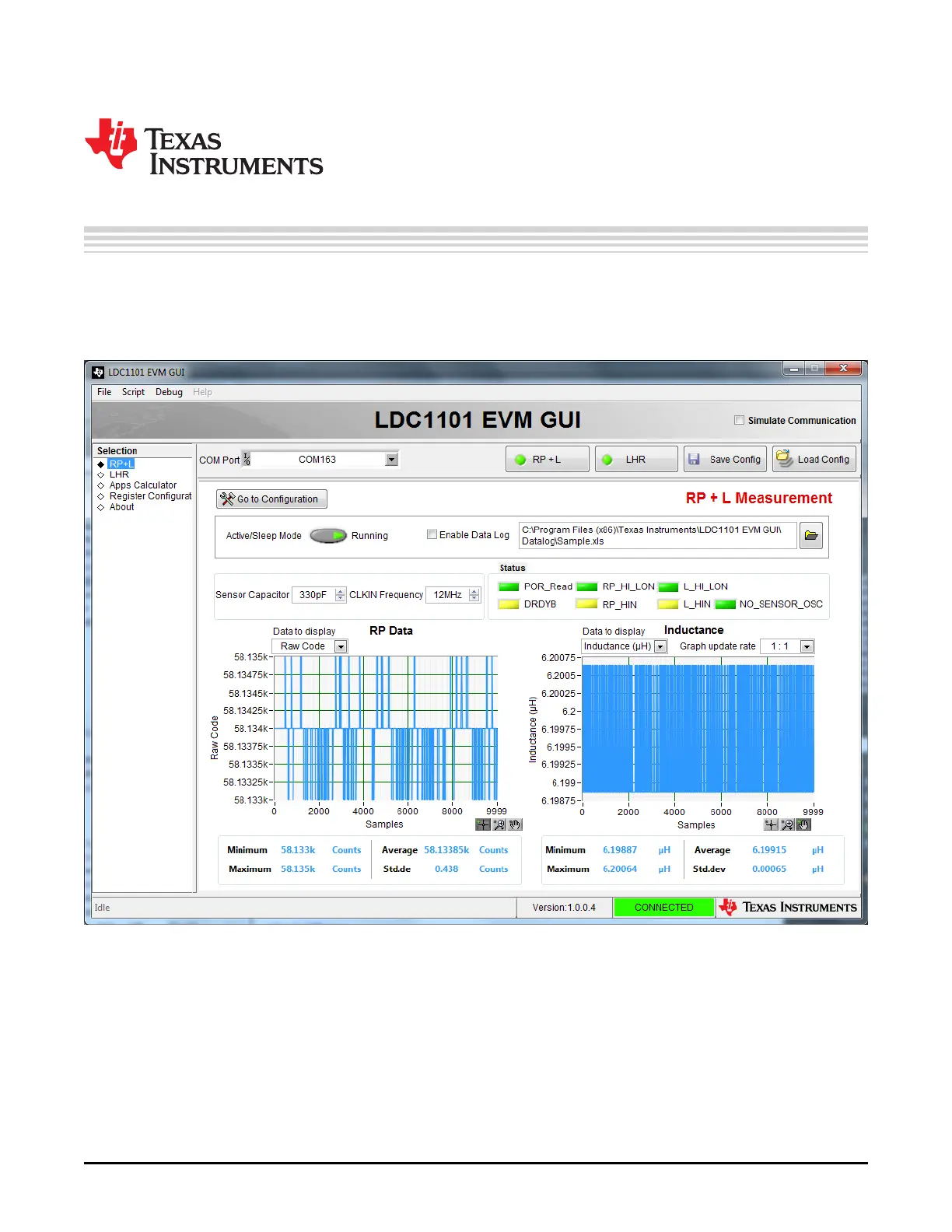

Figure 3-1. LDC1101EVM GUI
3.1 Host Platform Requirements
The LDC1101EVM GUI can run on:
• Windows XP
• Windows 7 (32 & 64 Bit)
• Windows 8 (32 & 64 Bit)
Other platforms are not supported and may not properly operate.
11
