3.9 LHR Page
The LHR Page allows for configuration of the High Resolution Inductance measurements and plots
conversion results. The Streaming section displays conversion result on a graph.

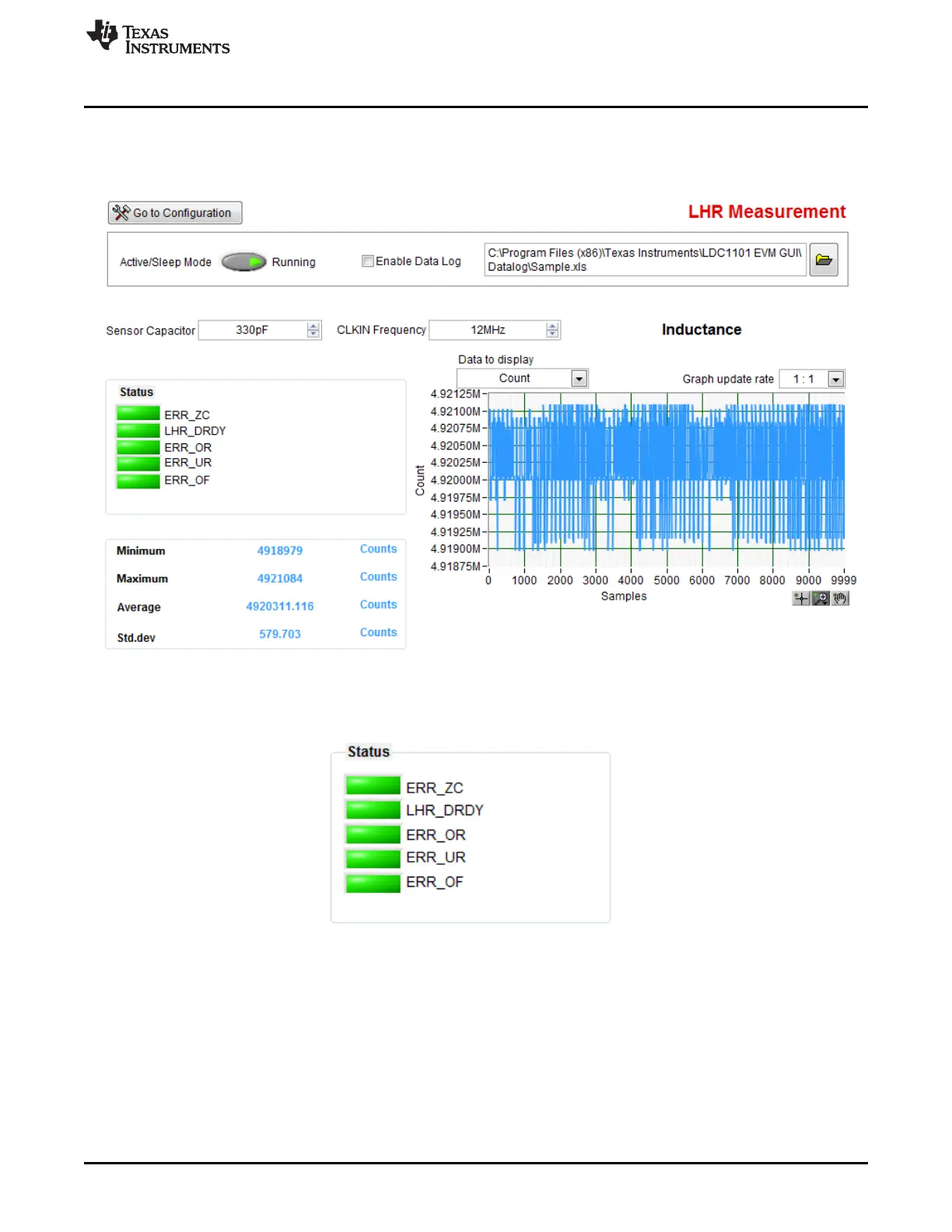

Figure 3-14. LDC1101 Control Software: LHR Page Streaming
Refer to Section 3.13 for information on the features and usage of the graphing area.
Figure 3-15. LHR Status
The LDC1101 LHR_Status Register (address 0x3B) returns information on LHR measurement status. The
status is reported as a set of colored indicators in the Status section, where Green indicates the condition
was not reported (the corresponding bit = 0).
