Texas Instruments MSP430F5529

P8.0
P8.1
P8.2
Direction
0:Input
1:Output
P8SEL.x
1
0
P8DIR.x
P8IN.x
EN
toPortMappingControl
1
0
fromPortMappingControl
P8OUT.x
1
0
DV
SS
DV
CC
P8REN.x
PadLogic
1
P8DS.x
0:Lowdrive
1:Highdrive
D
fromPortMappingControl
MSP430F5529 , MSP430F5528 , MSP430F5527 , MSP430F5526
MSP430F5525 , MSP430F5524 , MSP430F5522 , MSP430F5521
MSP430F5519, MSP430F5517, MSP430F5515, MSP430F5514, MSP430F5513
SLAS590M –MARCH 2009–REVISED NOVEMBER 2015 www.ti.com

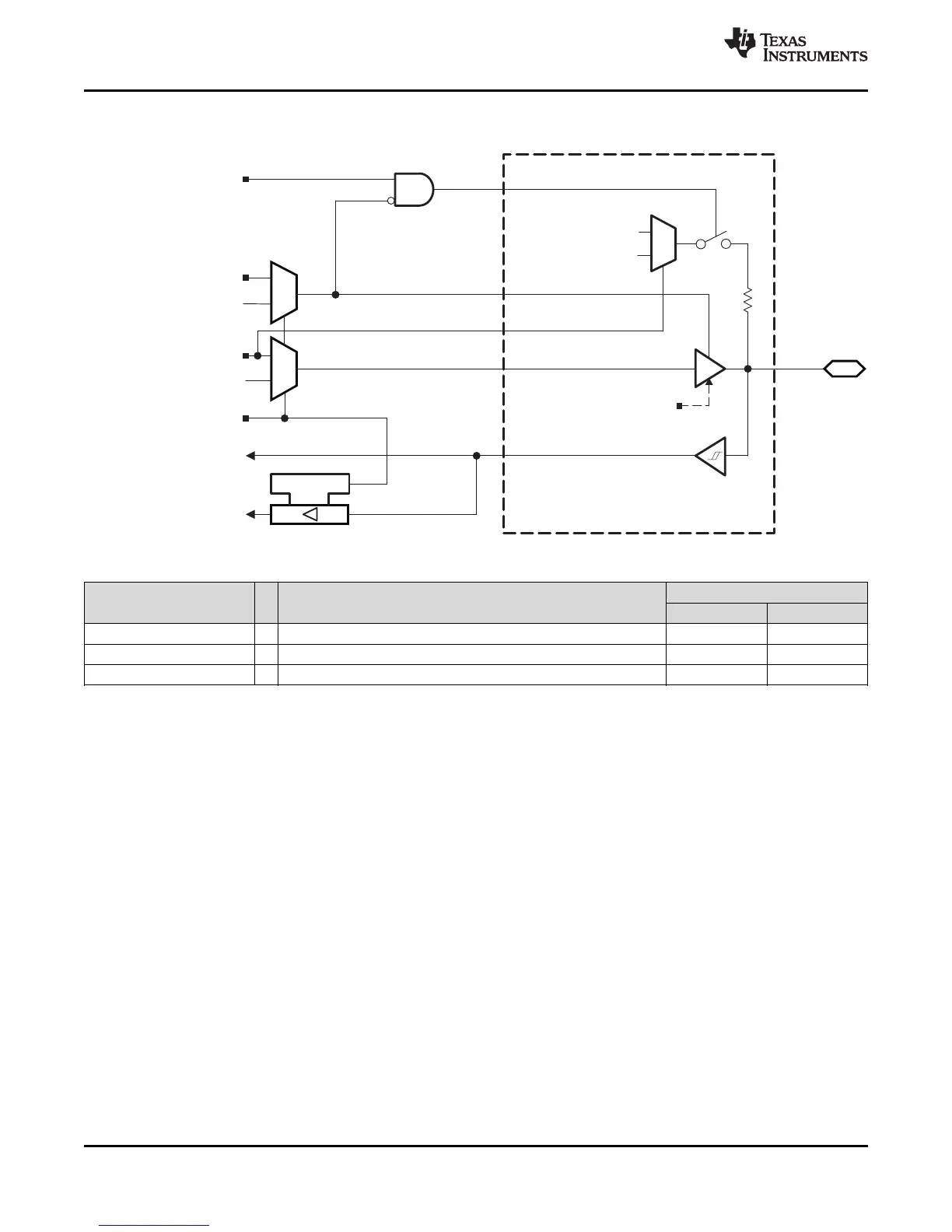

6.10.12 Port P8, P8.0 to P8.2, Input/Output With Schmitt Trigger
Table 6-57. Port P8 (P8.0 to P8.2) Pin Functions
CONTROL BITS OR SIGNALS
PIN NAME (P8.x) x FUNCTION
P8DIR.x P8SEL.x
P8.0
(1)
0 P8.0(I/O) I: 0; O: 1 0
P8.1
(1)
1 P8.1(I/O) I: 0; O: 1 0
P8.2
(1)
2 P8.2(I/O) I: 0; O: 1 0
(1) F5529, F5527, F5525, F5521, F5519, F5517, F5515 devices only
