(1) Center to center spacing is allowed to fall to minimum (w) for up to 500 mils of routed length to accommodate BGA escape and routing
congestion.
(2) w = PCB trace width as defined in Table 6-27.
(3) Series terminator, if used, should be located closest to device.
(4) CACLM is the longest Manhattan distance of the CK and ADDR_CTRL net classes.
6.11.3.11 DDR2/mDDR CK and ADDR_CTRL Routing

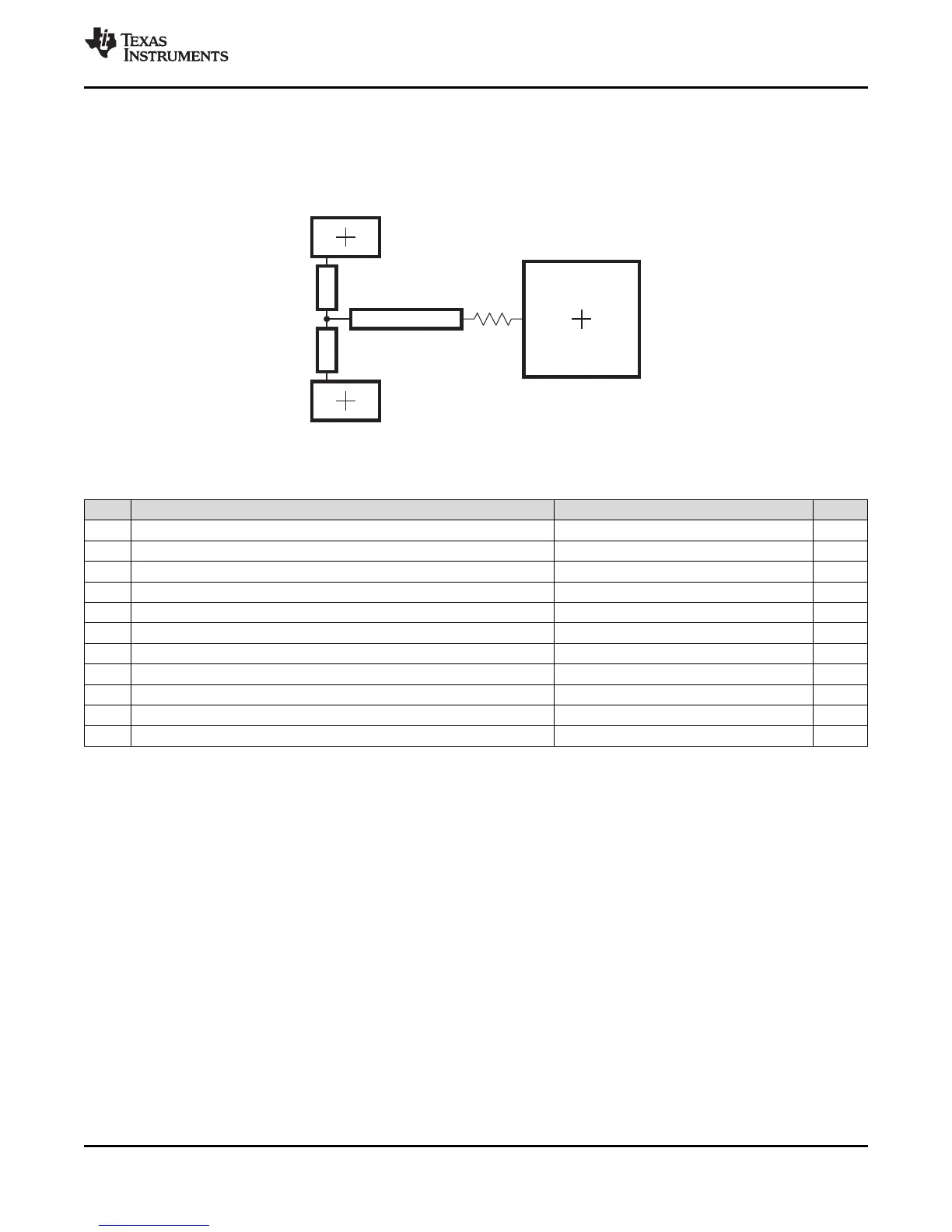

Figure 6-23 shows the topology of the routing for the CK and ADDR_CTRL net classes. The route is a
balanced T as it is intended that the length of segments B and C be equal. In addition, the length of A
should be maximized.
Figure 6-23. CK and ADDR_CTRL Routing and Topology
Table 6-34. CK and ADDR_CTRL Routing Specification
NO. PARAMETER MIN TYP MAX UNIT
1 Center to Center CK-CKN Spacing
(1)
2w
(2)
2 CK A to B/A to C Skew Length Mismatch
(3)
25 Mils
3 CK B to C Skew Length Mismatch 25 Mils
4 Center to center CK to other DDR2/mDDR trace spacing
(1)
4w
(2)
5 CK/ADDR_CTRL nominal trace length
(4)
CACLM-50 CACLM CACLM+50 Mils
6 ADDR_CTRL to CK Skew Length Mismatch 100 Mils
7 ADDR_CTRL to ADDR_CTRL Skew Length Mismatch 100 Mils
8 Center to center ADDR_CTRL to other DDR2/mDDR trace spacing
(1)
4w
(2)
9 Center to center ADDR_CTRL to other ADDR_CTRL trace spacing
(1)
3w
(2)
10 ADDR_CTRL A to B/A to C Skew Length Mismatch
(3)
100 Mils
11 ADDR_CTRL B to C Skew Length Mismatch 100 Mils
