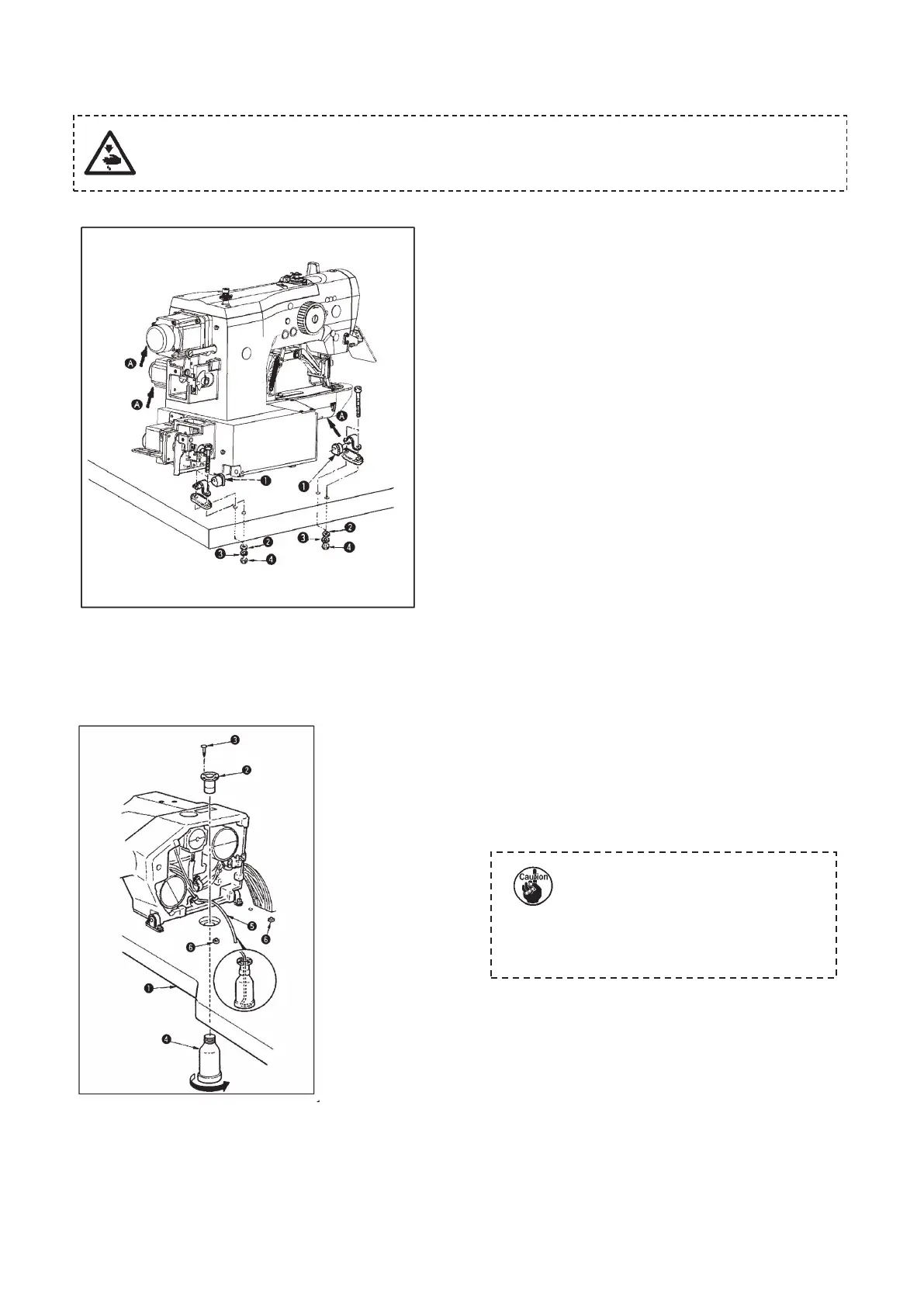

TEXI Catenaccio operation manual
5. Installation of the sewing machine head
6. Installing the drain receiver and the head support rubber
1). Fit hinge rubber ① to the hinge shaft, and fix the
sewing machine main unit.
2). The flat pad (2), elastic pad (3), nut icn (4)followed
by a fixed, pay attention to the locking nut (4)force,
if twisted too tightly, then the shock result is not
satisfactory.
WARNING: To prevent possible accidents caused by the full of the sewing machine, perform the work
by two persons or more when the machine is moved.
1). Fix drain receiver (2) in the installing hole of table (1)
with four setscrews (3). Screw in drain bin (4) to
drain receiver (2). Insert sewing machine drain pipe
(5) into drain bin (2).
2). Insert head support rubber (6) into table (1).
Insert drain pipe (5) until it will go on
further so that it does not come off drain bin (4)
when tilting the machine head.
