TEXI Catenaccio operation manual
11-7. CP-7（Test Thread-catching Motor/ Origin Sensor）
Display the step operation of thread-catching motor, the statuses of thread-catching motor origin sensor and thread-catching
sensor and operation of origin search.
1. Preparation
Firstly, user shall press to have access to CP-7; then press to turn on the Sewing LED. Depress the
pedal to search origin. After that the screen will display “10”.
2. Operation
By pressing & , user can let thread-catcher move in step with the pulse as unit. Press to drive the
thread-catcher backward; press to drive the thread-catcher forward.

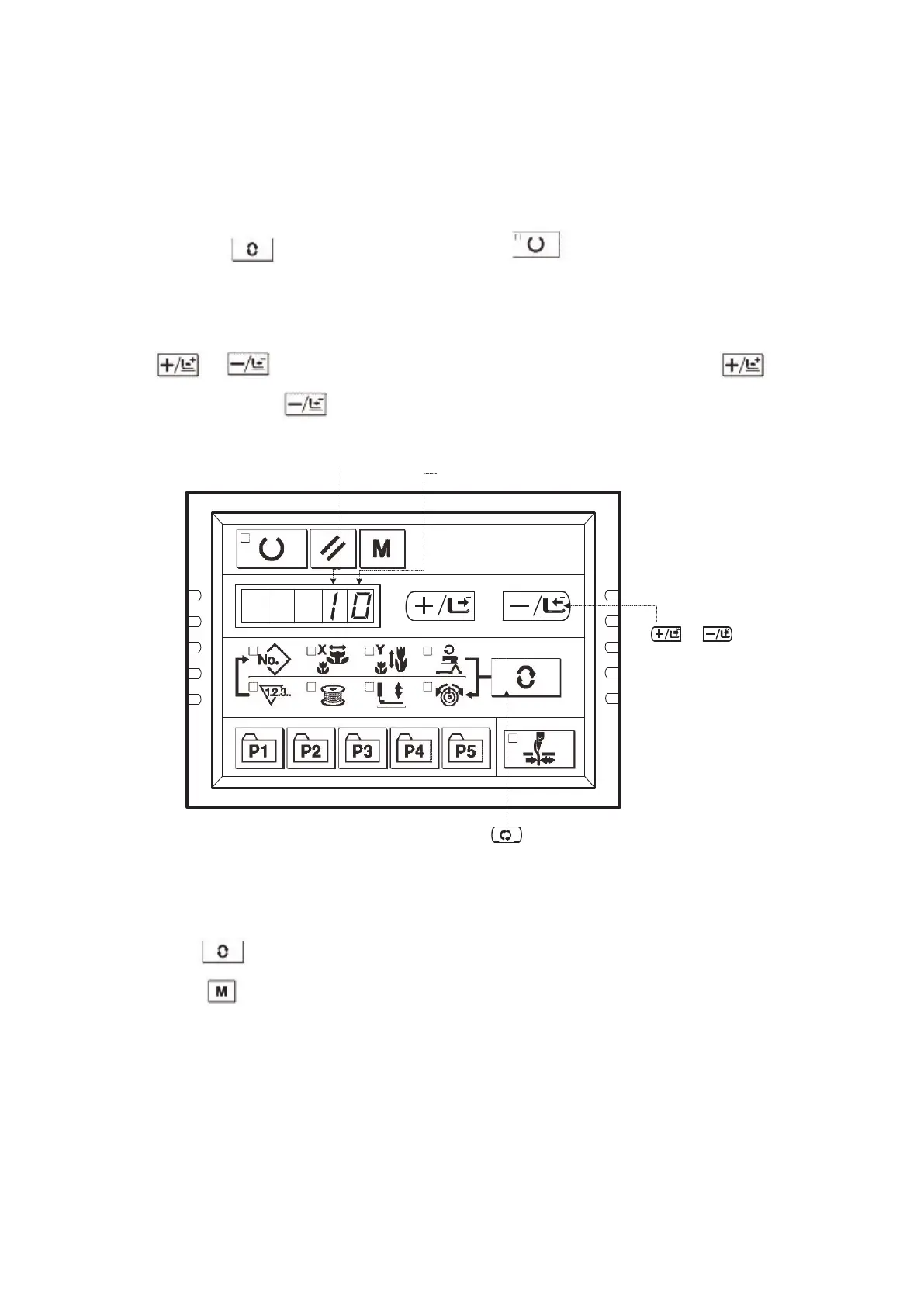

After user presses , the relating parts on the machine will do the 4-step cyclic action in the sequence shown in
above figure. Press to quit that mode.
Status of thread-catching sensor: “0” or “1”
Status of thread-catching origin sensor: “0” or “1”
By pressing , user can drive the thread-holder
motor to each pointed position:
1. Readiness position;
2. Thread –seizing Position;
3. Thread –catching position
4. Retreat position
Use & to
drive the thread-holding motor
at -/+ direction with the step
of pulses.
