TEXI Catenaccio operation manual
11-5. CP-5 Adjustment on Thread-trimming
Display the step motion of thread-trimming motor and the thread-trimming actions of moving to thread-curving position,
thread-trimming, knife return, and return-to-origin.
(1). Preparation
Press to have access to CP-5.
(2). Operation

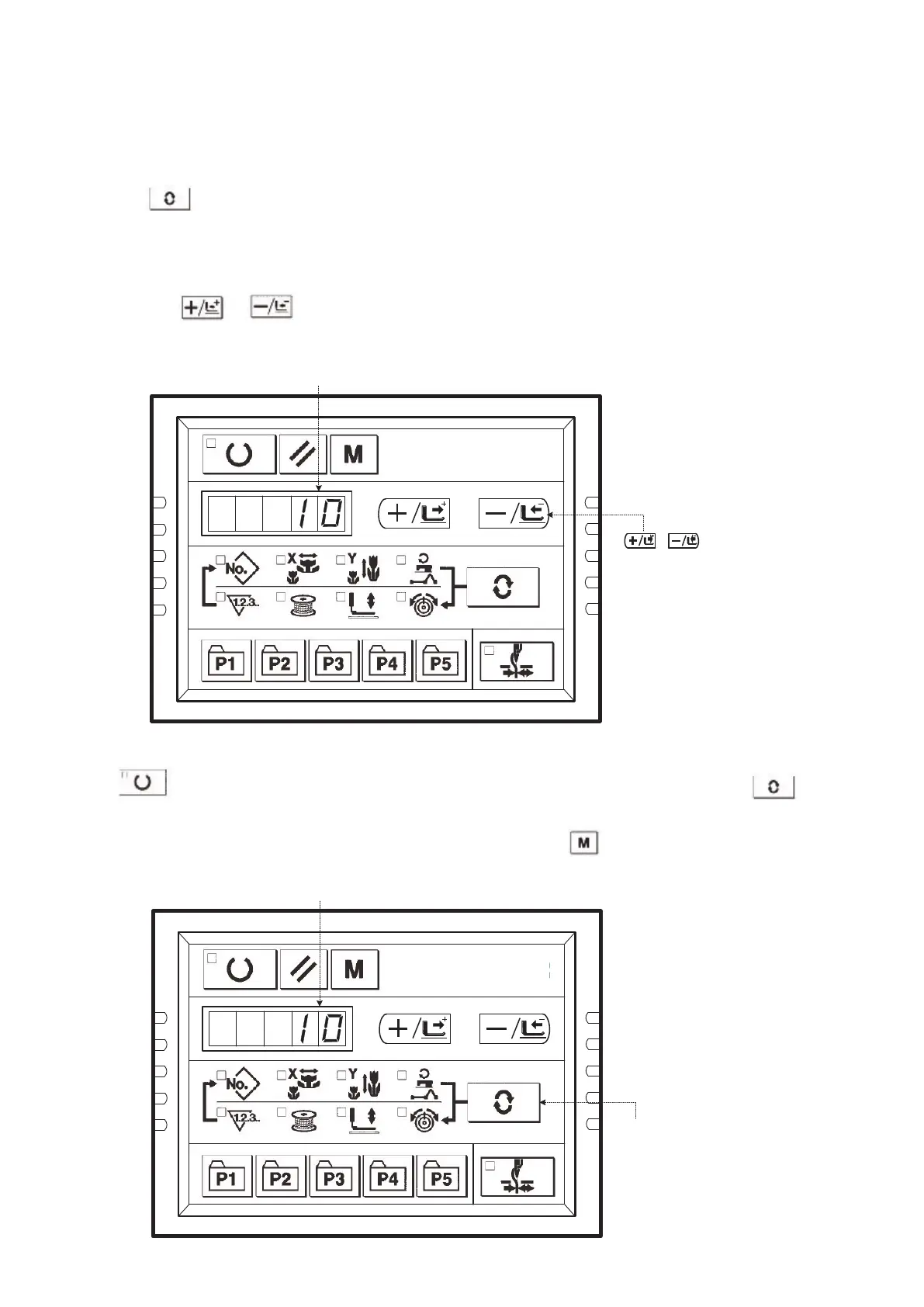

1. Operation of step motion of thread-trimming motor
User can press & to operate the step motion of thread-trimming motor. This function is for the staffs at
their installing and debugging the knife.
2. Thread-trimming Action
Press to turn on the Sewing LED, and then depress the pedal for searching the origin; by pressing for
times, users can let the thread-trimming motor perform the four actions, such as motion to thread-curving position, thread-
trimming, knife return, and return-to-origin. For quitting this mode, please press .
Status of thread-trimming sensor: “00” light-shield works
“10” light-shield not works
When Sewing LED is on, user can
press this button to let the thread-
trimming motor perform the four
actions, such as motion to thread-
curving position, thread-trimming,
knife return, and return-to-origin
Status of thread-trimming sensor: “00” light-shield works
“10” light-shield not works
Use 、 to drive the
thread-trimming motor at +/-
direction with the step of pulses.
