9. Replenishing the designated places with grease
When the sewing machine has been used for a certain number of times of sewing, error code No. E220 is displayed on the
operation panel at the time of turning ON the power. This display informs the operator of the time of replenishing the
designated places with grease. Be sure to replenish the places with the grease below. Then call the memory switch No. 245
and set it to "0" with the RESET key. Even after the display of the error No. E220, when the RESET key is pressed, the error
is released, and the sewing machine can be continuously used. Afterwards, however, the error No. E220 is displayed every
time the power is turned ON.
In addition, when the sewing machine is used further for a certain period of time after the display of error No. E220, the error
No. E221 is displayed and the sewing machine fails to operate since the error cannot be released even when the RESET
key is pressed.
When the error No. E221 is displayed, be sure to replenish the designated places below with grease. Then start up the
memory switch and set No. 245 to "0" with the RESET key.
1. After replenishing the places with grease, the error No. E220 or No. E221 is displayed again unless the
memory switch No. 245 is changed to "0".
2. Use grease tube (Part No. 40013640) supplied as accessories to replenish the designated places below
with grease.If grease other than the designated one is replenished, damage of components will be caused.
Turn OFF the power before starting the work so as to prevent accidents cause by
abrupt start of the sewing machine.

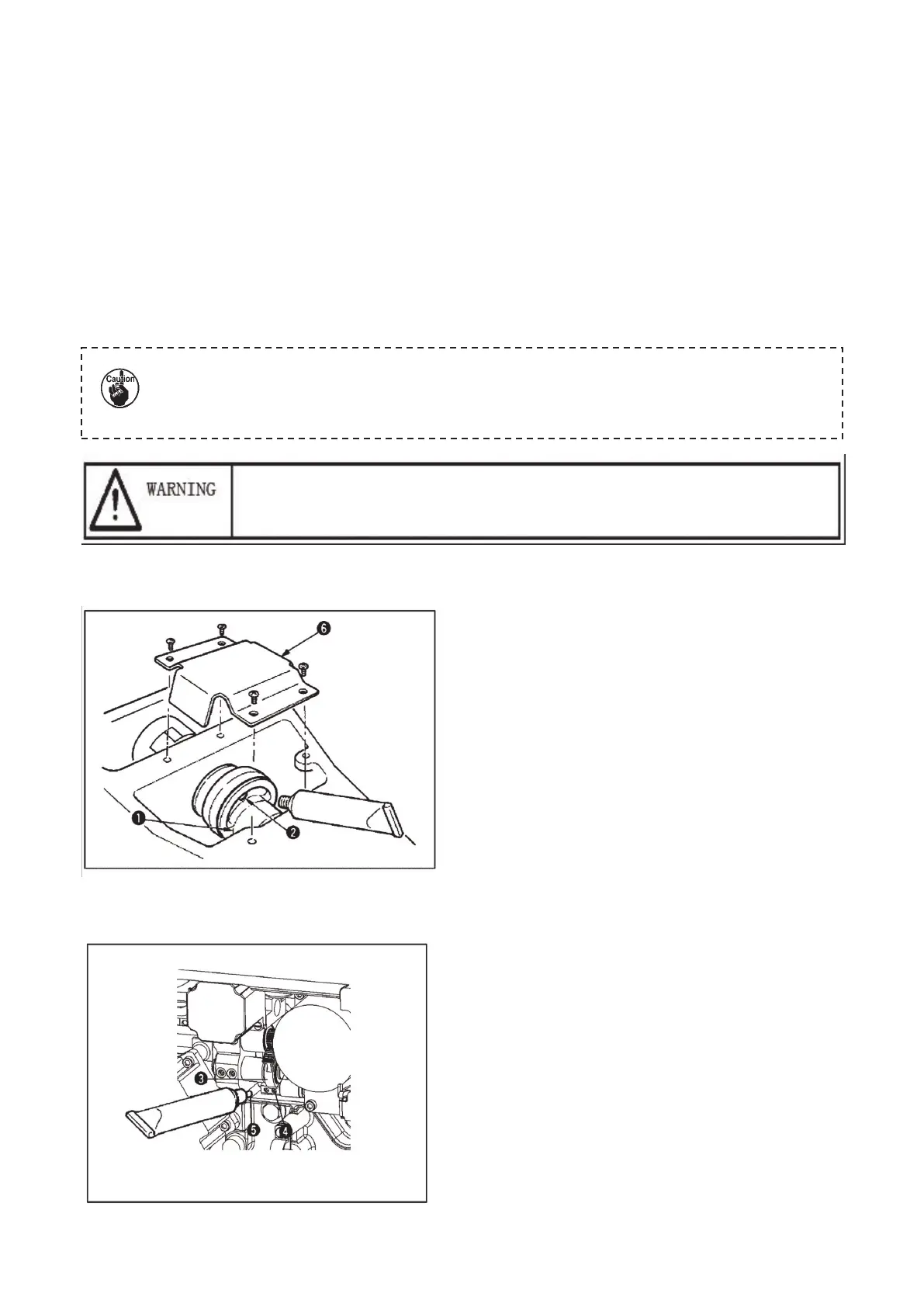

1) Replenishing the eccentric cam section with grease
1. Open the upside cover and remove the grease cover
(6).
2. Remove rubber cap (2) located on the side of eccentric
cam (1). Then replenish there with grease.
2) Replenishing the oscillator pin section with grease
1. Tilt the machine head and remove the grease cover (7).
2. Remove setscrew (4) in oscillator gear (3), screw in the
grease tube attached joint (5) supplied as accessories,
and replenish there with the grease.
3. Securely tighten setscrew (4) which has been removed
after replenishing with the grease.
