11
TEXI Catenaccio operation manual

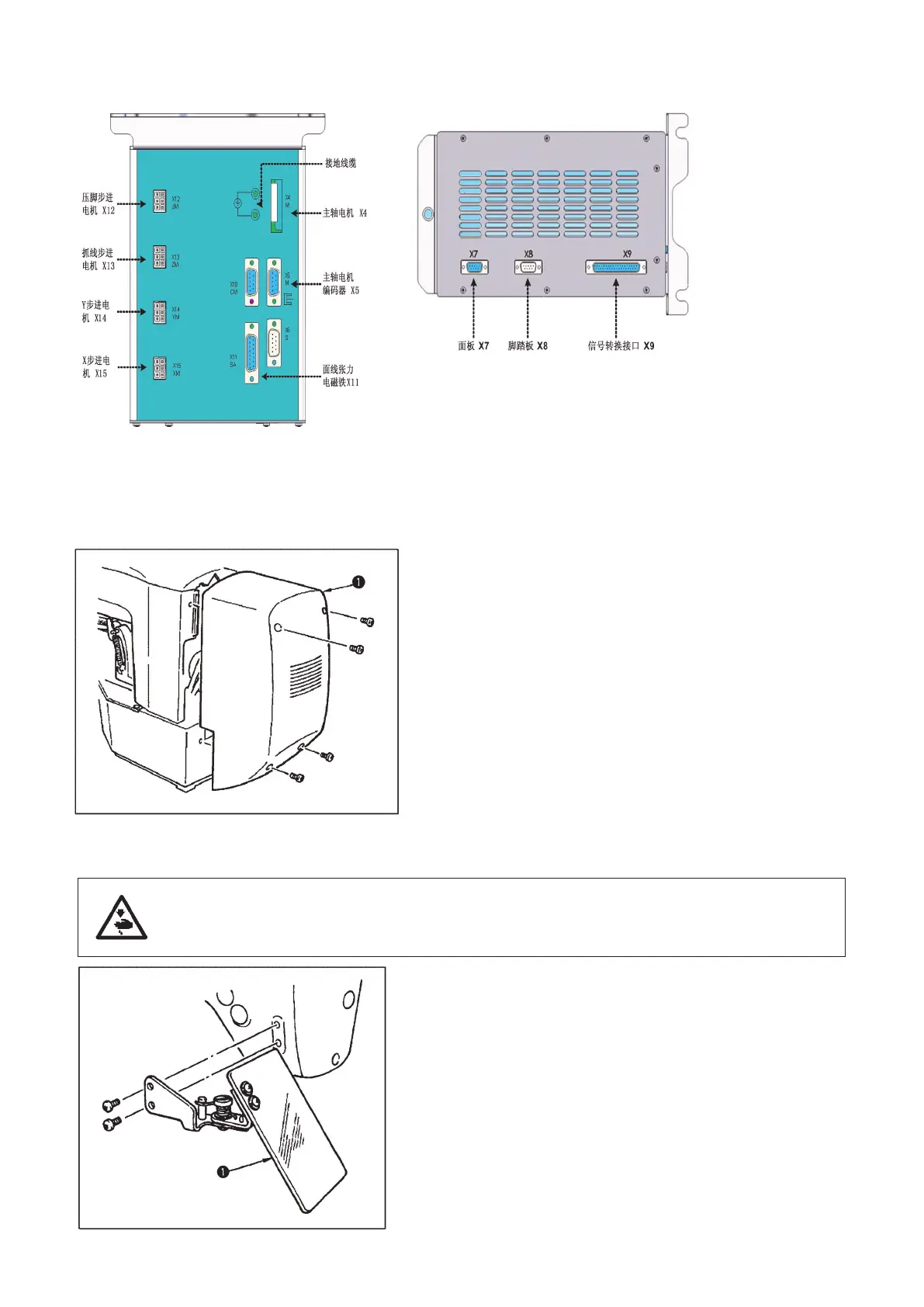

10. Connecting the cord
Please let the motor cable, the signal line of the machine head connect with the electronic control box according to online
identity, make sure the connection is correct, there is no omission.
11. Installing the motor cover
12. Installing the eye protection cover
Install motor cover (1) on the machine main unit with screws
supplied with the machine as accessories.
WARNING: Be sure to attach this cover to protect the eyes from the disperse of needle breakage.
The eye shield in the accessories box should been installed
in the head on the left.
To Next Page
