Texi Catenaccio User Manual

28
TEXI Catenaccio operation manual

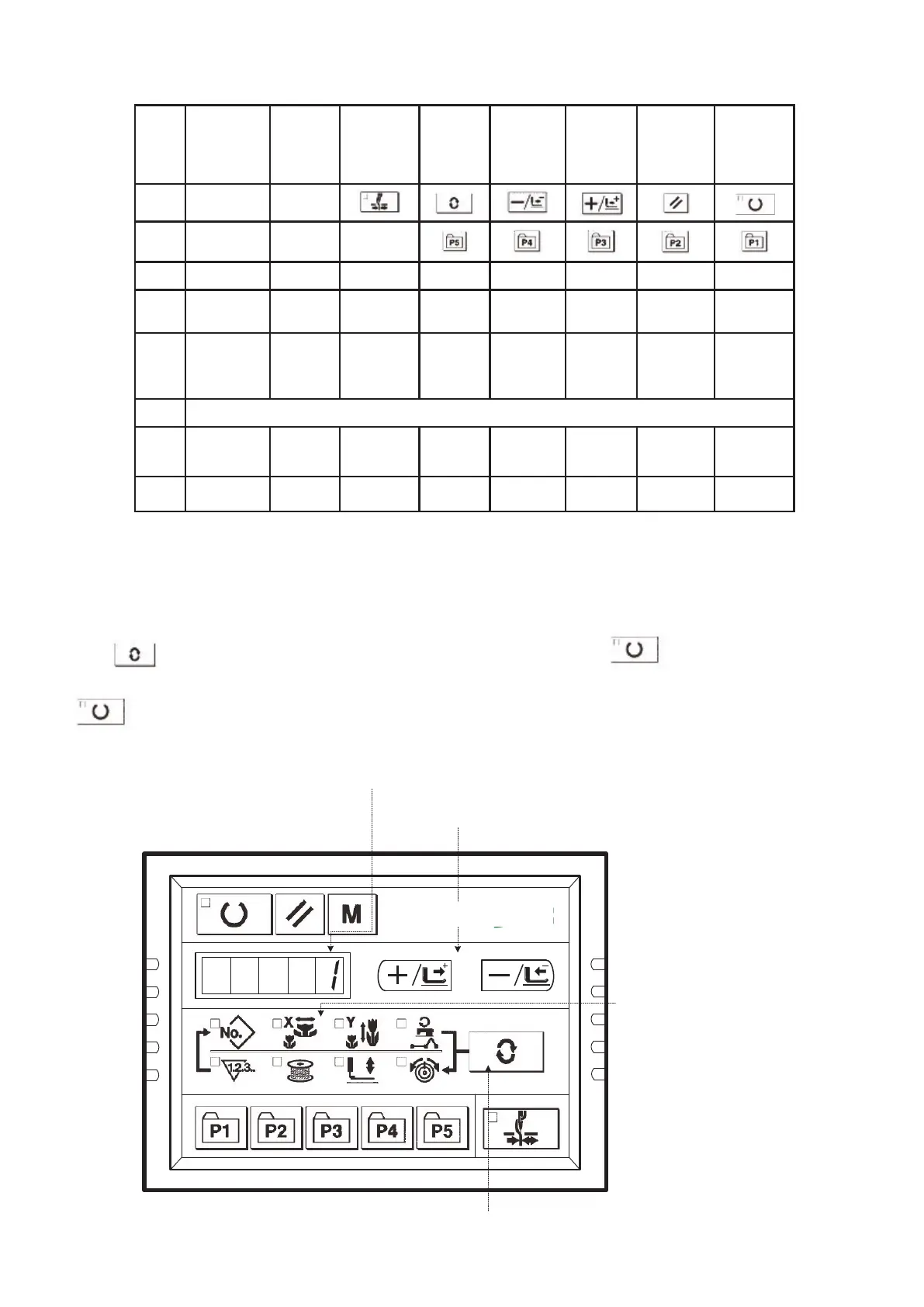

The display content for each inputted No.
Input
No.
Pattern
N0. LED
X Scale
LED
Y Scale
LED
Speed
LED
Counter
LED
Winding
LED
Presser
-lowering
LED
Solenoid
LED
1 / /
2 / /
3 / / / / / / / /
4
Pedal
Level 0
Pedal
Level 1
Pedal
Level 2
/ / / / /
5
Presser
motor
origin
sensor
Y motor
origin
sensor
X motor
origin
sensor
Thread-
catching
origin
sensor
Thread-
trimming
sensor
Thread-
catching
sensor
/
/
6 Main-shaft angle display
7
Main-shaft
motor Z
phase
/ / / / / / /
8 / / / / /
Head tilt
switch
/ /
11-2. CP-2 Check X/Y Motor/Origin Sensor
Display the statuses of X/Y origin sensor, operation of searching origin and step operation of X/Y motor.
(1). Preparation
Press to have access to CP-2, and system displays “1” at screen. Then press to search the origins of X/Y
motors. At that time, the presser goes down and the Sewing LED is on. (User can also perform step 2 directly without pressing
).
(2). Operation
Hint: The status of X/Y origin sensor: “0” or “1”.
Press Selection button to shift the selection
status of X origin sensor or Y origin sensor
Press these two buttons to make the selected X/Y motor move in +/-
direction with 0.1mm as each step.
Hint: the selection status of X/Y
origin sensor:
X Scale LED is on: X origin sensor
Y Scale LED is on: Y origin sensor
