3) If any of these voltages are not present or
are below a 10% tolerance, replace the
PCB3 (WK-5548). Refer to section 12.3.3.
5.3 Verification of the Cooling
Fan, FAN1, Drive Circuitry
CAUTION
Before performing any portion of the procedure
below, make certain the unit is placed in the initial
set up condition as described in section 11.4.1
"Preparation".
_
1) Verify the condition of the cooling fan, FAN1,
using a DC voltmeter. (The capability of the
voltmeter should be more than 50VDC.) Using
a DC voltmeter, measure between PIN1 (Posi-
tive [+]) and PIN2 (
Negative [-]) of CN11 on
P
CB3 (WK-5548). The location of connector
CN11 of PCB3 is indicated in Figure 11-12.
When you measure the above voltage, do not
remove the connector. Conduct the measure-
ment while the connector plug and receptacle
are still connected.

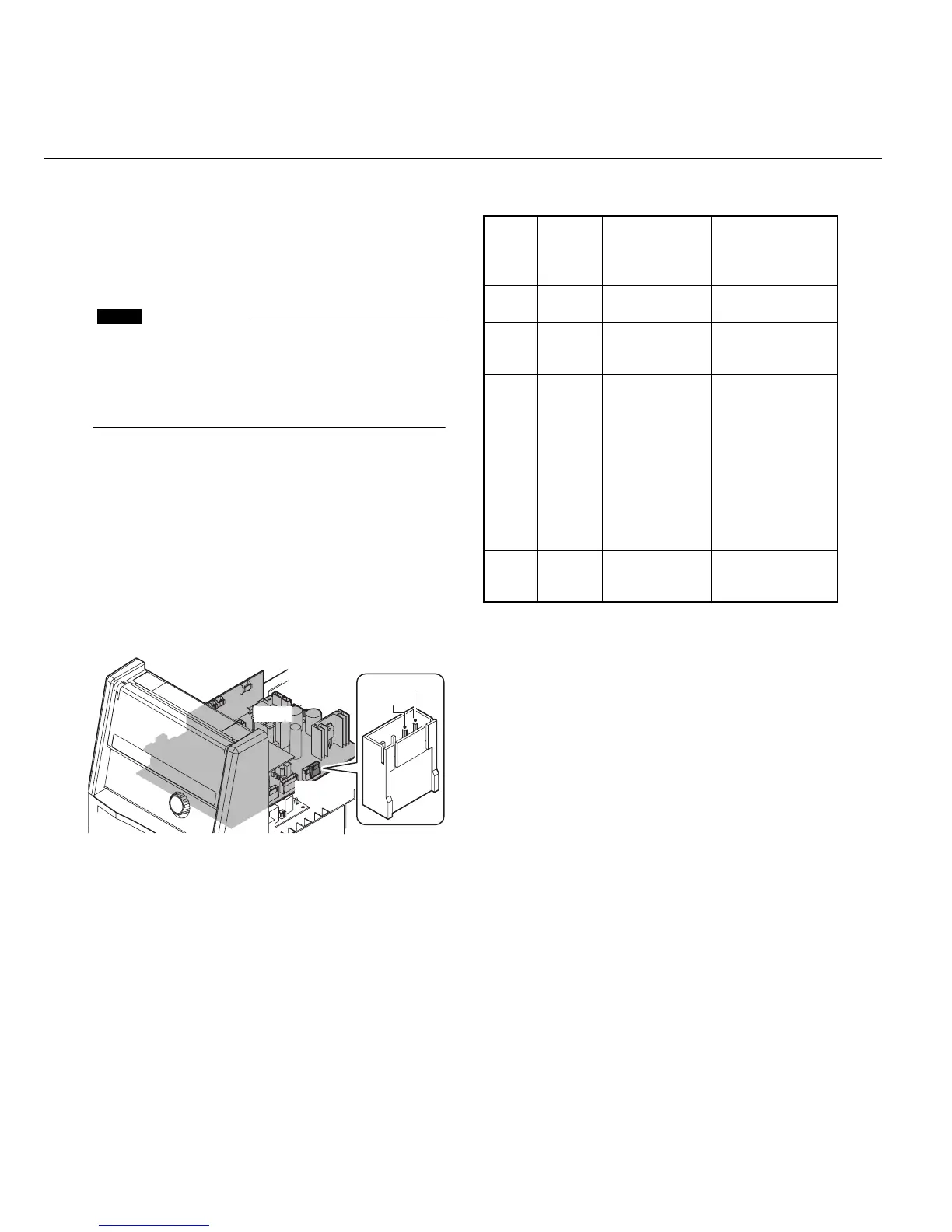

Figure 11-12: Verification of the FAN1
2) Using the measurement taken above, follow
the chart below for possible failure modes.
Table 11-3: Verification of the FAN1
At the time of a low output and standby,
fan rotation becomes slow, which makes
exact voltage measuring impossible.
When verifying the voltage, confirm that the
AC input voltage remain within the operating
range of the unit. (The AC input does not
drop below 180VAC).
PCB3
CN11
pin1
pin2
FAN1
Status
Voltage
measurement.
(PIN1-PIN2 of
CN11 on PCB3)
Remedy
Case 1 Rotating
DC 18 ∼ 25V
FAN1 drive circuit
is normal.
Case 2 Rotating Below DC 18V
Replace PCB3.
Refer to section
12.3.3.
Case 3 Inactive Below DC 18V
Replace PCB3.
Refer to section
12.3.3.
4
Perform
"Verification of the
Power Supply
Voltage".
Refer to section
11.5.2.
Case 4 Inactive
DC 18 ∼ 25V
Replace the FAN1.
Refer to section
12.3.21.
To Next Page
