300/400TS and 300/400S 12 MAINTENANCE
12 – 7

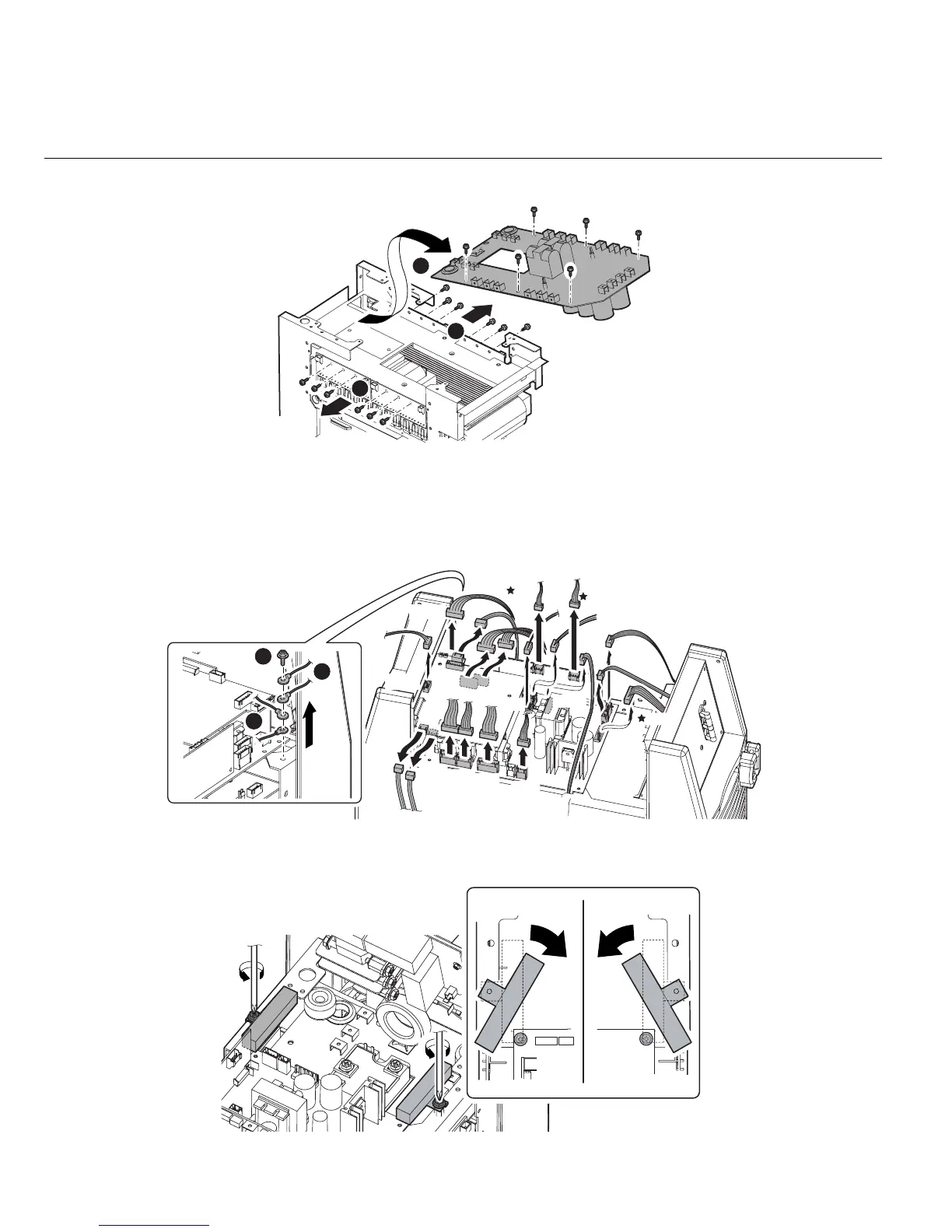

8) Remove the 18 screws and remove the PCB1 (WK-5493).
3.2 PCB2 (WK-5597) 
1) Remove the Side Panel. [Reference page : 11-1]
2) Remove the screw and then disconnect the four ground terminals. Disconnect the 19 connectors.
3) Loosen two screws. Rotate the Resistor (R7 and R8) to expose two screws on PCB3 (WK-5548).
2
1
1
1
2
2
CN1
CN3
CN2
CN17
CN21
CN9
CN8
CN7
CN7
CN4
CN21
CN8
CN22
CN23
CN1
CN11
CN19
CN20
CN9
