300/400TS and 300/400S 12 MAINTENANCE
12 – 30

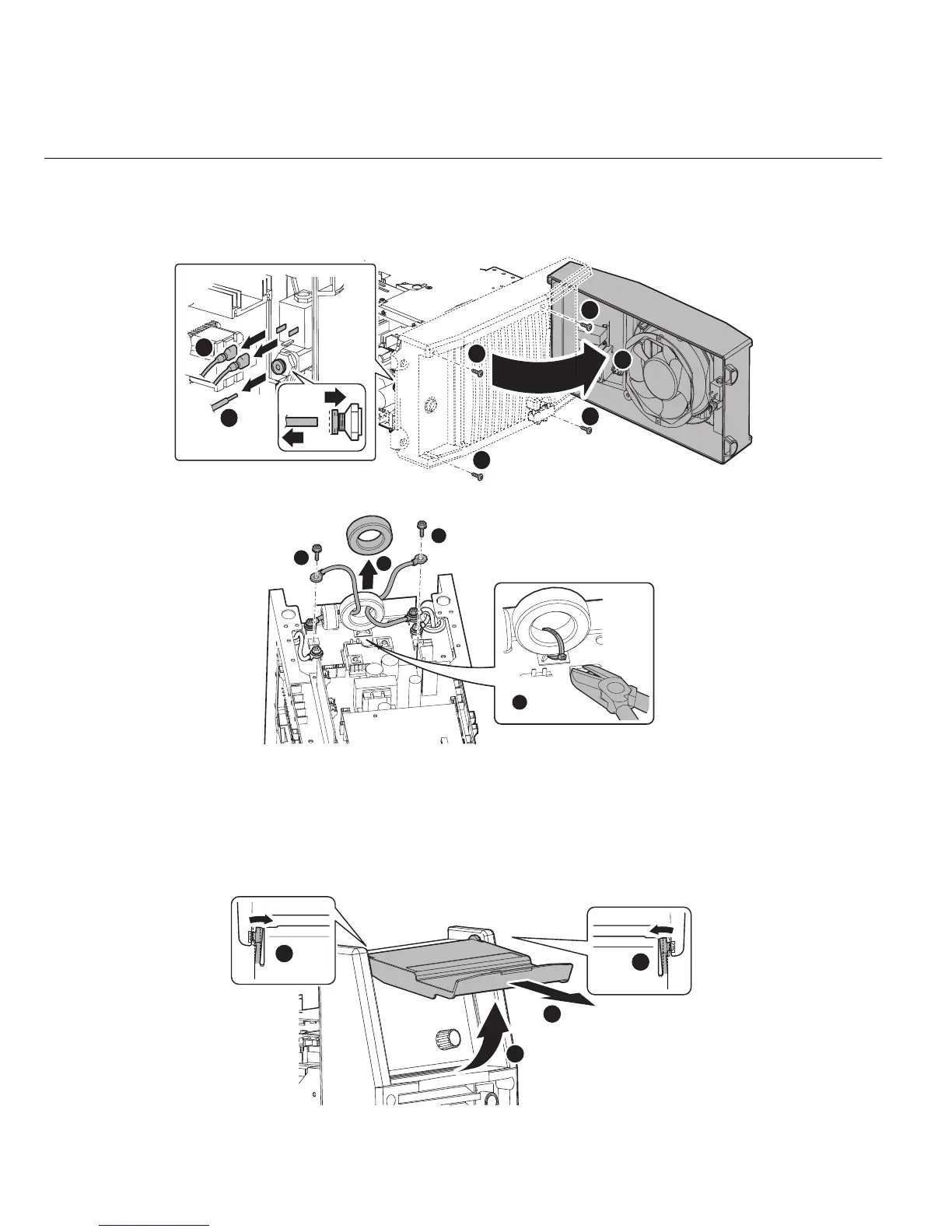

3.31 Ring Core (L1)
1) Remove the Side Panel. [Reference page : 11-1]
2) Remove the Nylon Hose and two terminals. Remove the four screws and open the Rear Panel.
3) Remove the two screws and two terminals. Cut the snap band and remove the Ring Core (L1).
3.32 Ring Core (L105)
1) Remove the Side Panel. [Reference page : 11-1]
2) Remove the Protection Cover.
2
1
1
2
3
3
3
3
4
2
3
1
1
1
2
2
3
To Next Page
