Thermal Arc ARCMASTER 400TS - Coupling Coil (CC1) * 300;400 TS Only; Reactor (FCH1)

300/400TS and 300/400S 12 MAINTENANCE
12 – 20

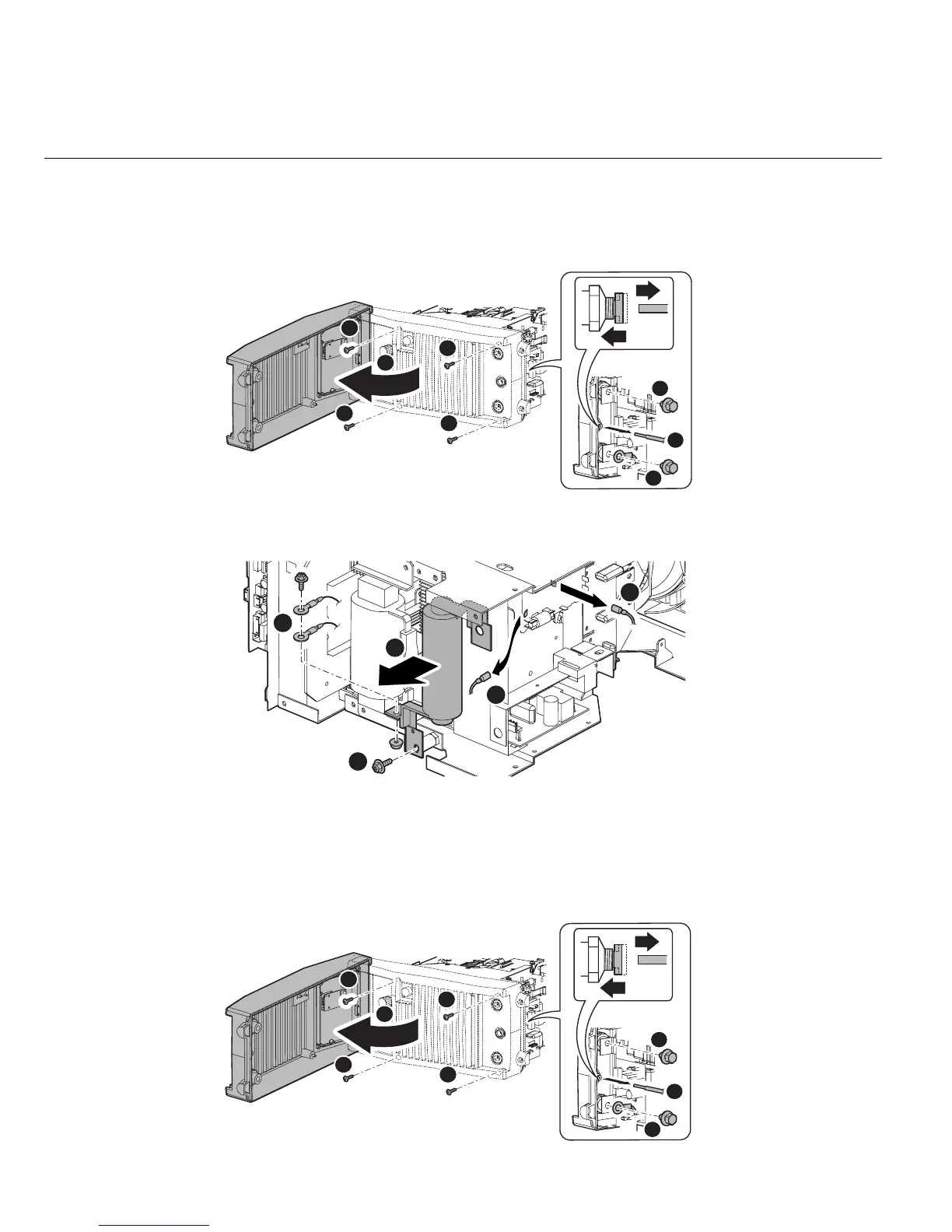

3.17 Coupling Coil (CC1)  *300/400TS only
1) Remove the side cover. [Reference page : 11-1]
2) Remove the Nylon Hose. Remove the two bolts, and one terminal.
Remove the four screws and open the Front Panel.
3) Remove the two terminals. Remove one screw, one nut and two terminals.
Remove one screw and detach the Coupling Coil (CC1).
3.18 Reactor (FCH1) 
1) Remove the Side Panel. [Reference page : 11-1]
2) Remove the Nylon Hose. Remove the two bolts, and one terminal.
Remove the four screws and open the Front Panel.
3
3
3
3
4
2
1
1
2
2
1
1
2
3
4
3
3
3
3
4
2
1
1
2
2
